Booting the Switch
After the local terminal is connected, turn on power. The switch then goes
through power-on self-test (POST). POST runs every time the switch is
started and checks hardware components, to determine if the switch is
operational before completely booting. If the system detects a critical
problem, the boot process stops. If POST passes successfully, a valid
executable image is loaded into RAM. POST messages are displayed on the
terminal and indicate test success or failure.
The boot process runs for approximately 40-45seconds.
When the boot process completes, the following LEDs are lit, as shown in
Figure 3-2:
•Power
• Status
• Fan (should be green)
• RPS (if it is being used)

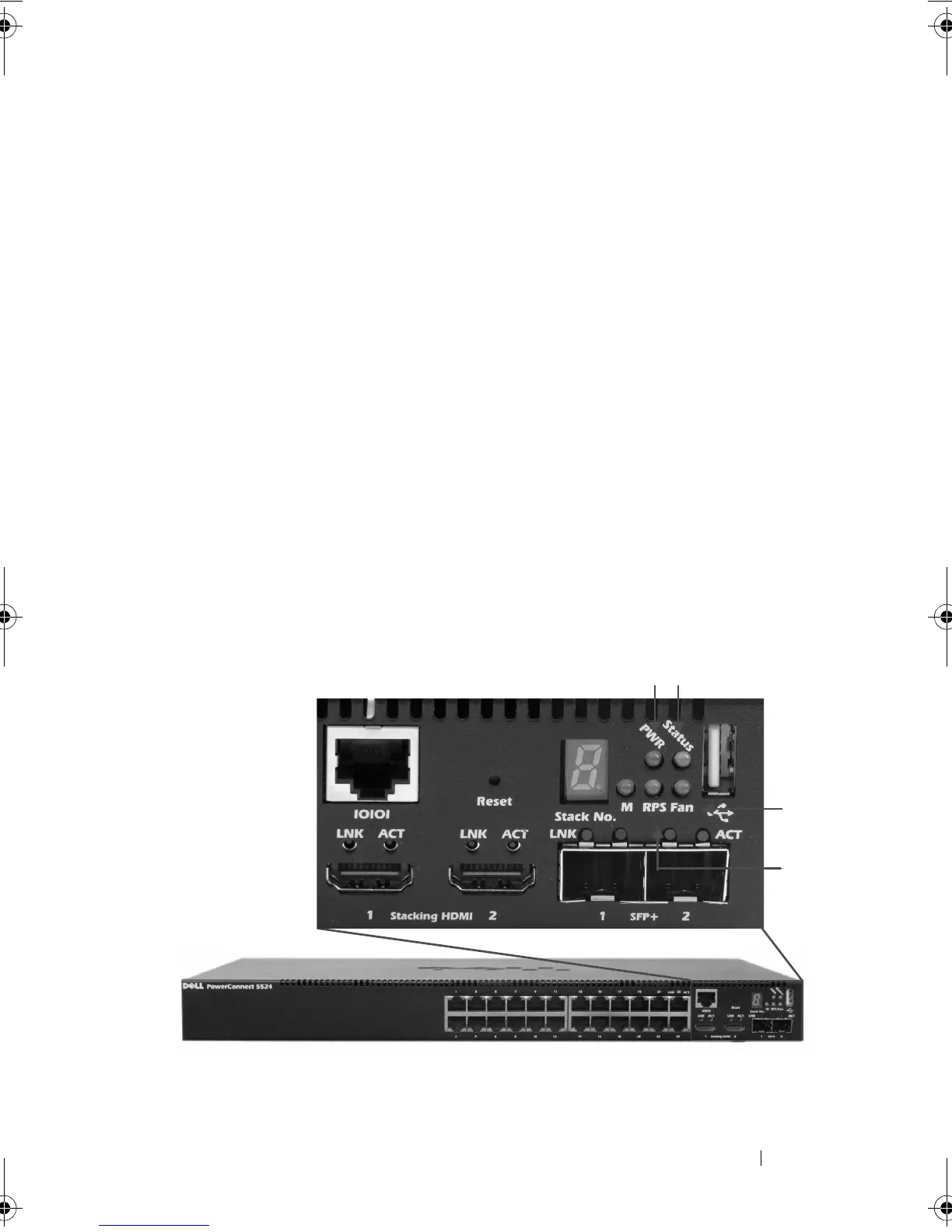

Figure 3-2. Initial LEDs
Power Status
Fan
RPS
ContaxGS.book Page 15 Friday, August 20, 2010 1:53 PM

Dell POWERCONNECT 5524 Specifications

General

MAC address table	16000 entries
Jumbo frames support	Yes
Packet buffer memory	12 MB
Maximum data transfer rate	10 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Number of VLANs	4000
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Dimensions (WxDxH)	440 x 255 x 432 mm
Connectivity technology	Wired
Switch type	Managed
Switch layer	L3
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM
Flash memory	16 MB
Stackable	-
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	3330 g
