Dell PowerEdge R410 User Manual

About Your System 21
Diagnostic Lights (Optional)
The four diagnostic indicator lights on the system front panel display error
codes during system startup. Table 1-1 lists the causes and possible corrective
actions associated with these codes. A highlighted circle indicates the light is
on; a non-highlighted circle indicates the light is off.
NOTE: The diagnostic LEDs are not present when the system is equipped with an
LCD display.

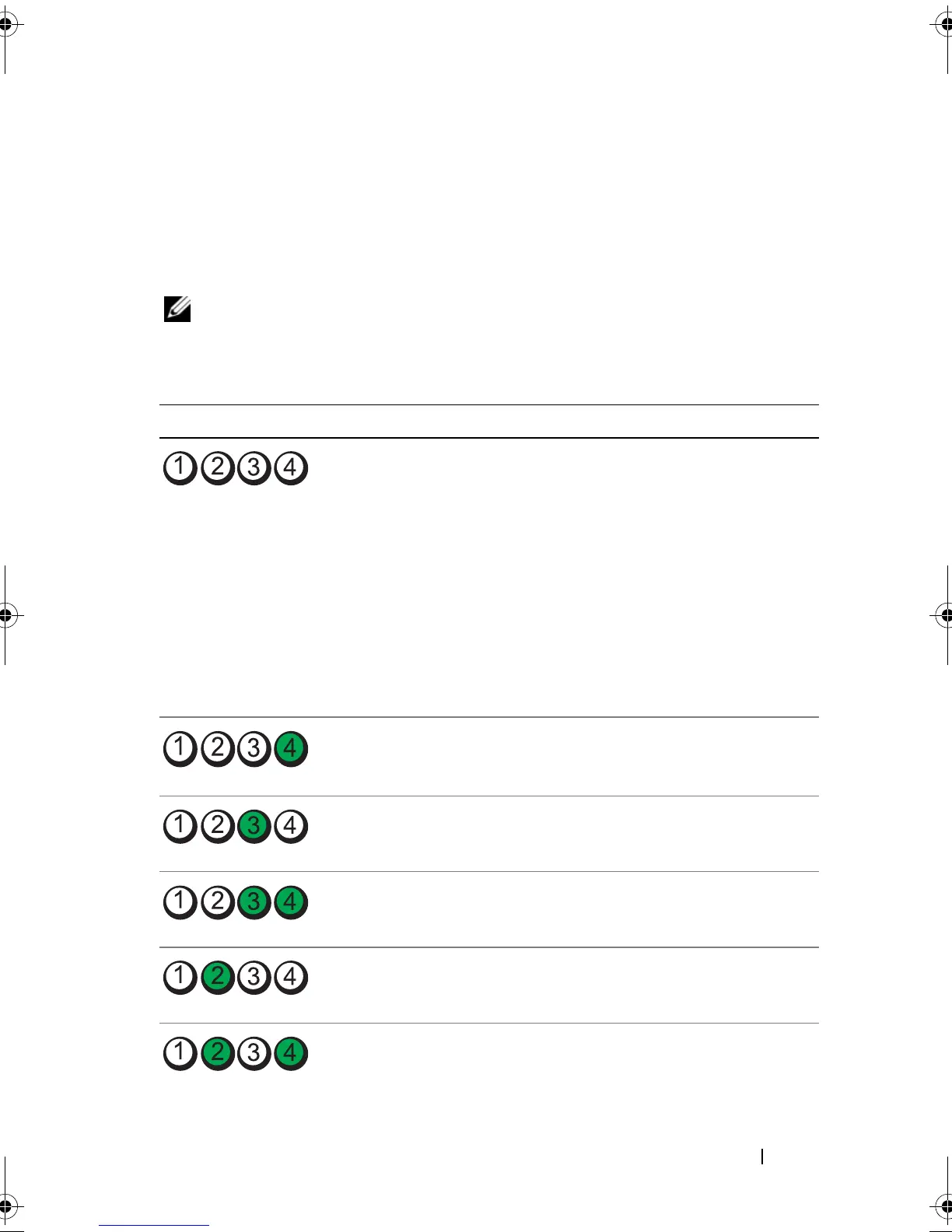

Table 1-1. Diagnostic Indicator Codes (Optional)
Code Causes Corrective Action
The system is in a normal
off condition or a possible
pre-BIOS failure has
occurred.
The diagnostic lights are
not lit after the system
successfully boots to the
operating system.
Plug the system into a working
electrical outlet and press the
power button.
The system is in a normal
operating condition after
POST.
Information only.
BIOS checksum failure
detected; system is in
recovery mode.
See "Getting Help" on page 167.
Possible processor failure. See "Troubleshooting the
Microprocessors" on page 160.
Memory failure. See "Troubleshooting System
Memory" on page 152.
Possible expansion card
failure.
See "Troubleshooting Expansion
Cards" on page 159.
Possible video failure. See "Getting Help" on page 167.
book.book Page 21 Tuesday, March 31, 2009 5:26 PM

Dell PowerEdge R410 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF9
Processor cache	4 MB
Processor cores	4
Processor model	E5504
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	15
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	3.5 \
HDD capacity	250 GB
Optical drive type	DVD-ROM
Total storage capacity	500 GB
Maximum storage capacity	8 TB
Memory slots	8x DIMM
Internal memory	8 GB
Memory clock speed	1066 MHz
Internal memory type	-
Maximum internal memory	128 GB
Memory layout (slots x size)	4 x 2 GB
Maximum graphics card memory	8 MB
Graphics card	G200eW
Networking features	Gigabit Ethernet
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	480 W
Compatible operating systems	Microsoft SQL Server 2008 R2/Windows Small Business Server 2008/Essential Business Server 2008/Server 2008 SP2, x86/x64/Server 2008 R2/HPC Server 2008; Novell SUSE Linux Enterprise Server; Red Hat Enterprise Linux.
Chassis type	Rack (1U)
Processor ARK ID	40711

Weight and Dimensions

Depth	430 mm
Width	630 mm
Height	40 mm
