23" LCD Color Monitor Dell SP2309Wc
20
4. Input/Output Specification
4.1 Input Signal Connector
VGA Connector:
Pin No. Description Pin No. Description
1. Red Video 9. DDC +5V
2. Green Video 10. GND-sync
3. Blue Video 11. GND
4. GND 12. DDC data
5. Self-test 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC clock
8. B-Ground

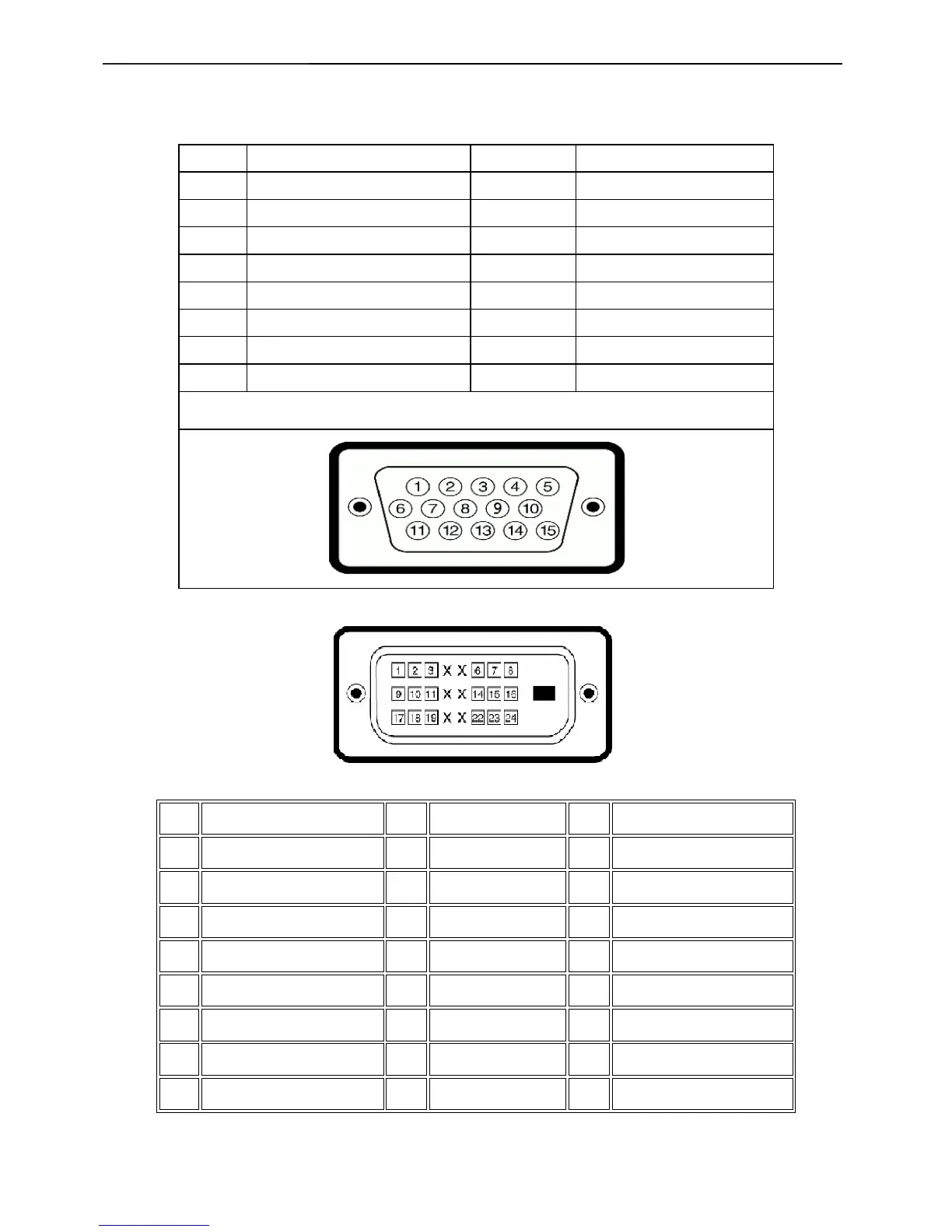

VGA Connector layout
DVI Connector:
Note: Pin 1 is at the top right.
Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1
T.M.D.S. Data 2-
9 TMDS RX1- 17 TMDS RX0-
2
T.M.D.S. Data 2+
10 TMDS RX1+ 18 TMDS RX0+
3
TMDS Ground
11
TMDS Ground 19 TMDS Ground
4 Floating 12 Floating 20 Floating
5 Floating 13 Floating 21 Floating
6
DDC Clock 14 +5V Power
22 TMDS Ground
7
DDC Data 15
Self test 23 TMDS Clock+
8
Floating
16 Hot Plug Detect
24 TMDS Clock-
