Dell SP2309Wc User Manual

23" LCD Color Monitor Dell SP2309Wc
21

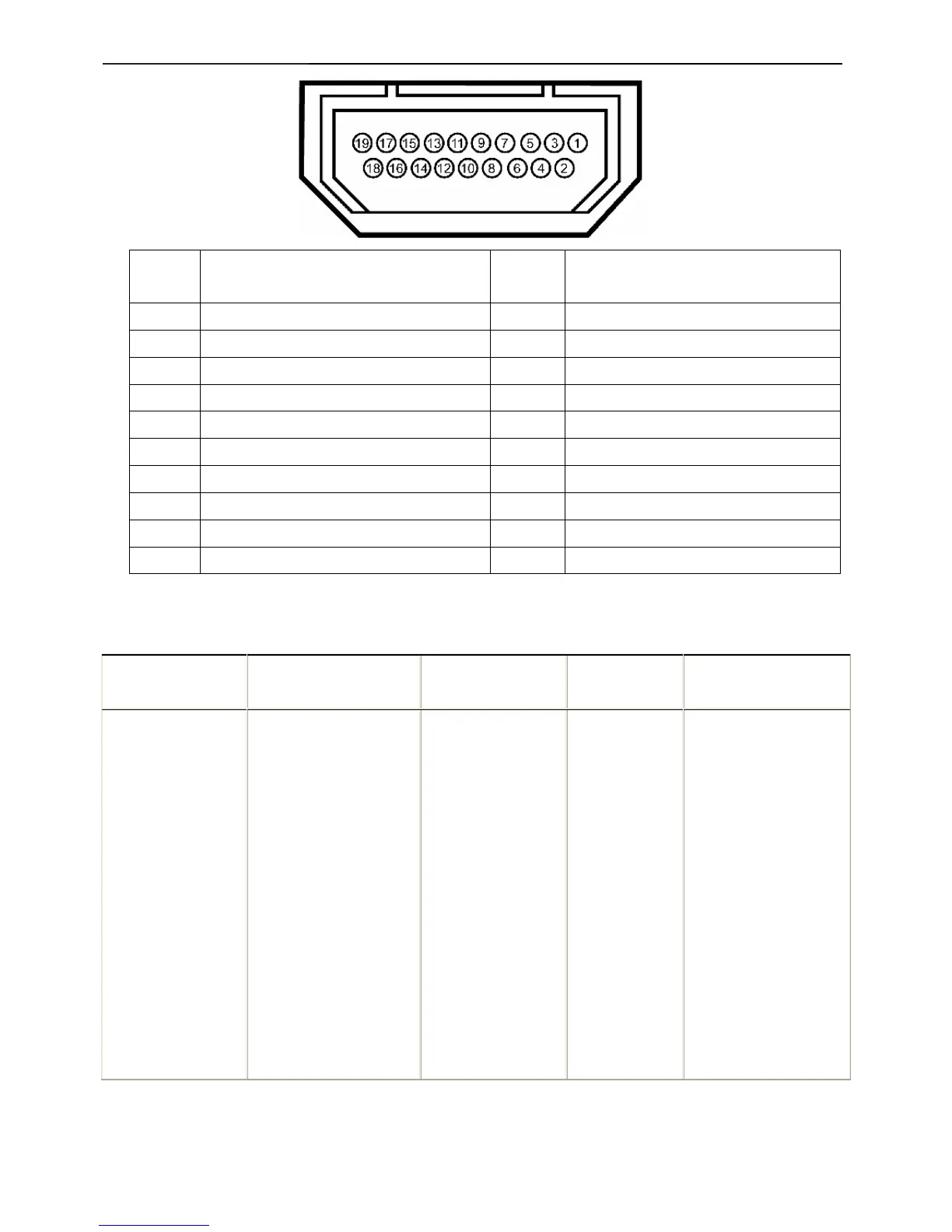

Pin
Number
19-pin Side of the Connected Signal
Cable
Pin
Number
19-pin Side of the Connected Signal
Cable
1
T.M.D.S. Data 2-
11
T.M.D.S. Clock Shield
2
T.M.D.S. Data 2 Shield
12
T.M.D.S. Clock -
3
T.M.D.S. Data 2+
13
CEC
4
T.M.D.S. Data 1+
14
Reserved(N.C. on device)
5
T.M.D.S. Data 1 Shield
15
SCL
6
T.M.D.S. Data 1-
16
SDA
7
T.M.D.S. Data 0+
17
DDC/CEC Ground
8
T.M.D.S. Data 0 Shield
18
+5V Power
9
T.M.D.S. Data 0-
19
Hot Plug Detect
10
T.M.D.S. Clock +
4.2 Factory Preset Display Modes
Display Mode Horizontal Frequency (kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1680 x 1050 65.3 60.0 146.3 -/+
VESA, 1680 x 1050 64.7 59.9 119.0 +/-
VESA, 1920 x 1200 74.04 59.9 154.0 +/-
VESA, 2048 x 1152 70.99 59.9 156.75 +/-
