Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display

Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor

installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

Universal Serial Bus (USB) Interface

This section gives you information about the USB ports that are available on the left side of your monitor.

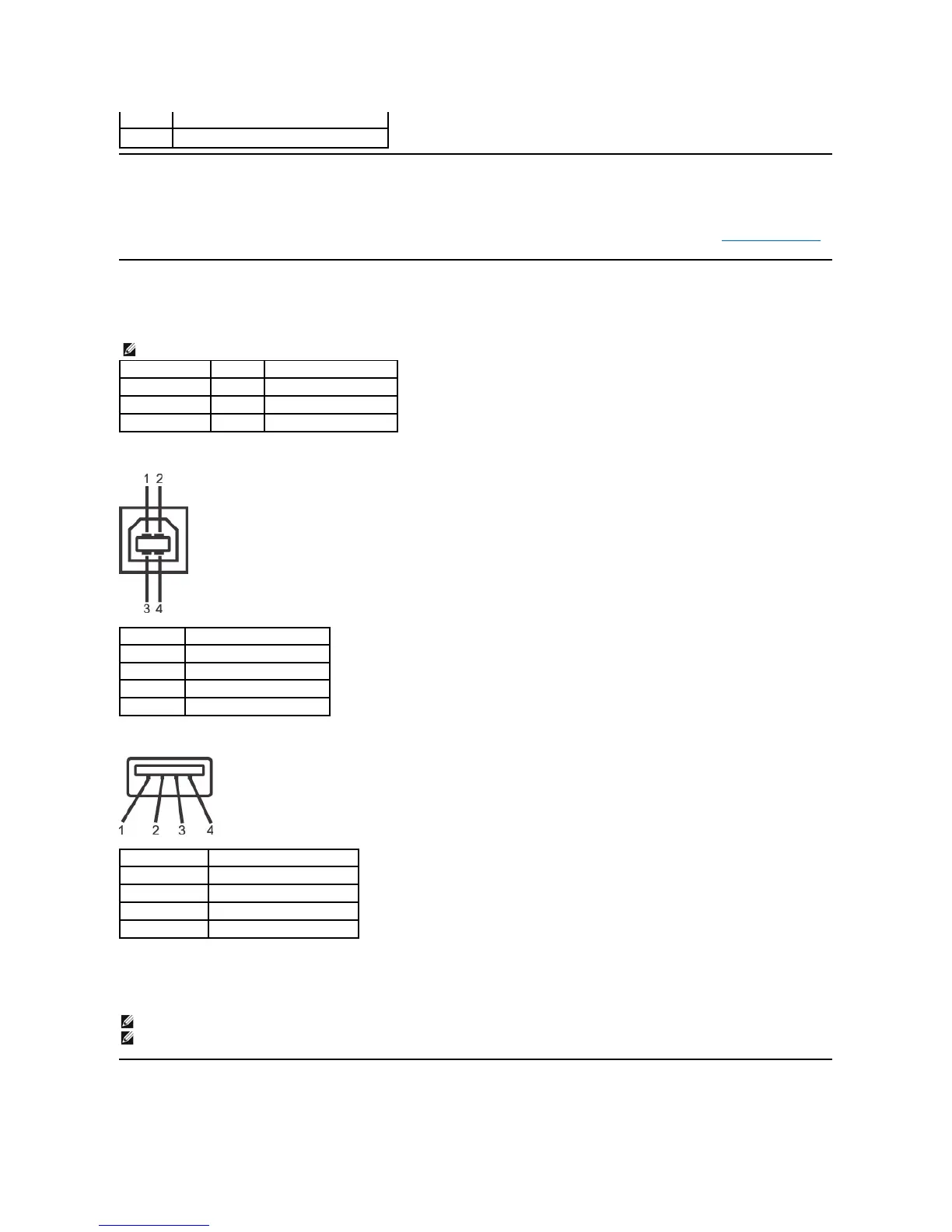

USB Upstream Connector

USB Downstream Connector

USB Ports

l 1 upstream - back

l 4 downstream - 2 on back; 2 on left side

LCD Monitor Quality and Pixel Policy

DP_PWR Return

+3.3V DP_PWR

NOTE: This monitor supports High-Speed Certified USB 2.0 interface.

Transfer speed

Data Rate

Power Consumption

High speed

480 Mbps

2.5W(Max.,eachport)

Full speed

12 Mbps

2.5W(Max.,eachport)

Low speed

1.5 Mbps

2.5W(Max.,eachport)

Pin Number

4-pin Side of the Connector

DMU

VCC

DPU

GND

Pin Number

4-Pin Side of the Signal Cable

VCC

DMD

DPD

GND

NOTE:USB2.0functionalityrequiresaUSB2.0-

capablecomputer

NOTE:

The monitor's USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may

take a few seconds to resume normal functionality.
