Dell Vostro 3750 - Installing the PCH Heatsink

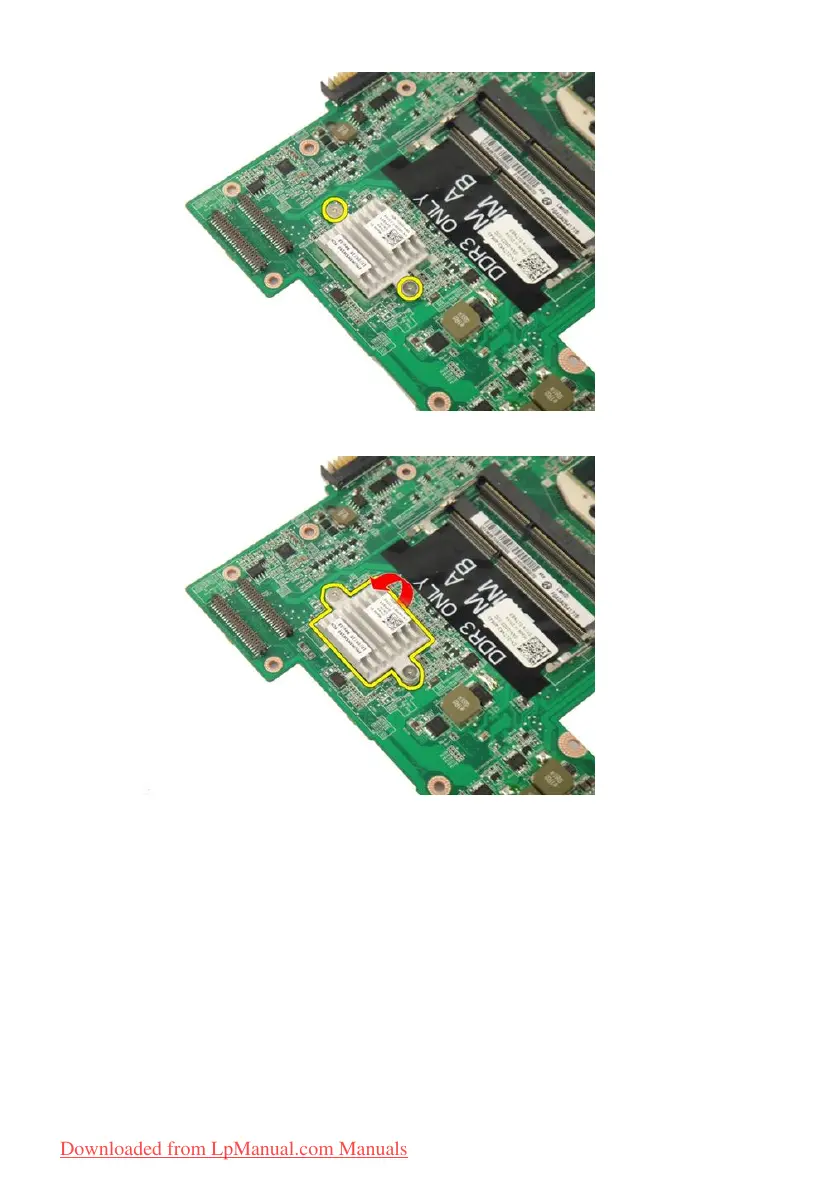

16. Lift the heatsink and remove it from the system board.
Installing The PCH Heatsink
1. Tighten the screws that secure the PCH heatsink.
2. Install the heatsink .
3. Install the system board .
4. Install the LED board .
5. Install the ExpressCard cable .
6. Install the system fan .
104
