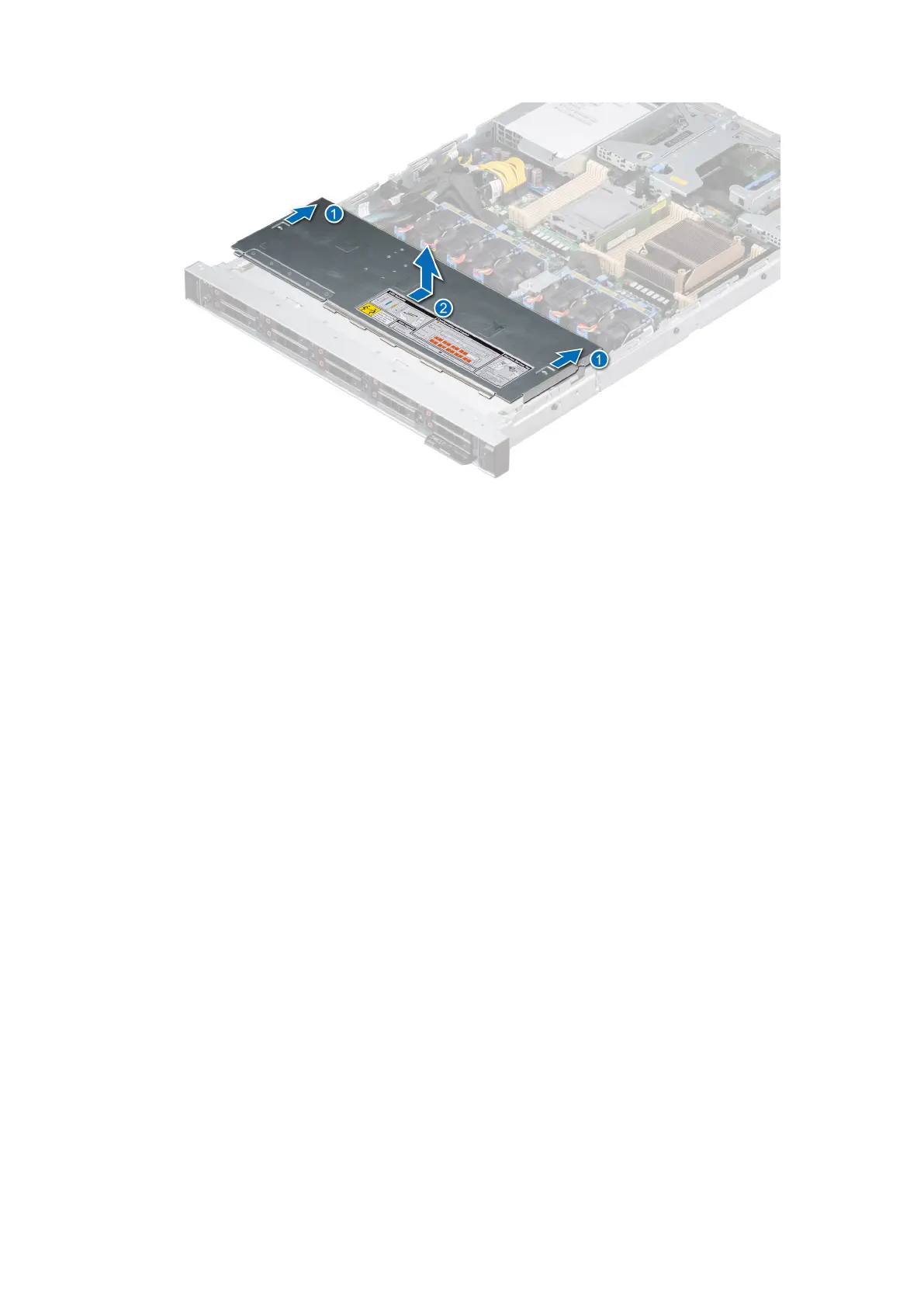

Figure 16. Removing the drive backplane cover
Next steps
Replace the backplane cover.

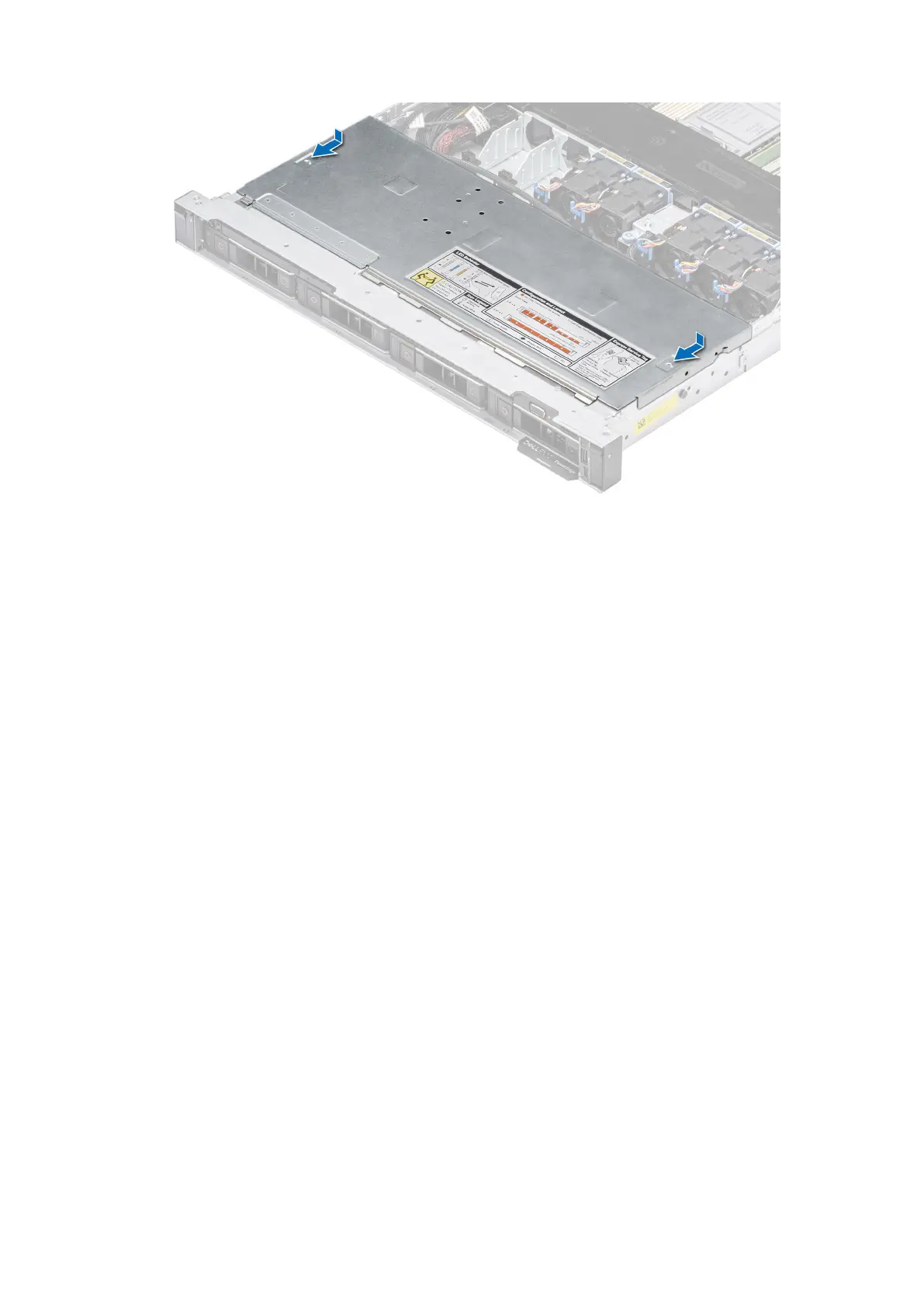

Installing the drive backplane cover
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align the backplane cover with the guide slots on the system.
2. Slide the backplane cover toward the front of the system until the backplane cover fits into place.
32
Installing and removing system components
