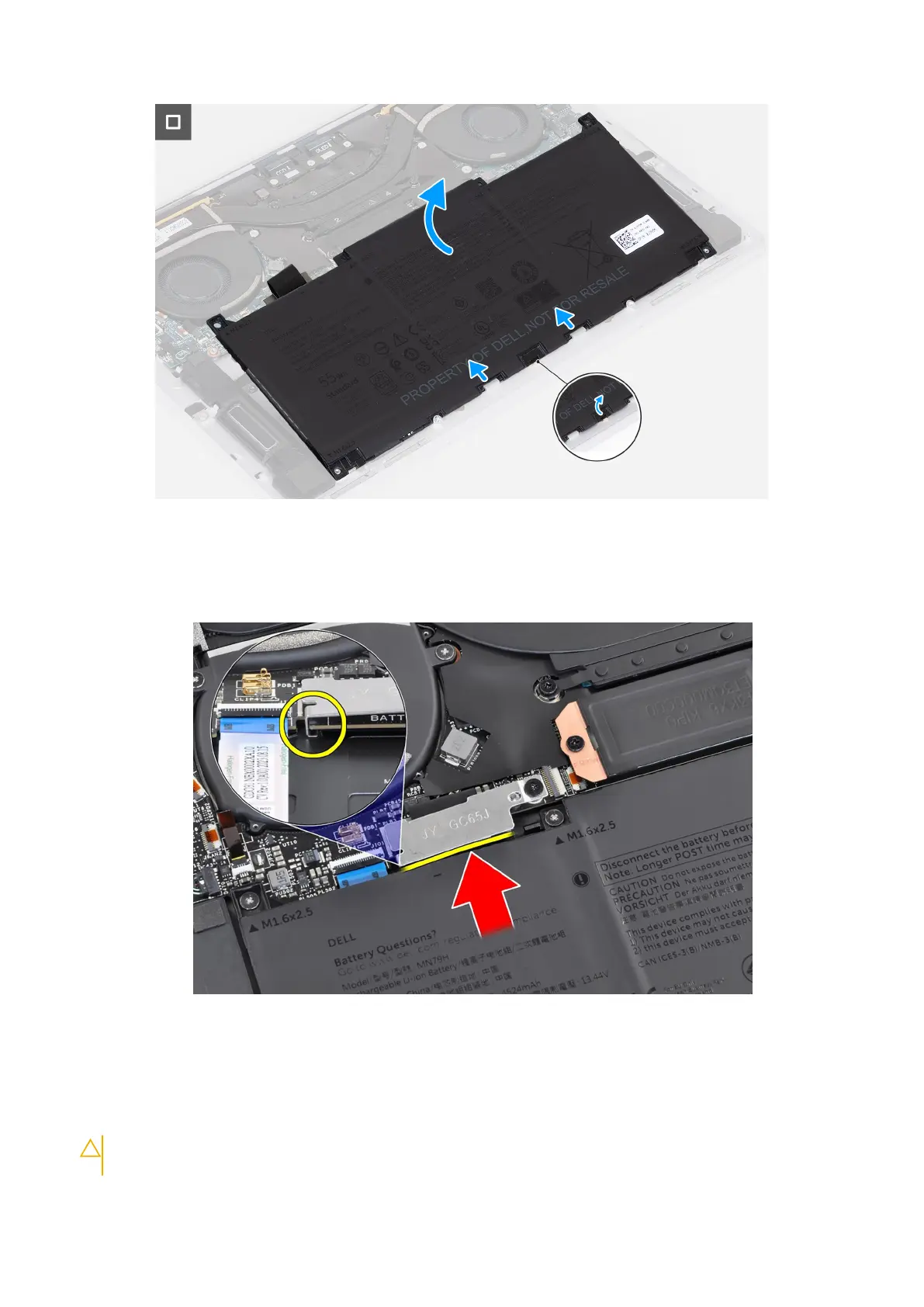

Figure 19. Removing the battery
Steps
1. Loosen the captive screw (M1.6x2) that secures the battery-connector bracket to the system board.
2. Unhook and lift the battery-connector bracket off the system board.
Figure 20. Battery-connector bracket
3. Use the pull tab on the battery power cable to disconnect the battery cable from the battery connector.
4. Remove the six screws (M1.6x2.5) that secure the battery to the palm-rest and keyboard assembly.
5. Use the pull tab to lift the battery slightly from its top edge. This action releases the battery from the two hooks that are
located near the bottom edge of the palm-rest and keyboard assembly.
CAUTION:
Do not lift the battery at more than an angle of 30 degrees to avoid damage to the battery and the
palm-rest and keyboard assembly.
Removing and installing Field Replaceable Units (FRUs) 39
