About this task

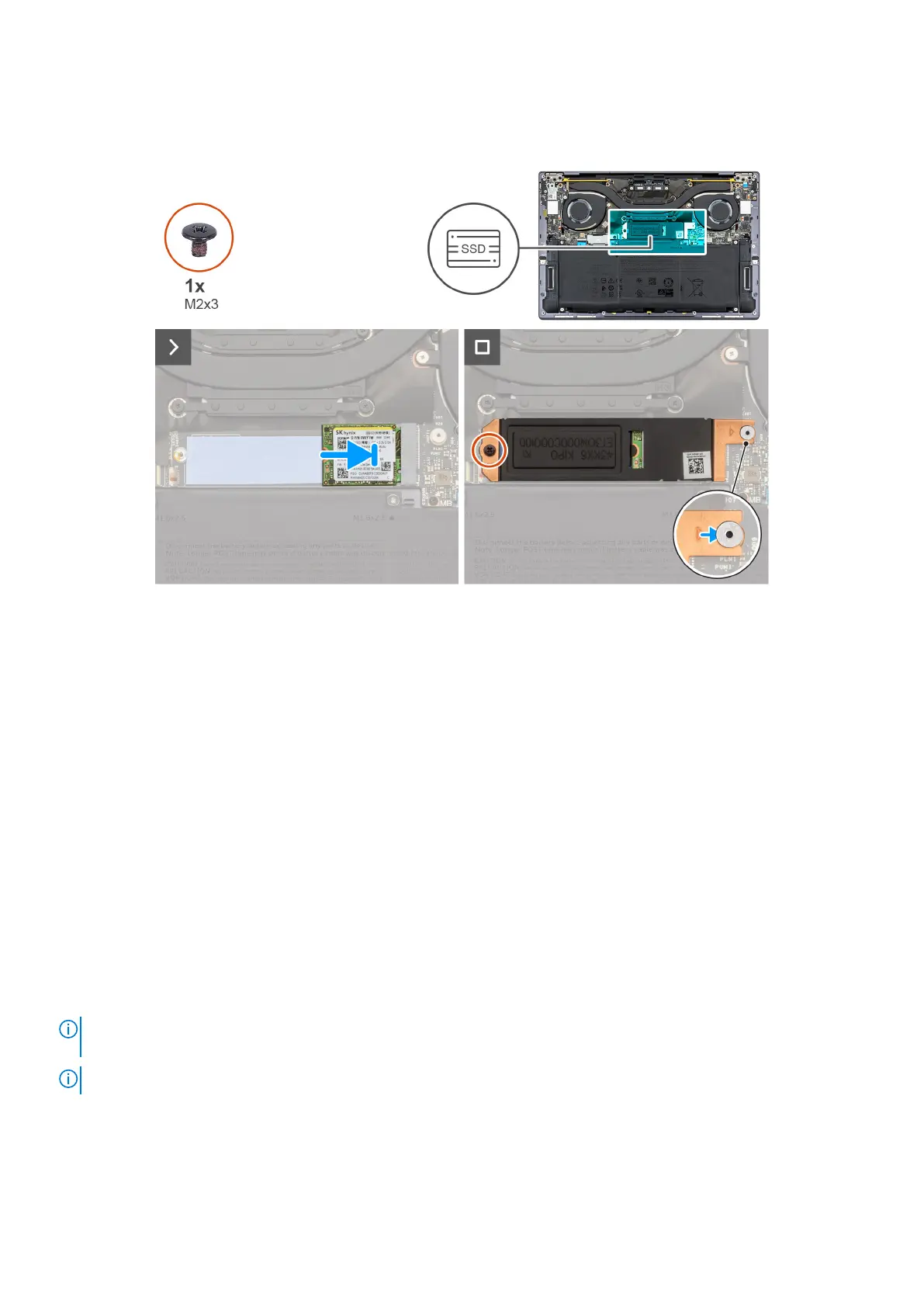

The following images indicate the location of the M.2 2230 solid-state drive and provide a visual representation of the
installation procedure.
Figure 25. Installing the M.2 2230 solid-state drive
Steps
1. Align the notch on the M.2 2230 solid-state drive with the tab on the solid-state drive slot.
2. Slide the M.2 2230 solid-state drive into the solid-state drive slot.
3. Insert the tab of the M.2 solid-state drive shield into the peg on the system board.
4. Replace the screw (M2x3) that secures the M.2 solid-state drive shield to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2 2280
solid-state drive.
NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive.
The following images indicate the location of the M.2 2280 solid-state drive and provide a visual representation of the removal
procedure.
44
Removing and installing Field Replaceable Units (FRUs)
