Dell XPS 8950 User Manual

Steps

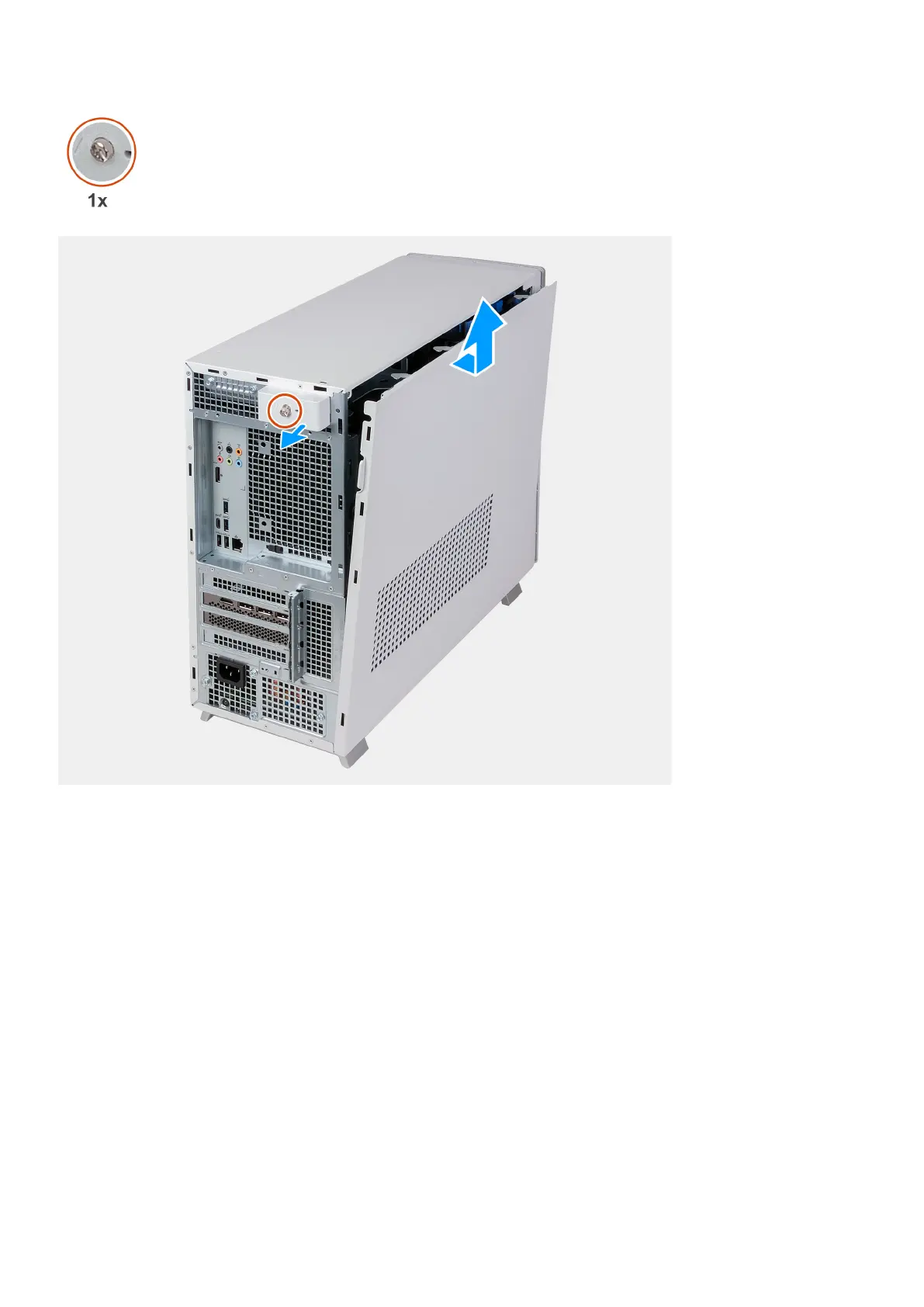

1. Loosen the captive screw that secures the left-side cover latch to the chassis.
2. Pull on the left-side cover latch to release the left-side cover from the chassis.
3. Holding the left-side cover firmly on both sides, remove and lift the left-side cover from the chassis.
Installing the left-side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left-side cover and provides a visual representation of the installation
procedure.
14
Removing and installing components

Dell XPS 8950 Specifications

General

Processor	12th Gen Intel Core i5, i7, or i9
Operating System	Windows 11 Home or Pro
Chipset	Intel Z690
Memory	Up to 128GB DDR5
Storage	Up to 2TB SSD + 2TB HDD
Graphics	NVIDIA GeForce RTX 3060, RTX 3080 or AMD Radeon RX 6700 XT
Dimensions	173 mm
Ports (Front)	1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, Headphone/Mic
Ports (Rear)	Ethernet
Expansion Slots	1x PCIe x16, 1x PCIe x4, 1x PCIe x1
Power Supply	460W or 750W
Wireless	Bluetooth 5.2
Ports	USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2x2 Type-C, USB 2.0, HDMI, DisplayPort, Ethernet
