REPAIRS
REPLACING THE POWER SUPPLY CABLE

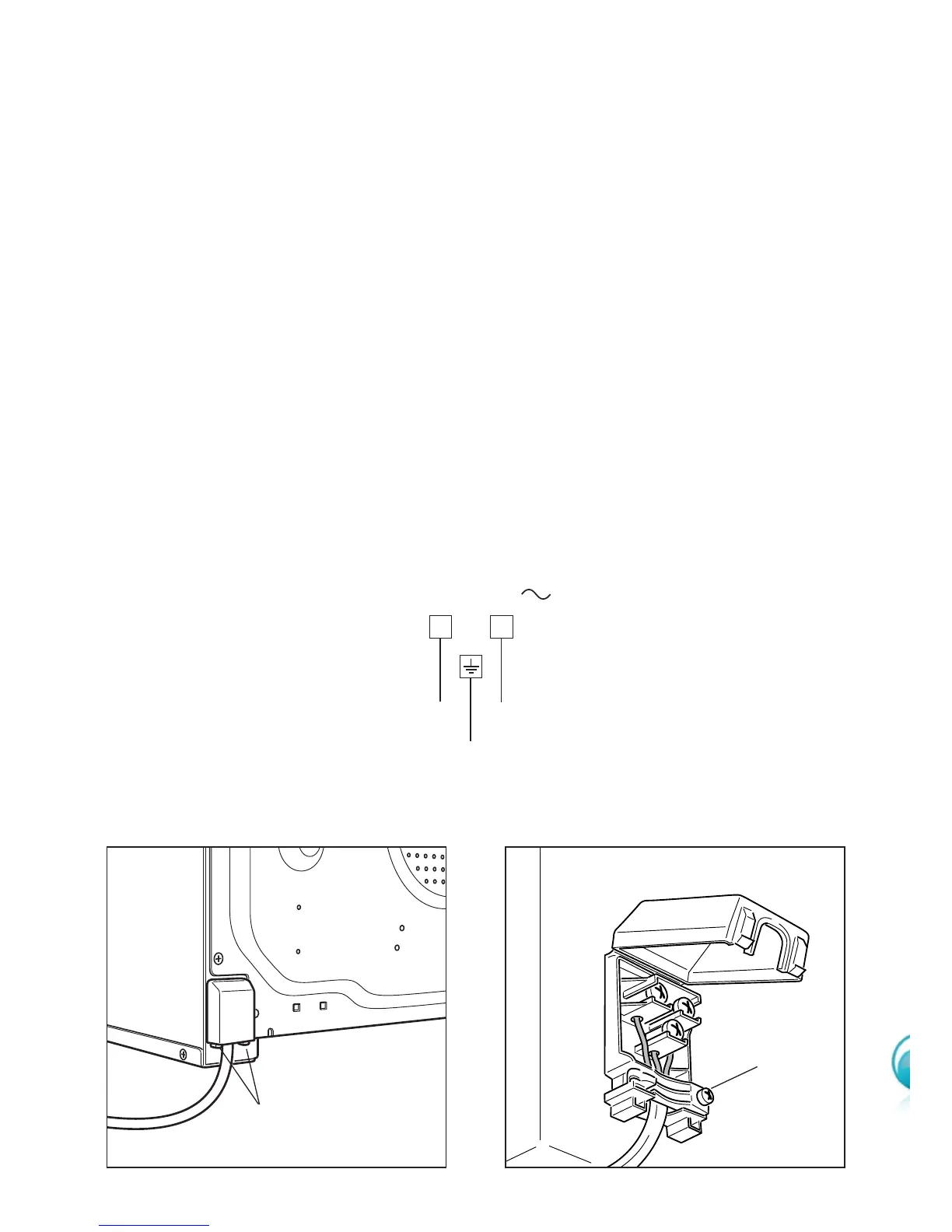

■ Unhook the terminal board cover by inserting a screwdriver into the two
hooks A (fig. 2).
■ Open the cable gland by unscrewing screw F (fig. 3), unscrew the terminal
screws and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.
FEEDER CABLE SECTION TYPE HO5RR-F
A
F
230 - 240 V
E
N
L
1 (L )2
Figure 2 Figure 3
Figure 1
230 V~ 2350 W (10,2 A) 3 x 1,5 mm
2
240 V~ 2550 W (10,6 A) 3 x 1,5 mm
2
