FITTING THE OVEN INTO A
BASE
The space available should be of the
dimensions shown in the figure 6.
Arrangements should be made for an
adequate supply of the air to the oven
to avoid overheating (fig. 7).
The walls surrounding
the oven must be
made of heat-resistant
material. Both the
veneered plastic and
the adhesive used
must be resistant to
temperatures of 120°C
in order to prevent
unsticking and defor-
mation.
FITTING REQUIREMENTS
WARNING: Taking care NOT to lift the oven by the door handle.
The oven must be built-in in a standard module of furniture of 60 cm width and
depth.
It is to be fit up in a module having the clearance as shown in the pictures.
On the lower side, the oven must lay on supports standing the oven weight.
The ovens are secured by four screws that pass through the surround.
They must locate firmly and squarely in the edges of the cabinet or add panels to
achieve a secure location.

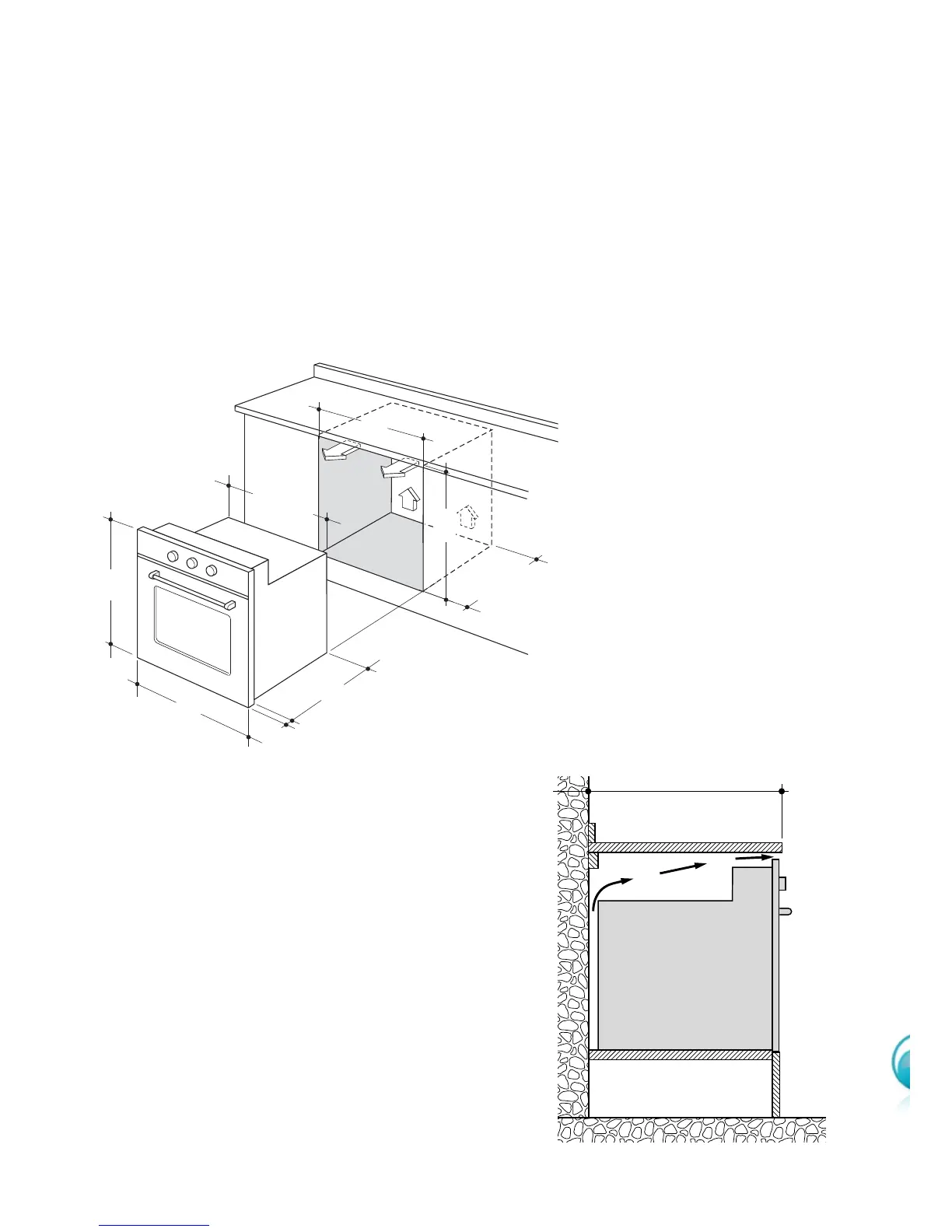

Figure 6
Figure 7
To Next Page
