Preparing for use
Keep the air hoses as short and free of
curves as possible to avoid bottlenecks.
E
then fix the bracket by using the locking
pin provided. When extracting the win-
dow bracket and joining the two pieces
pay attention you do not cover the hole.
C
Other set-up methods:
• Thanks to the locking pin, it’s possible to
use the window bracket also for sliding
windows. Position the hole of the bracket
so to allow a correct installation of the
exhaust hose (see figure D)
.
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
French window
• After having screwed the window outlet
into the air exhaust hose , open
the French window slightly and position
the window outlet as shown in figure
E.
12
17
17

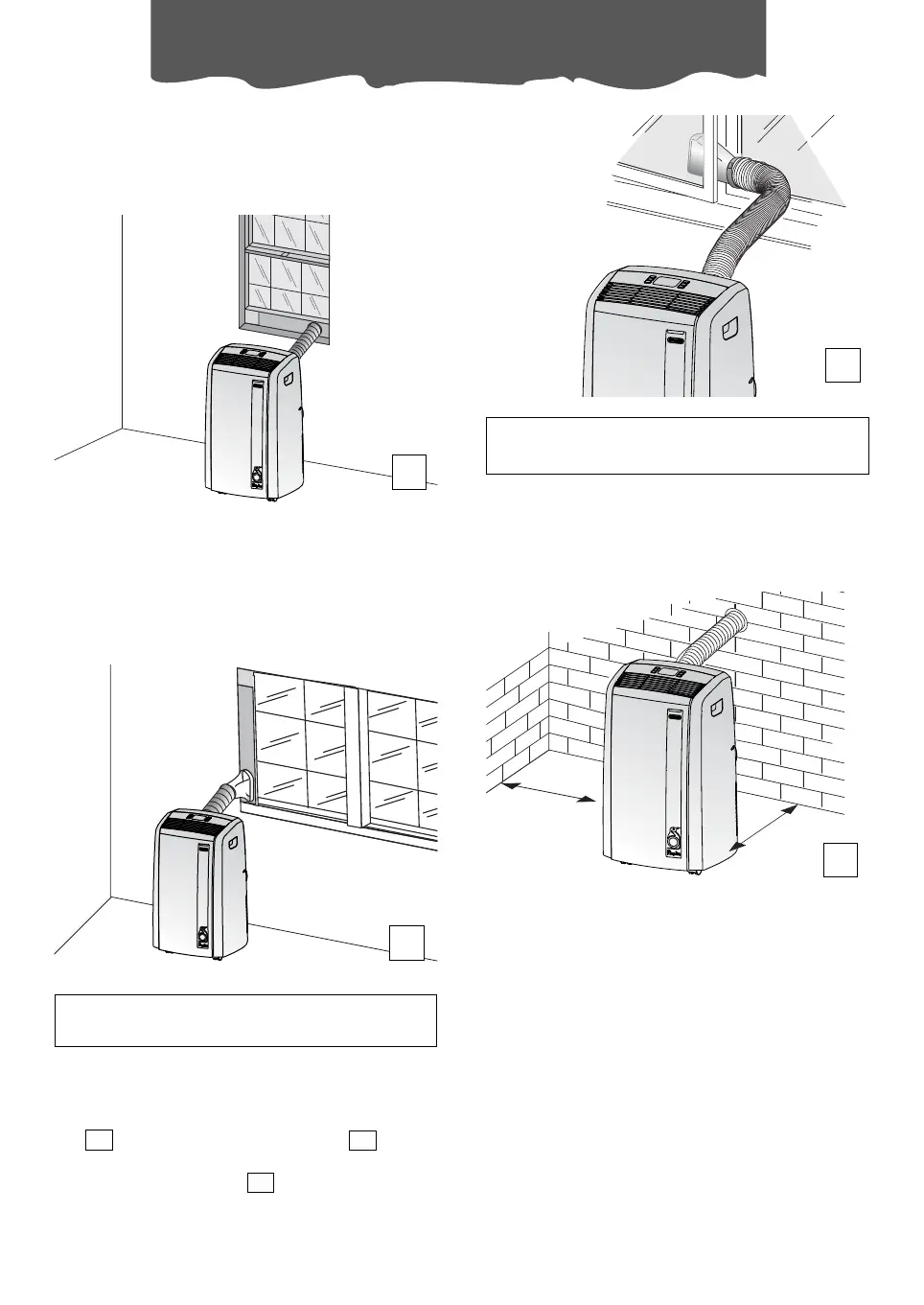

D
SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. F).
F
Proceed as follows:
• Drill a hole (ø134 mm / 5,27 in.) in an out-
side wall or through a window pane.
Respect the height and dimensions of the
hole given in figures F and G.
NOTE: As special tools are required for instal-
lation, we suggest you have the appliance
installed by specialized personnel.
