The instructions below will enable you to prepare your air conditioner for operation as efficiently
as possible.
Before use, make sure the air intake and outlet grilles are unobstructed.
AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is
ensured with your air conditioner:

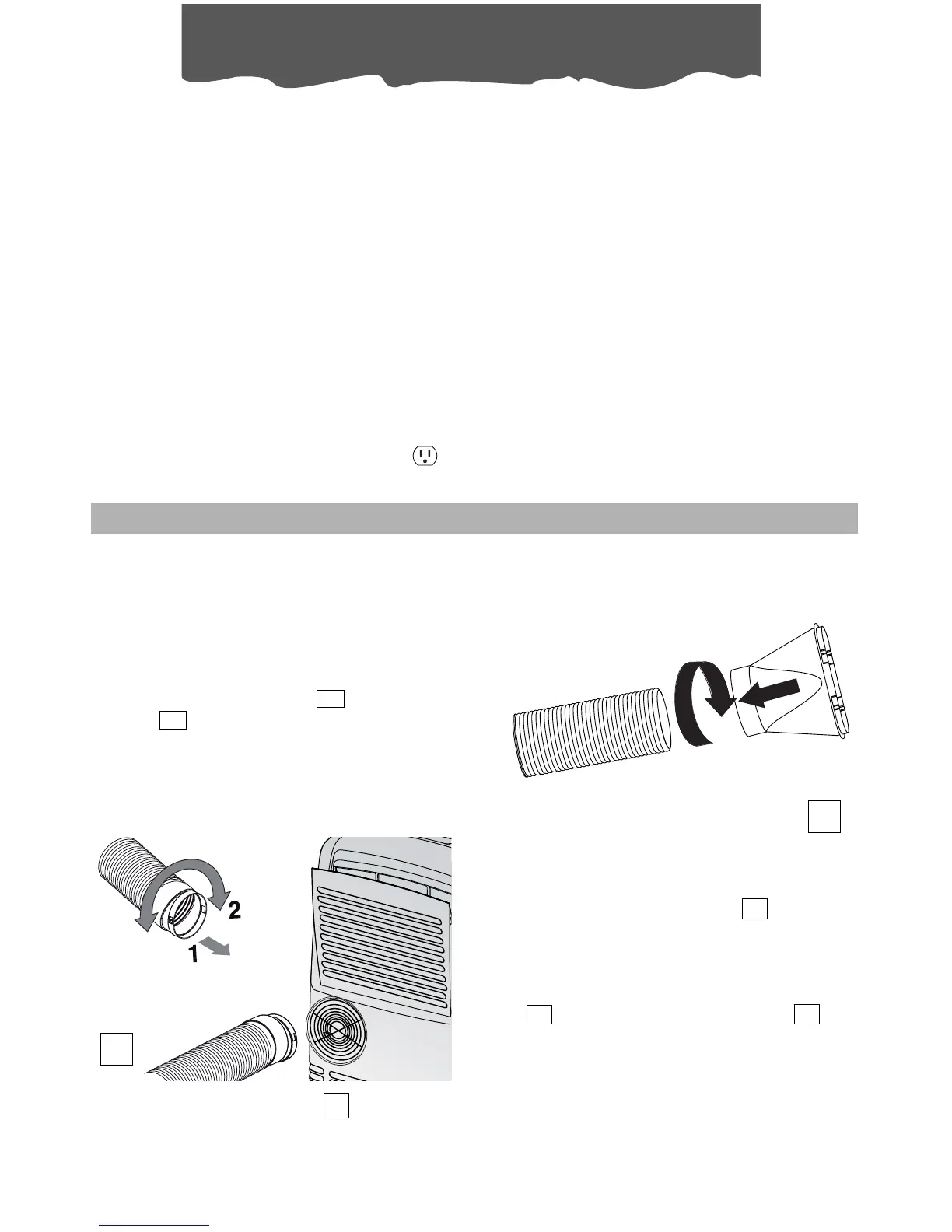

• Screw the hose adaptor to the hose’s
end .
• Fit the air exhaust hose in the housing at
the back of the appliance. Insert it as
shown in figure A. Be sure it is properly
fixed (check by pulling lightly the hose).
12
13
Preparing for use
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• The outlet’s power supply corresponds to the value indicated on the rating label on the back
of the appliance;
• The outlet and electrical circuit are adequate for the appliance;
• The outlet is a 3-hole grounded outlet . If this is not the case, you must choose another outlet.
Failure to follow these important safety instructions absolves the manufacturer of all liability.
The power cable must be replaced by a qualified professional only.
DESCRIPTION
1 air outlet grille
2 control panel
3 handles
4 castors
5 filter
6 evaporator air intake grille
7 air exhaust hose housing
8 condenser air intake grille
9 power cable
10 drainage hose with 2 caps
11 wall flange with cap
12 air exhaust hose
13 hose adaptor
14 accessory for wall mounting
15 window bracket with pins
16 additional window bracket
17 window outlet
18 remote control
19
end of season dust cover
20 end of season accessories bag
• Screw the window outlet to the other
end of the exhaust hose. (see fig. B).
17
1
2
B
Sash window
• Open the window.
• Place the window bracket in the win-
dow, extending it to fit the width of the
window
(fig. C).
• Place the air conditioner near the win-
dow. Insert the assembled exhaust hose
into the window bracket hole
.
•
Make sure the air exhaust hose is unob-
structed.
• If you have a very large window, in order
to cover your window aperture, use the
additional window bracket without holes
extending it to the desired dimension,
15
12
15
A
