CLEANING
Remove the protective coating from the machined surfaces of the drill press and all loose items. This coating may be
removed with a soft cloth moistened with kerosene. DO NOT use acetone, gasoline, or lacquer thinner for this pur-
pose.
ASSEMBLY INSTRUCTIONS

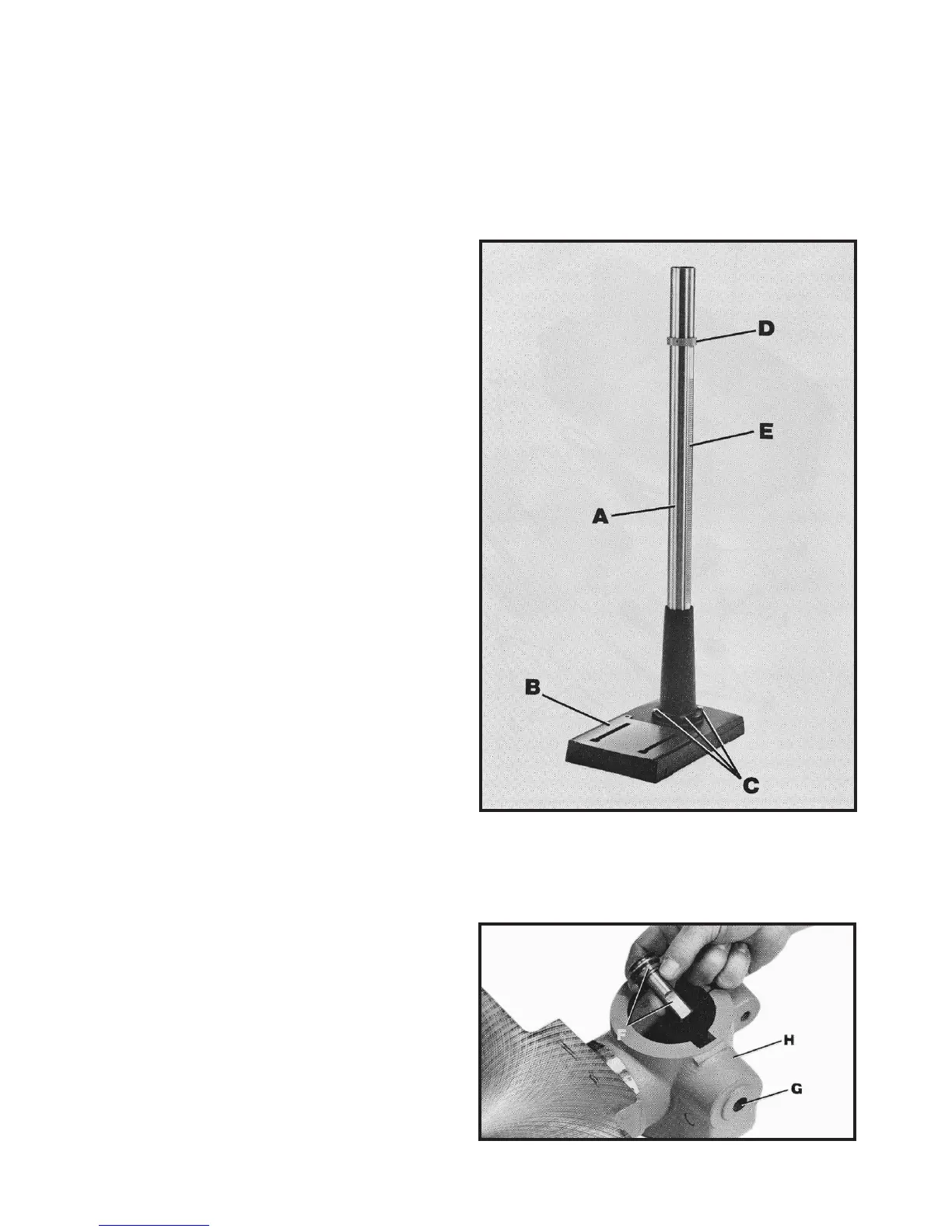

1. Assemble the column (A) Fig. 3, to the base (B)
using the four screws, three of which are shown at (C).
2. Loosen set screw in ring (D) Fig. 3, and remove
ring (D) and raising rack (E).
3. Insert shaft of worm gear (F) Fig. 4, into hole (G)
from inside of table bracket (H).
Fig. 3
Fig. 4
