12
OPERATING CONTROLS AND ADJUSTMENTS

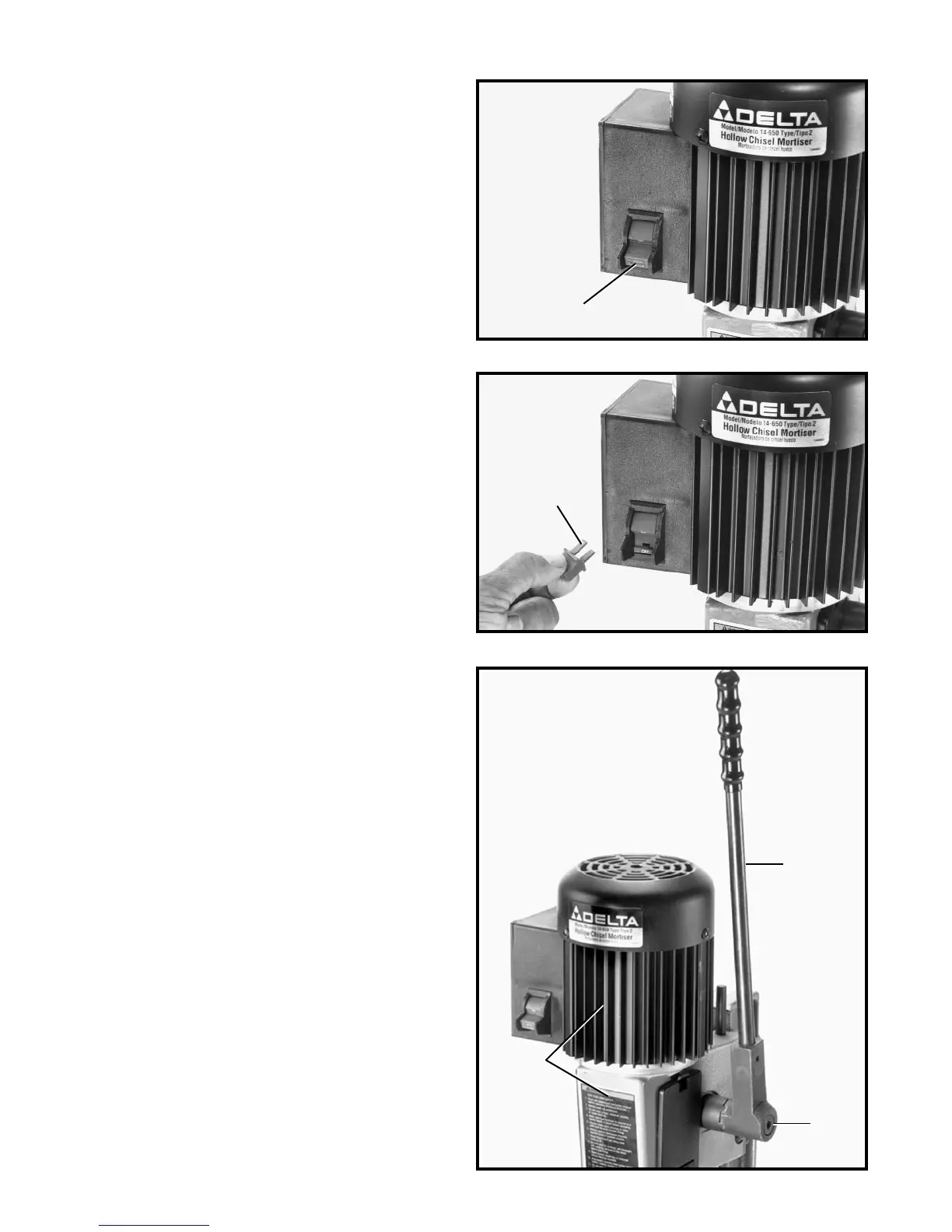

Fig. 26
Fig. 27
Fig. 28
RAISING AND
LOWERING THE HEAD
The head (A) Fig. 28, is raised and lowered by means of
the lever (B). For maximum leverage during the mortising
operation, the lever (B) can be repositioned by pulling
out the hub (C) of the lever assembly and repositioning
hub on the pinion shaft.
LOCKING SWITCH IN
THE “OFF” POSITION
When the tool is not in use, the switch be locked in the
“OFF” position to prevent unauthorized use. This can be
done by grasping the switch toggle (B) Fig. 27, and
pulling it out of the switch, as shown. With the switch
toggle (B) removed, the switch will not operate.
However, should the switch toggle be removed while the
machine is running, the switch can be turned “OFF”
once, but cannot be restarted without inserting the
switch toggle (B).
SWITCH
The switch (A) Fig. 26, is located on the side of the
motor. To start the mortiser, move the switch (A) to the
up position. To turn the mortiser “OFF” move the switch
to the down position
A
B
B
C
A
