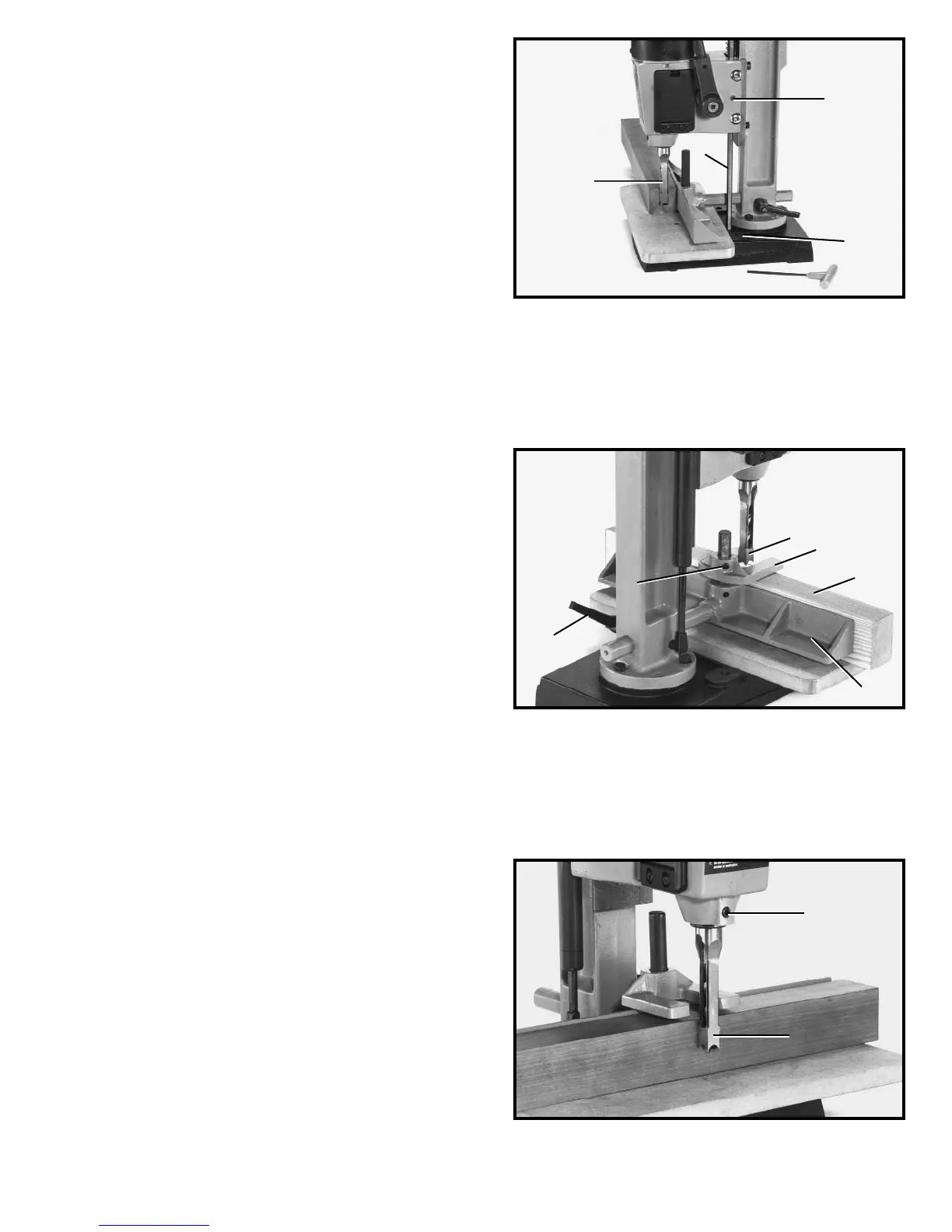

ADJUSTING CHISEL
PARALLEL TO WORKPIECE
The chisel (A) Fig. 31, can be adjusted parallel to the
workpiece by loosening screw (B) and rotating chisel
until the back surface of the chisel is touching
workpiece. Then tighten screw (B).
ADJUSTING FENCE
The fence (A) Fig. 30, can be moved in or out by
loosening lever (B), sliding fence to the desired position
and tightening lever (B). NOTE: Lever (B) is spring-loaded
and can be repositioned by pulling out on the lever and
repositioning it on the serrated nut located underneath
the lever.
ADJUSTING HOLDDOWN
The purpose of the holddown (C) Fig. 30, is to prevent
the workpiece (E) from lifting as the chisel (D) is raised
up, out of the hole. The holddown (C) should be adjusted
so it just touches the top of the workpiece (E) and allows
the workpiece to slide left or right. The holddown (C) can
be turned upside down to accommodate thicker
workpieces. To adjust the holddown (C), loosen screw
(F), position holddown, and tighten screw (F).
ADJUSTING
DEPTH STOP ROD
A depth stop rod (A) Fig. 29, is provided to limit the
depth of the chisel (B). To adjust the depth stop rod (A),
loosen screw (C) and lower head until the chisel (B) is
at the desired depth. Lower depth stop rod (A) until it
contacts base (D) and tighten screw (C).
B
D
A
C
B
A
F
D
C
E
B
A
