4
A - Mortising Machine
B - Hydraulic Cylinder
C - Raising and Lowering Handle
D - Special Screw (for raising and lowering handle)
E - Spring (for raising and lowering handle)
F - Table
G - M6 x 35mm Flat Head Screws (for assembling
table to base)
H - T-Nuts (for assembling table to base)
J - Fence
K - Bar (for mounting holddown)
UNPACKING AND CLEANING
Carefully unpack the mortiser and all loose items from the carton. Remove the protective coating from the machined
surfaces of the mortiser. This coating may be removed with a soft cloth moistened with kerosene. Do not use acetone,

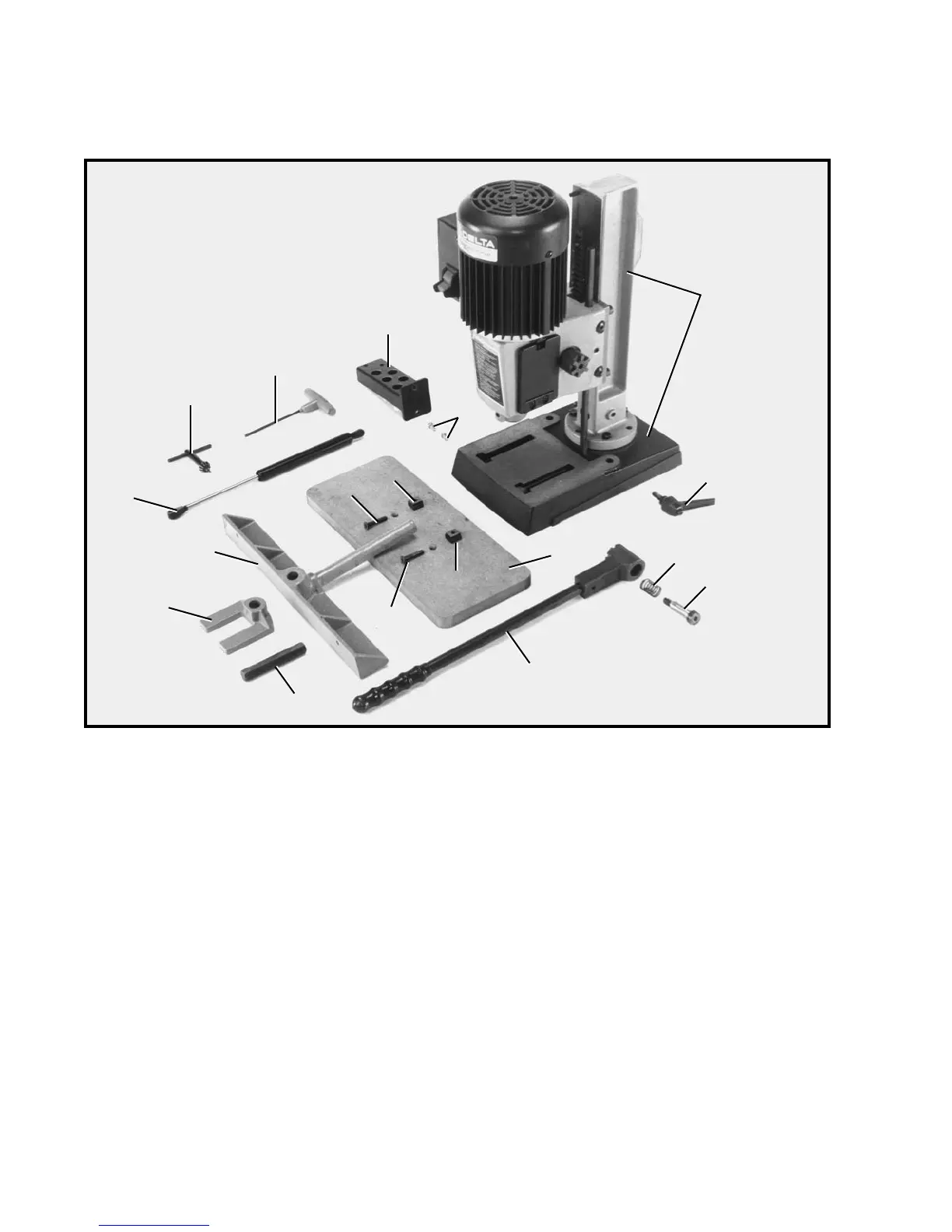

gasoline, or lacquer thinner for this purpose. Fig. 2 illustrates the mortiser and all loose items removed from the carton.
L - Holddown
M - Chuck Key
N - Wrench
O - Tool and Chisel Holder
P - M6 x 25mm Screws (for assembling tool and
chisel
holder)
* - Flat Washers (for assembling tool and chisel holder)
R - Fence Locking Handle Assembly
* - Not Shown
Fig. 2
O
P
N
M
B
J
L
K
G
H
F
G
H
C
E
D
R
A
