Fig. 18
3. An alternate method of securing the sander to a
supporting surface is to fasten the sander base to a

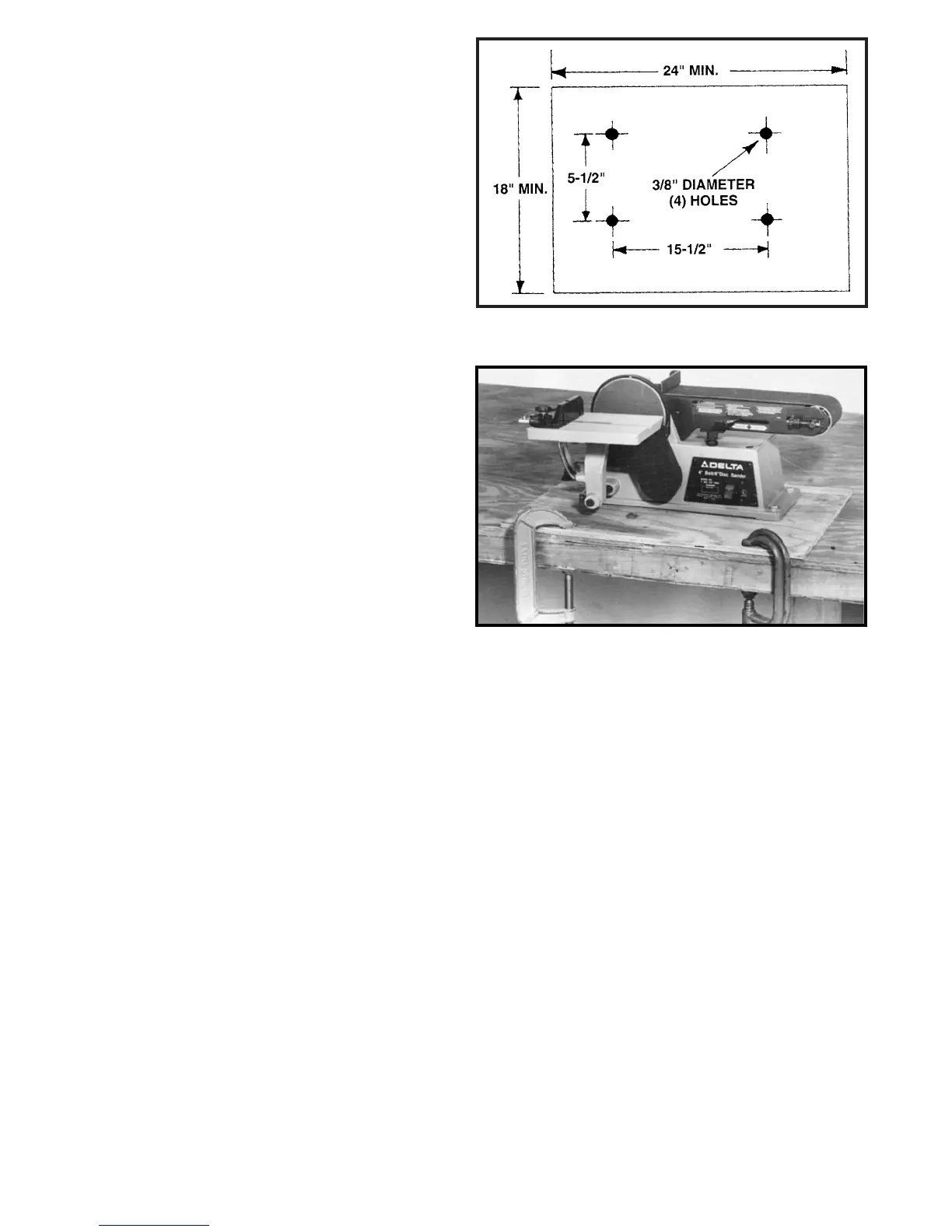

mounting board 18" x 24" minimum size. The diagram,
shown in Fig. 17, illustrates the size and center to center
distance of the holes to be drilled in the mounting board.
NOTE: For proper stability, the holes in the mounting
board must be countersunk at the bottom so screw
heads are flush with bottom surface of the mounting
board.
4. Securely clamp the mounting board to a stand or
workbench using 2 or more “‘C” clamps, as shown in
Fig. 18.
IMPORTANT: If there is any tendency for the stand or
workbench to move during operation, the stand or work-
bench must be fastened to the floor.
NOTE: Mount and use this machine on horizontal
surfaces only. Use when mounted on non-horizontal
surfaces will result in motor damage.
Fig. 17
To Next Page
