ADJUSTMENTS

ADJUSTING 90 AND 45

DEGREE BEVEL STOPS

1. DISCONNECT THE SAW FROM THE POWER

SOURCE.

2. Loosen bevel lock handle and tilt the cutting arm all

the way to the right and tighten the bevel lock handle.

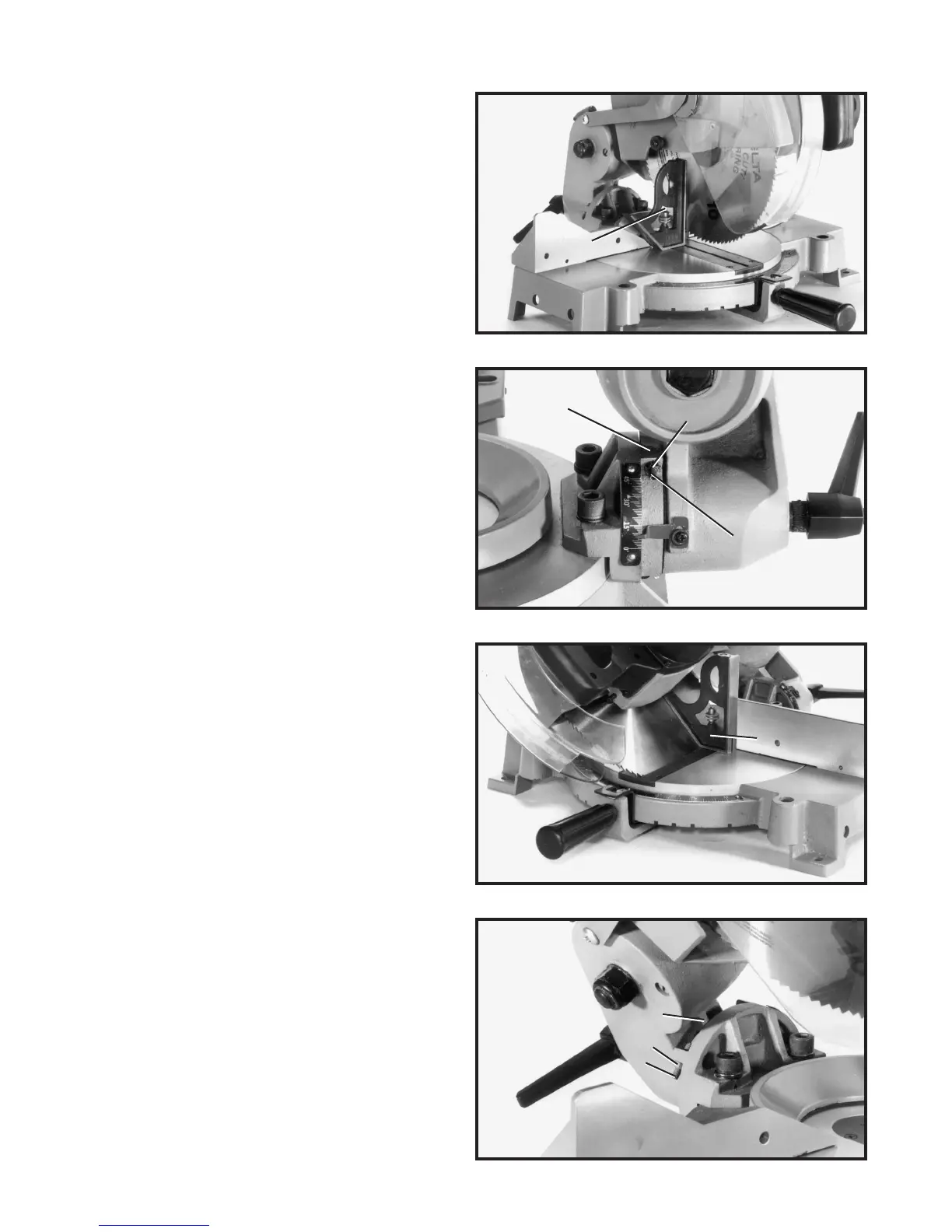

3. Using a square (A) Fig. 21, place one end of the

square on the table and the other end against the blade.

Check to see if the blade is at 90 degrees to the table, as

shown in Fig. 21.

4. If an adjustment is necessary, loosen locknut (B)

Fig. 22, and turn screw (C) until other end of screw (C)

contacts casting (D) when blade is 90 degrees to the

table. Then tighten locknut (B).

5. Loosen bevel lock handle and tilt the cutting arm all

the way to the left bevel position and tighten bevel lock

handle.

6. Using a combination square (A) Fig. 23, check to see

if the blade is at 45 degrees to the table, as shown.

7. If an adjustment is necessary, loosen locknut (E)

Fig. 24, and turn screw (F) until other end of screw (F)

contacts casting (G) when blade is 45 degrees to the

table. Then tighten locknut (E).

8. These positive stops enable you to rapidly position

the blade at 90 and 45 degrees to the table.

Fig. 23

Fig. 24
