16
Fig. 34
Fig. 35
Fig. 36

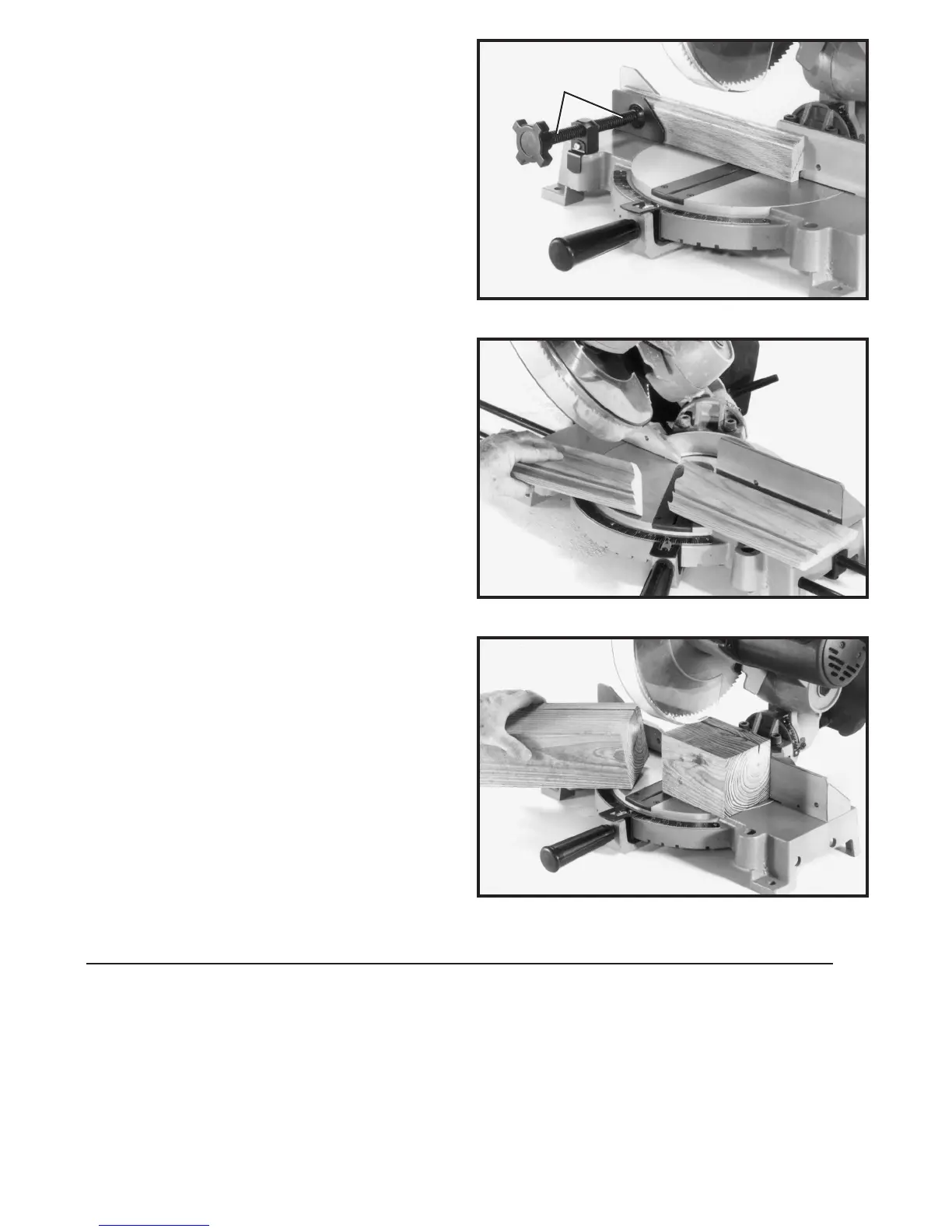

9. Fig. 34, illustrates the work clamp (B) being used to
firmly hold the workpiece against the fence.
10. Fig. 35, illustrates the cuttinghead tilted and the arm
in a miter position for a compound miter/bevel cutting
operation.
11. Fig. 36, illustrates the fence in the forward position
enabling you to cross-cut a standard 4 x 4 in one pass.
CUTTING CROWN MOULDING
One of the many features of your saw is the ease of cutting crown moulding. The following is an
example of cutting both inside and outside corners on 52/38 degree wall angle crown moulding.
NOTE: When cutting 45 degree wall angle crown moulding the following procedure for inside and
outside corners is the same with the exception that the bevel position will always be at 30 degrees
and the miter position will be 34-1/4 degrees to the right or left.
B
