Delta 36-650 User Manual

19
LOCKING SWITCH IN
THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch (B)
Fig.56, should be locked in the OFF position using a
padlock (C), with a 3/16" diameter shackle to prevent
unauthorized use.
STARTING AND
STOPPING SAW

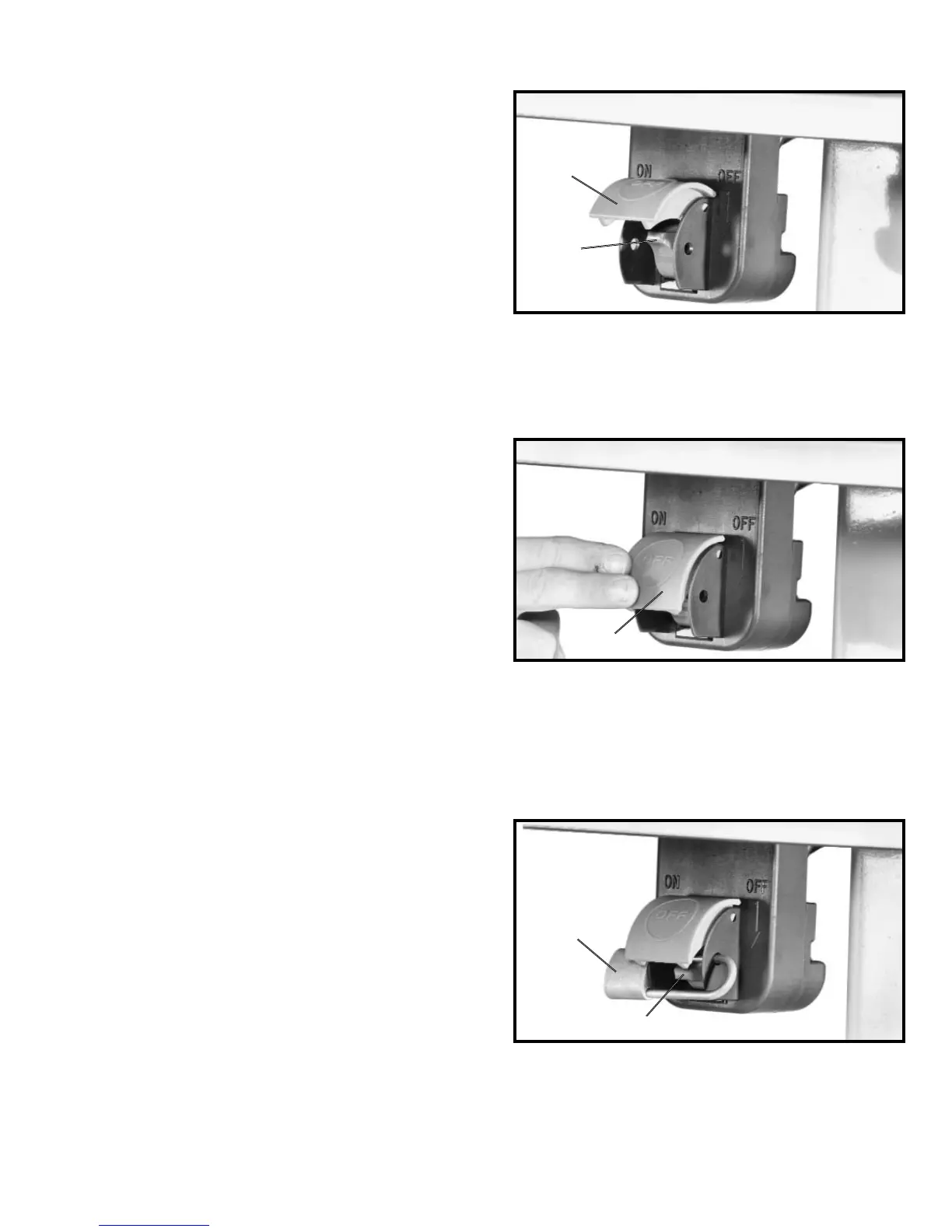

1. The on/off switch is located underneath the switch
shield (A) Fig. 54. To turn the saw “ON,” move switch
trigger (B) to the up position.
OPERATING CONTROLS AND ADJUSTMENTS
2. To turn the saw “OFF,” push down on switch shield
(A) Fig. 55.
Fig. 54
A
B
Fig. 55
A
Fig. 56
C
B

Delta 36-650 Specifications

General

Type	Contractor Table Saw
Motor Power	1.5 HP
Blade Diameter	10 inches
Rip Capacity	30 inches
Arbor Size	5/8 inch
Voltage	120V
Max Depth of Cut at 90 Degrees	3-1/8 inches
Max Depth of Cut at 45 Degrees	2-1/4 inches
Amperage	15A
