11
Fig. 22
Fig. 21

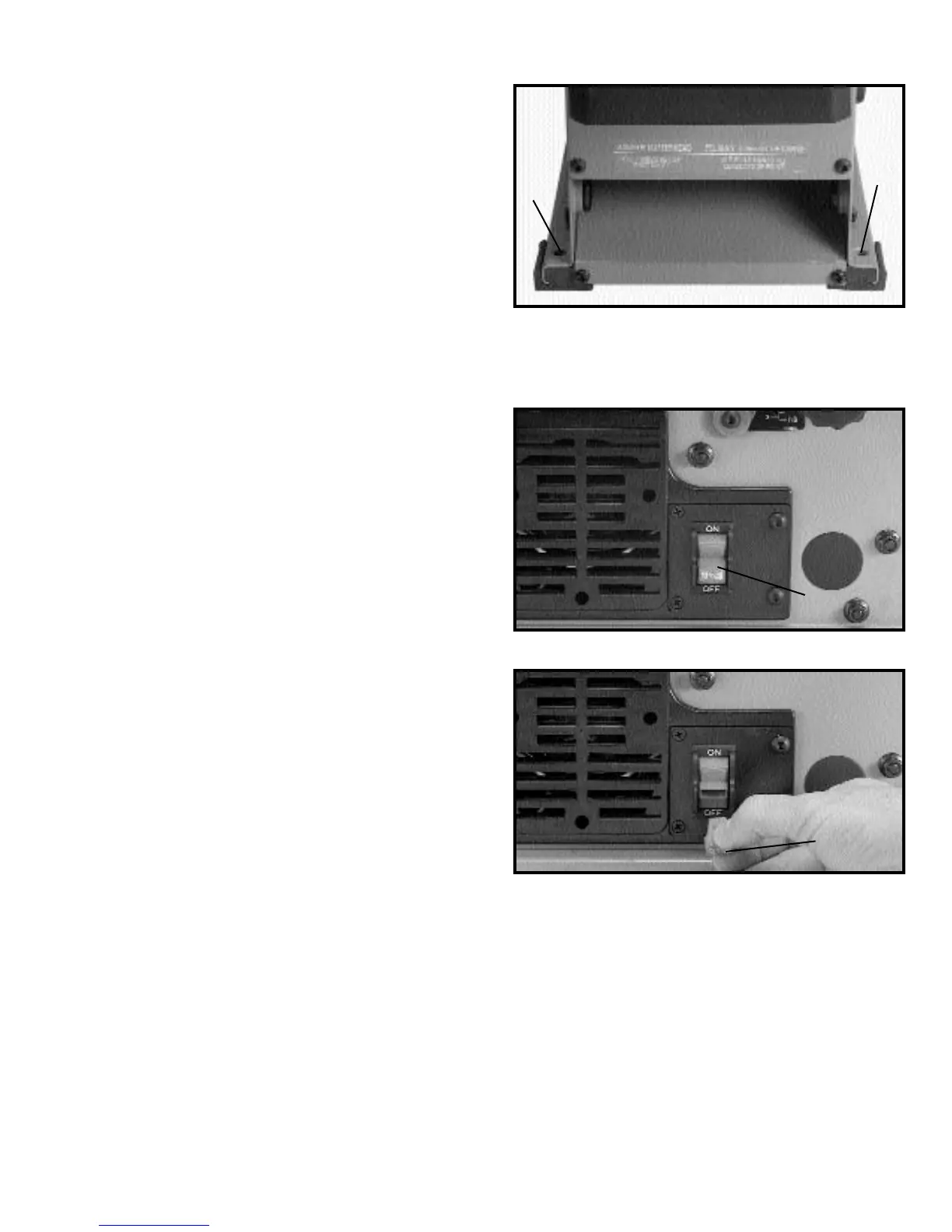

FASTENING JOINTER TO SUPPORTING SURFACE
If during operation, there is any tendency for the jointer
to tip over, slide or walk on the supporting surface, the
jointer must be secured to the supporting surface with
fasteners through the four holes, two of which are
shown at (A) Fig. 20, in the jointer base.
STARTING AND
STOPPING JOINTER
The on/off switch (A) Fig. 21, is located on the front of the
jointer cabinet. To turn the machine “ON,” move the
switch (A) to the up position. To turn the machine “OFF,”
move the switch (A) to the down position.
OPERATING CONTROLS AND ADJUSTMENTS
LOCKING SWITCH IN
THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use. Grasp the switch toggle (B) and pull
it out as shown in Fig. 22. With the switch toggle (B)
removed, the switch will not operate. However, should
the switch toggle be removed while the machine is
running, it can be turned “OFF” once, but cannot be
restarted without inserting the switch toggle (B).
A
B
Fig. 20
A
A
