MAINTENANCE
BELT REPLACEMENT
When it becomes necessary to replace the belt on your
jointer, proceed as follows:
1. DISCONNECT THE TOOL FROM THE POWER
SOURCE.
2. Remove screw (A) Fig. 43, using Allen wrench
supplied, and remove belt guard (B).
3. Loosen three screws (C) Fig. 44, to release belt
tension and remove belt (D) from pulleys.
4. Assemble new belt to the cutterhead and motor
pulleys. Press down on motor pulley (E) Fig. 44, to
tension belt and tighten three screws (C).
5. Replace belt guard (B) Fig. 44.

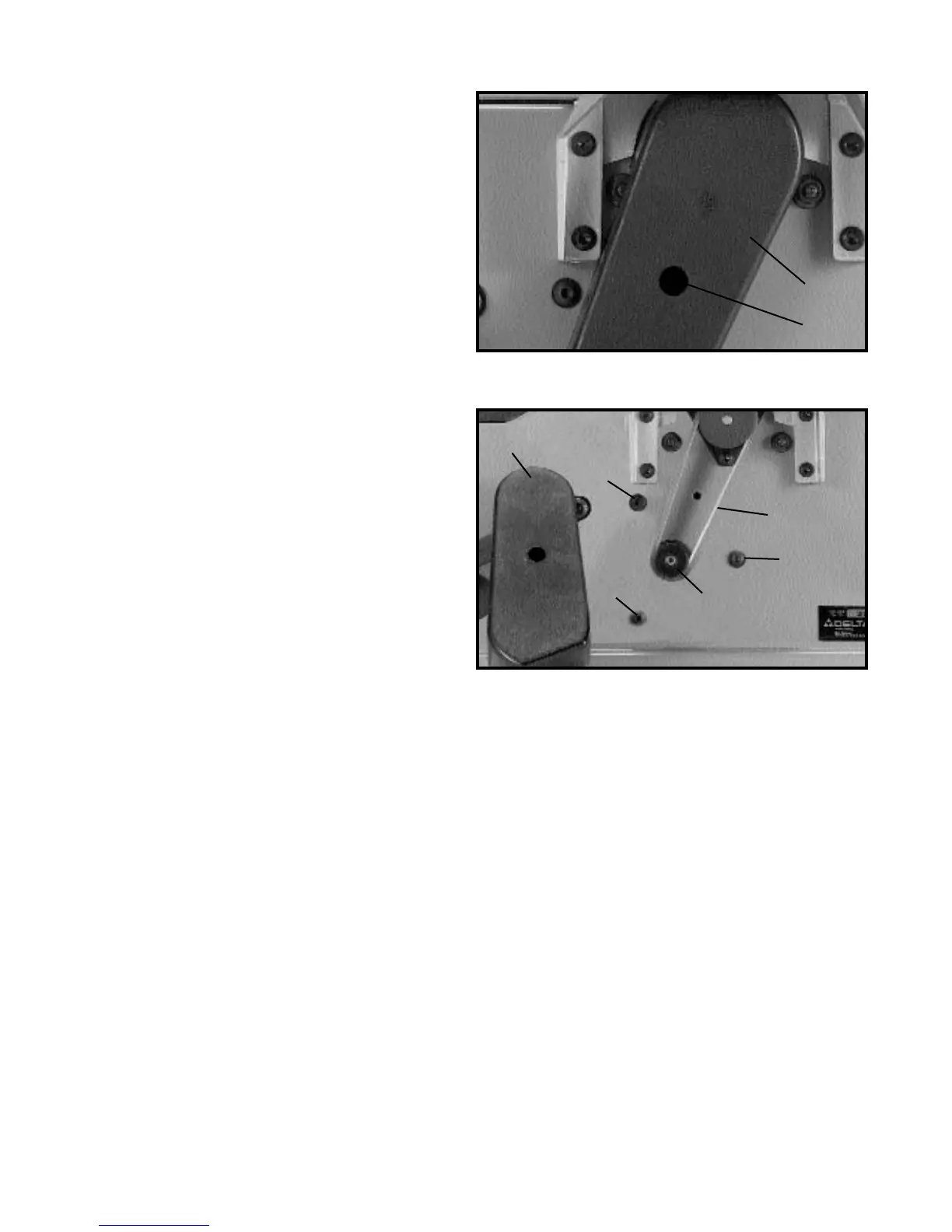

Fig. 43
Fig. 44
B
A
D
E
C
C
C
B
