Delta AS228P-A User Manual

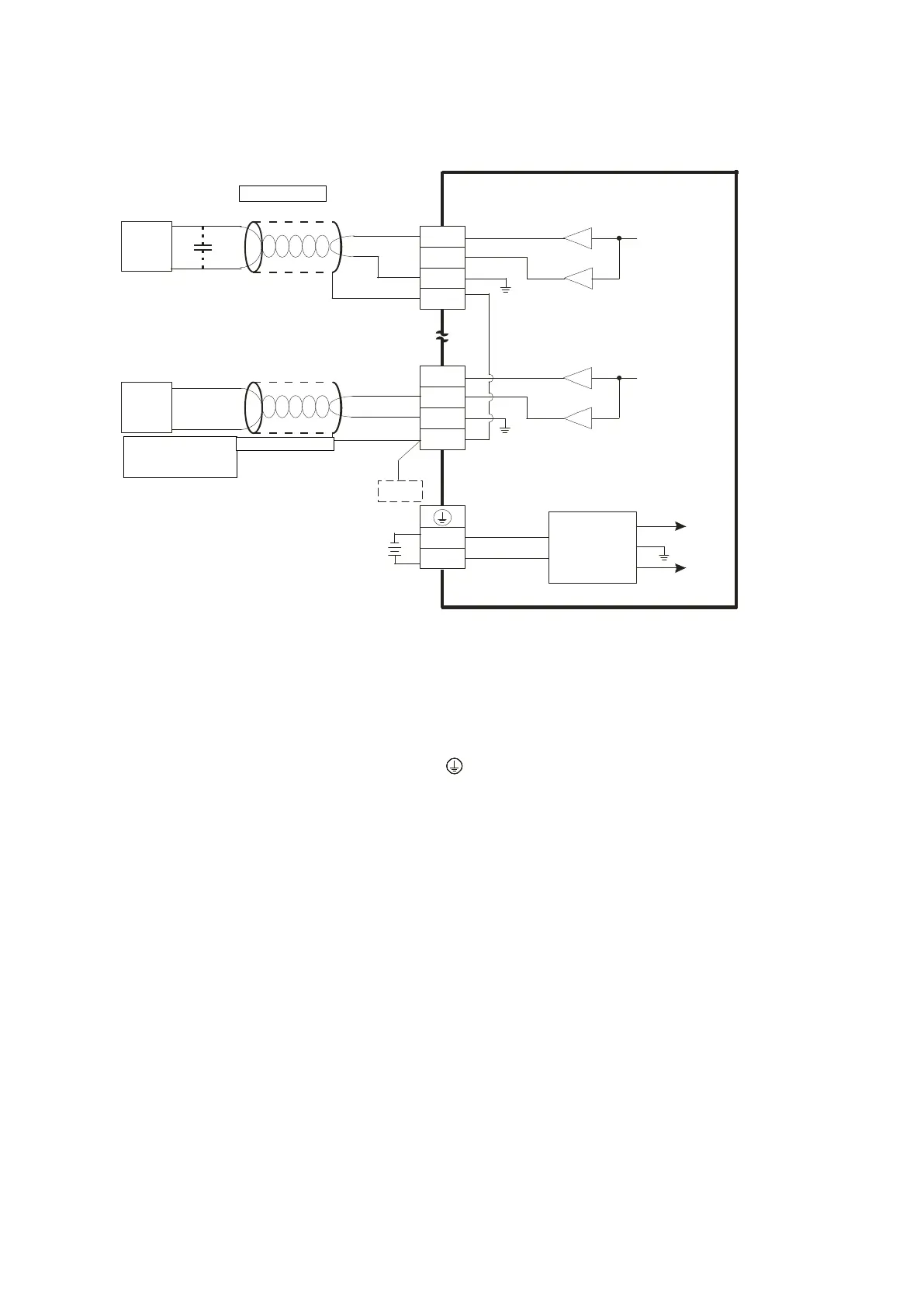

4.9.4 Wiring AS04DA-A
Con verte r
VO4
IO4
AG
CHX
0mA~20mA
CH4
AG
VO1
IO1
AG
CHX
-10V~+10V
*2
CH1
AG
24VDC
DC/DC
+15V
-15V
AG
SLD
SLD
FE
*3
0V
24V
*4
*4
AC motor drive,
recorder,
proportioning v alve
AC motor drive,
recorder,
proportioni ng valve
Shielded cable*1
Shielded c able*1
Voltage output
Current output
*1. Use shielded cables to isolate the analog input signal cable from other power cables.
*2. If noise in the input voltage results in noise interference in the wiring, connect the module to a capacitor with
a capacitance between 0.1–0.47 μF with a working voltage of 25 V.
*3. Connect the SLD to FE. Connect FE and the terminal to ground.
*4. Every channel can work with the wiring shown above.
