Delta AS228P-A User Manual

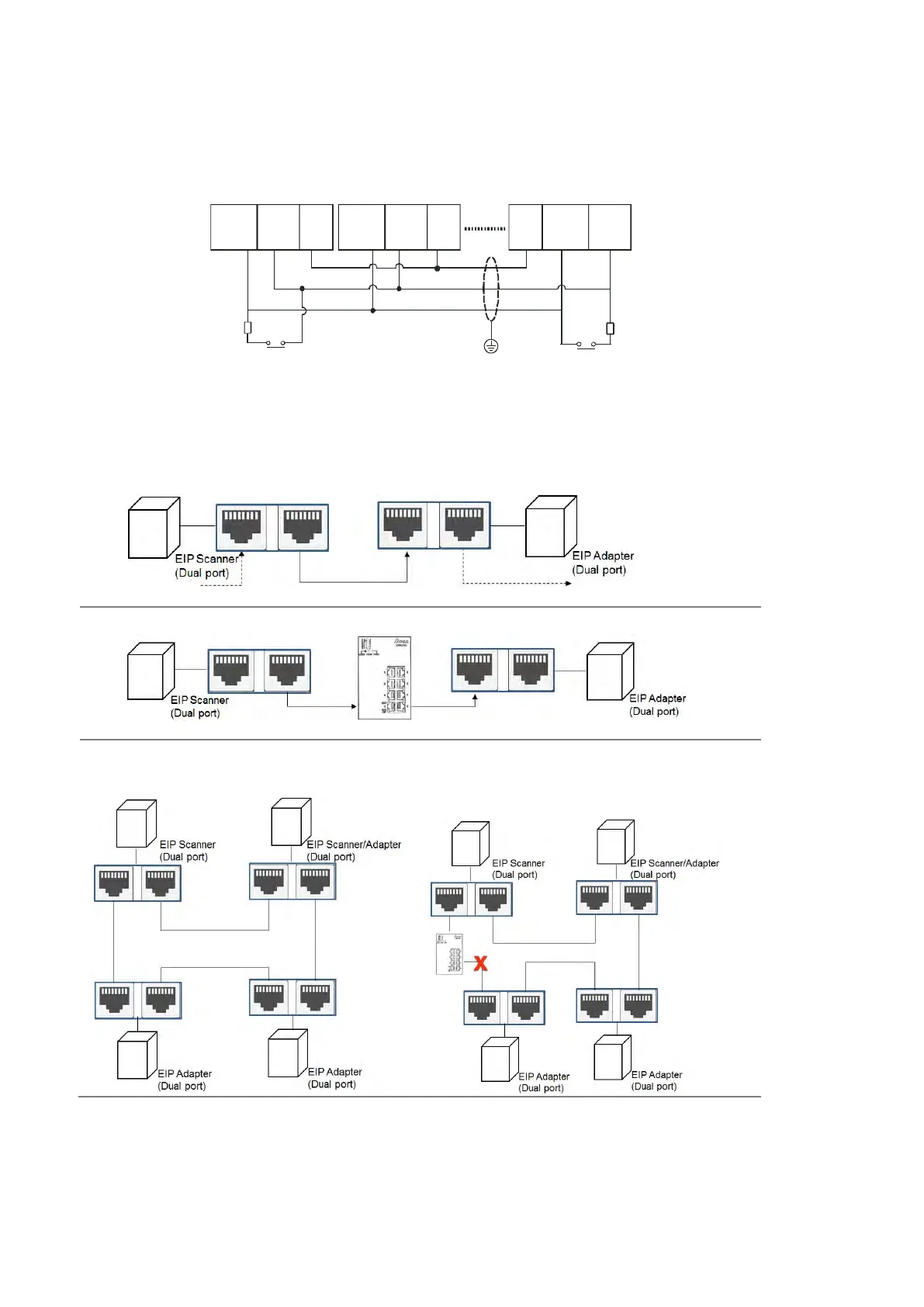

 AS-FCOPM wiring example:
GND
CAN_H CAN_L
Master node
Slave node
Sl
ave node
Terminal
resistor
(120 ohm)
Shielded
cable
GND
CAN_H CAN_L
GND
CAN_H CAN_L
Terminal
resistor
(120 ohm)
 AS-FEN02 wiring example:
 Linear Topology
 Star Topology
 Ring Topology
A DLR function is required to create a ring topology.
When a switch is needed for topology, the switch
should support the DLR function. If not, the
connection might fail.
