Delta ASD-A2-0421 Series User Manual

Revision February, 2017 4-1
Chapter 4 Panel Display and
Operation
This chapter details the panel status and operation of ADSA-A2 series servo drive.

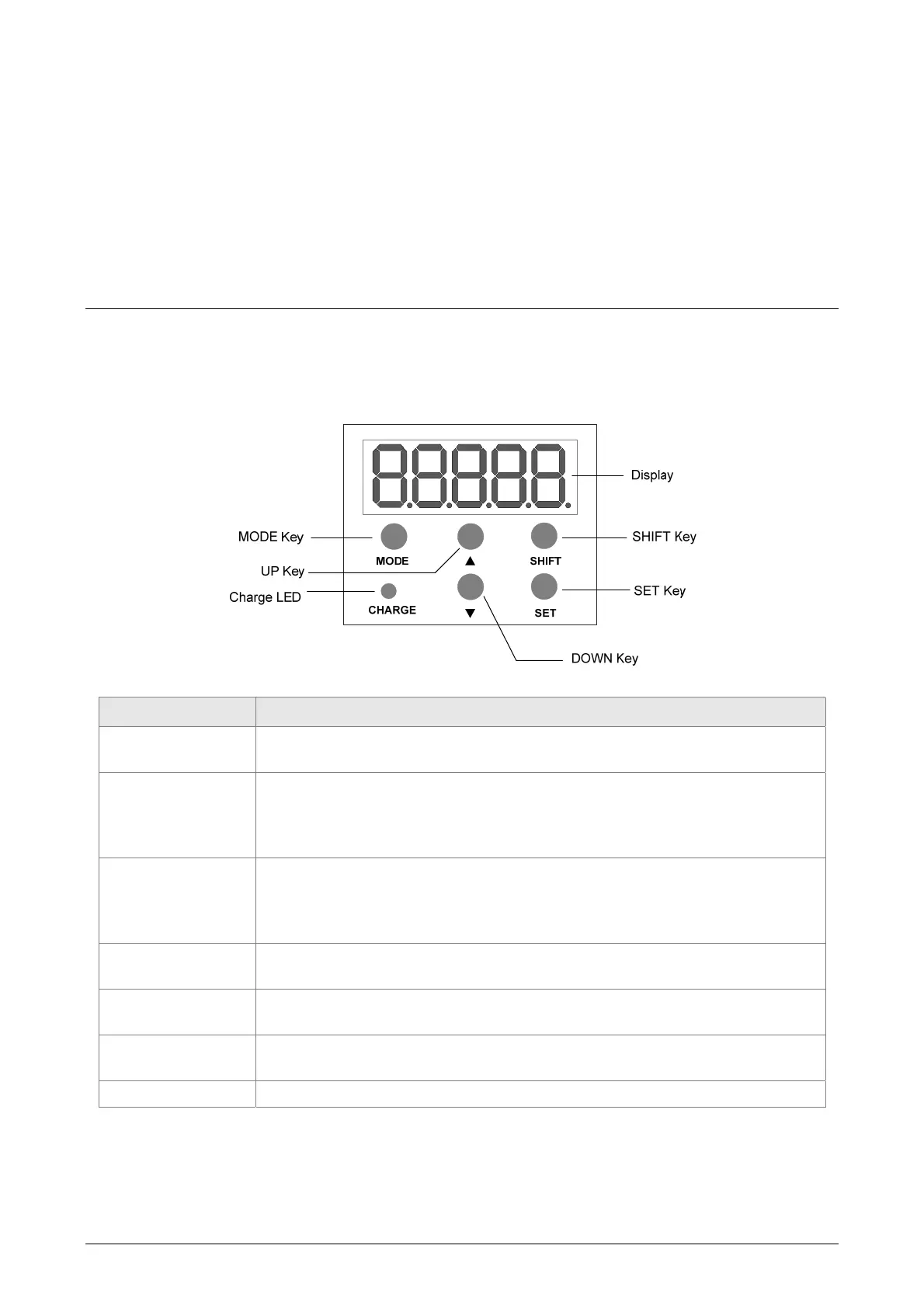

4.1 Panel Description
Name Function
Display
Five-/Seven-segment display is for displaying the monitoring values,
parameter values and setting values.
SHIFT Key
Pressing SHIFT key can scrolls through parameter groups. After a
parameter is selected and its value displayed, pressing SHIFT key can
move the cursor to the left and then change parameter settings by using
arrow keys.
SET Key
Pressing the SET key can display and save the parameter groups, the
various parameter settings. In monitor mode, pressing SET key can
switch decimal or hexadecimal display. In parameter mode, pressing SET
key can enter into parameter setting mode.
DOWN Key
Pressing the DOWN key can scroll through and change monitor codes,
parameter groups and various parameter settings.
MODE Key
Pressing MODE key can enter or exit different parameter groups, and
switch between Monitor mode and Parameter mode.
UP Key
Pressing the UP key can scroll through and change monitor codes,
parameter groups and various parameter settings.
Charge LED The Charge LED lights to indicate the power is applied to the circuit.
