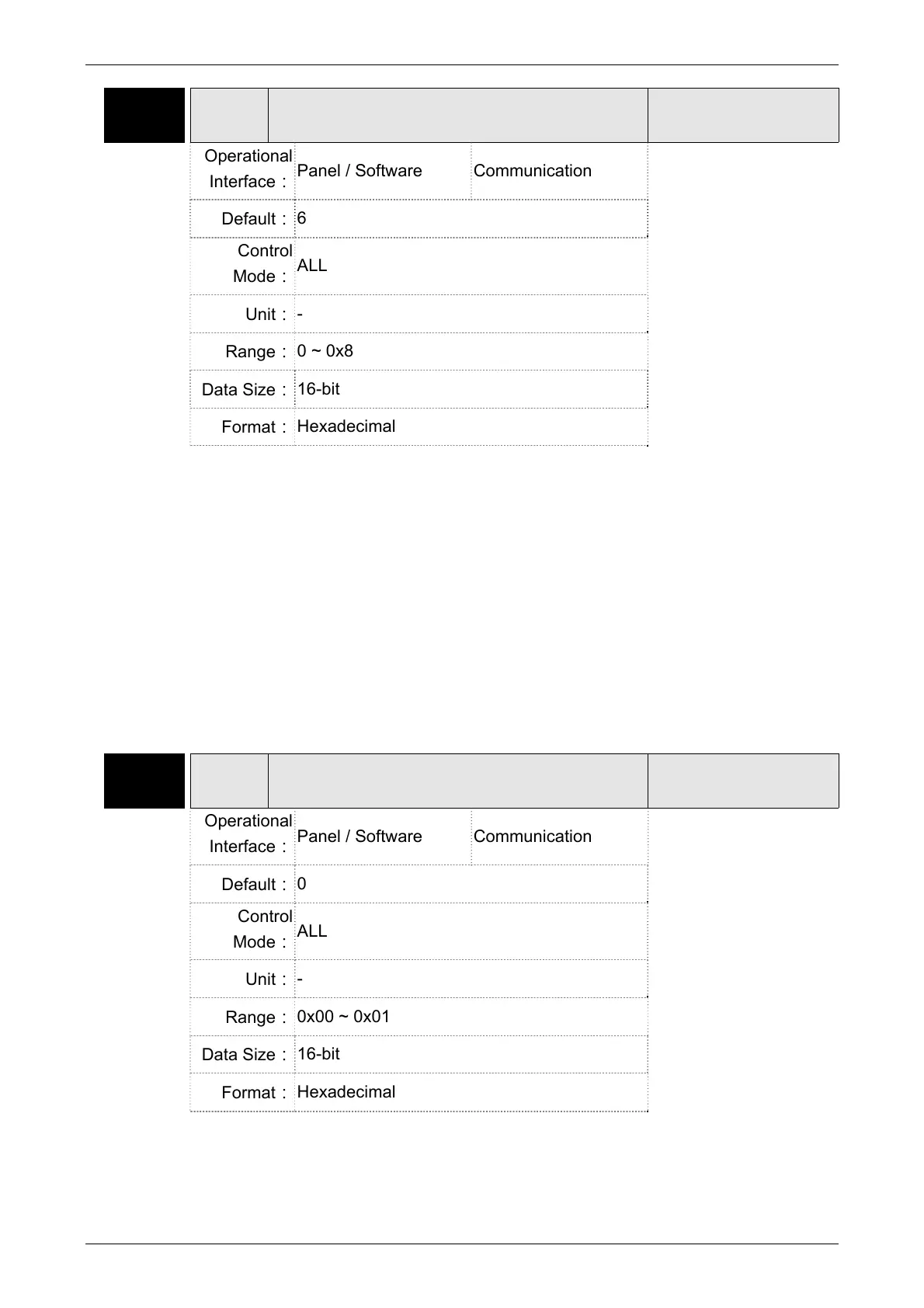

P3-02 PTL Communication Protocol
Address: 0304H
0305H
Operational
Interface：
Panel / Software Communication
Related Section:
9.2
Default：
6
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x8
Data Size：
16-bit
Format：
Hexadecimal
Settings：
The definition of the setting value is as the followings:
0: 7, N, 2 (MODBUS, ASCII)
1: 7, E, 1 (MODBUS, ASCII)
2: 7, O,1 (MODBUS, ASCII)
3: 8, N, 2 (MODBUS, ASCII)
4: 8, E, 1 (MODBUS, ASCII)
5: 8, O, 1 (MODBUS, ASCII)
6: 8, N, 2 (MODBUS, RTU)
7: 8, E, 1 (MODBUS, RTU)
8: 8, O, 1 (MODBUS, RTU)
P3-05 CMM Communication Mechanism
Address: 030AH
030BH
Operational
Interface：
Panel / Software Communication
Related Section:
9.2
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0x00 ~ 0x01
Data Size：
16-bit
Format：
Hexadecimal
Settings：
Communication port can select one or more than one communications.
 Communication Interface
0: RS232
1: RS485
