Delta ASD-A2-0721 Series User Manual

ASDA-A2 Chapter 3 Wiring
Revision February, 2017 3-73

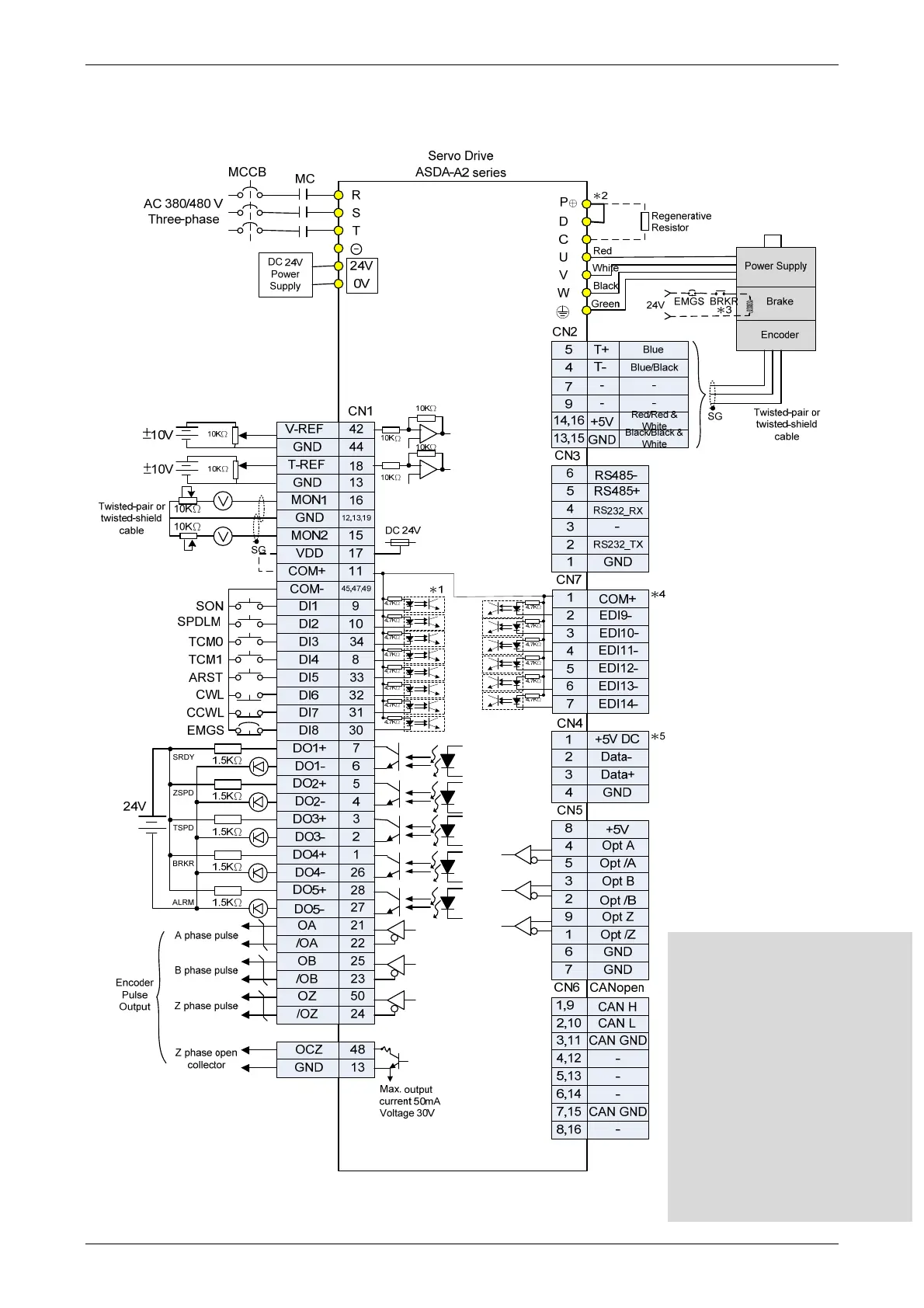

3.13.4 Torque Control Mode
Please note:
*1 Please refer to C9 ~ C12 wiring
diagrams (SINK / SOURCE mode)
in section 3.4.3.
*2 4.5kW and below drives provide
built-in regenerative resistor.
*3 The coil of brake has no polarity.
*4 For extension digital inputs (DI)
connections (CN7 is an optional
part, not Delta standard supplied
part.).
*5 For USB connection. It is used to
connect to personal computer or
notebook.
