Chapter 3 Wiring ASDA-A2
3-6 Revision February, 2017

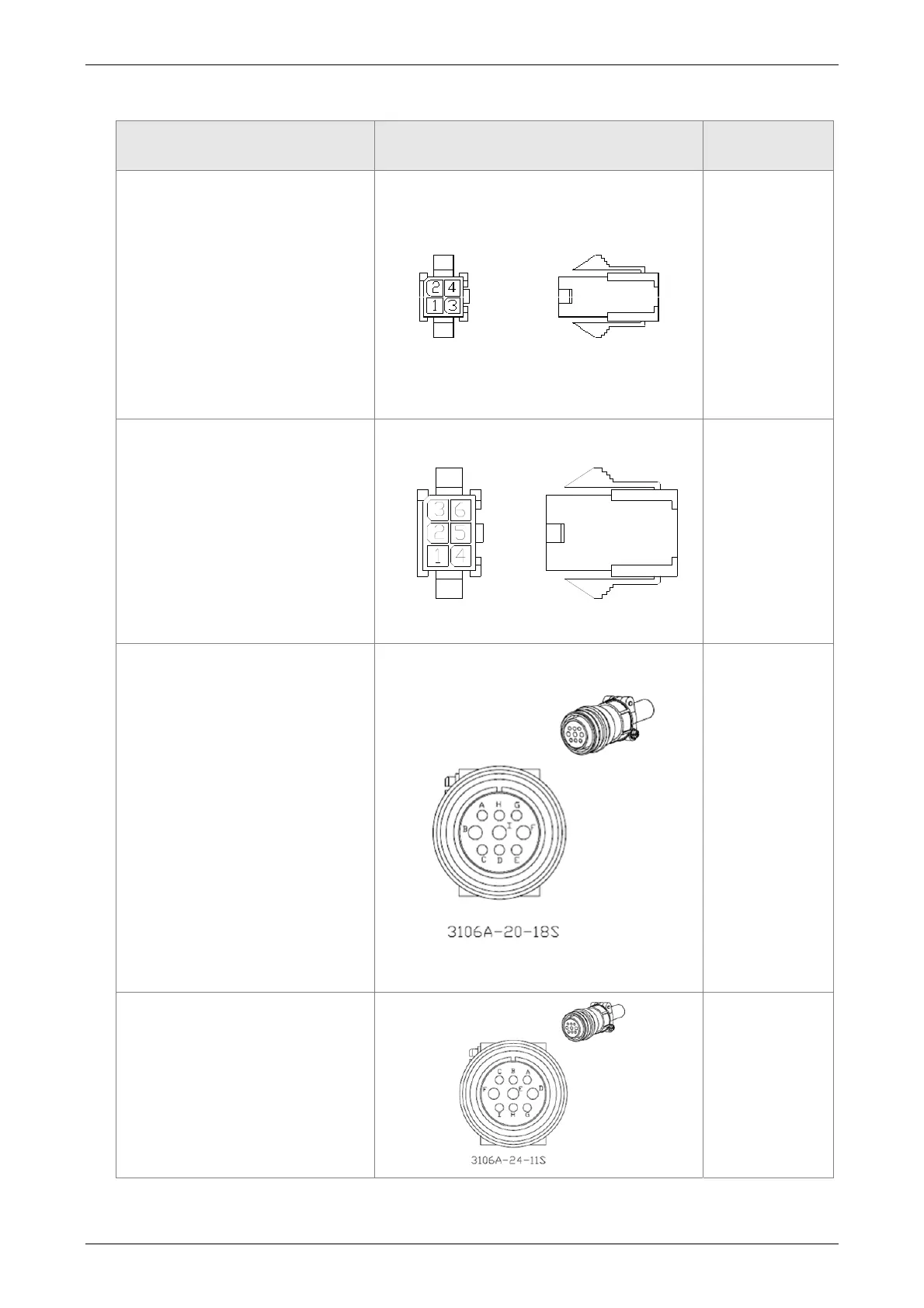

3.1.4 Specification of Motor Power Cable
Motor Model U, V, W / Connector of Brake
Terminal
Definition
ECMA-C1040FS (50W)
ECMA-C
△
0401S (100W)
ECMA-C
△
0602S (200W)
ECMA-C
△
0604S (400W)
ECMA-C
△
0604H (400W)
ECMA-C
△
08047 (400W)
ECMA-C
△
0807S (750W)
ECMA-C
△
0807H (750W)
ECMA-C
△
0907S (750W)
ECMA-C
△
0910S (1000W)
A
ECMA-C1040FS (50W)
ECMA-C
△
0401S (100W)
ECMA-C
△
0602S (200W)
ECMA-C
△
0604S (400W)
ECMA-C
△
08047 (400W)
ECMA-C
△
0807S (750W)
ECMA-C
△
0907S (750W)
ECMA-C
△
0910S (1000W)
* : with brake
B
ECMA-G
△
1303S (300W)
ECMA-E
△
1305S (500W)
ECMA-F
△
1305S (500W)
ECMA-G
△
1306S (600W)
ECMA-F
△
1308S (850W)
ECMA-G
△
1309S (900W)
ECMA-C
△
1010S (1000W)
ECMA-E
△
1310S (1000W)
ECMA-F
△
1313S (1300W)
ECMA-E
△
1315S (1500W)
ECMA-F△1318S (1800W)
ECMA-C
△
1020S (2000W)
ECMA-E
△
1320S (2000W)
ECMA-C
△
13304 (3000W)
C
ECMA-E
△
1820S (2000W)
ECMA-E
△
1830S (3000W)
ECMA-F
△
1830S (3000W)
ECMA-E
△
1835S (3500W)
ECMA-F
△
1845S (4500W)
D
