Delta ASD-M-0721-F User Manual

Chapter 8 Parameters ASDA-M
8-118 Revision December, 2014

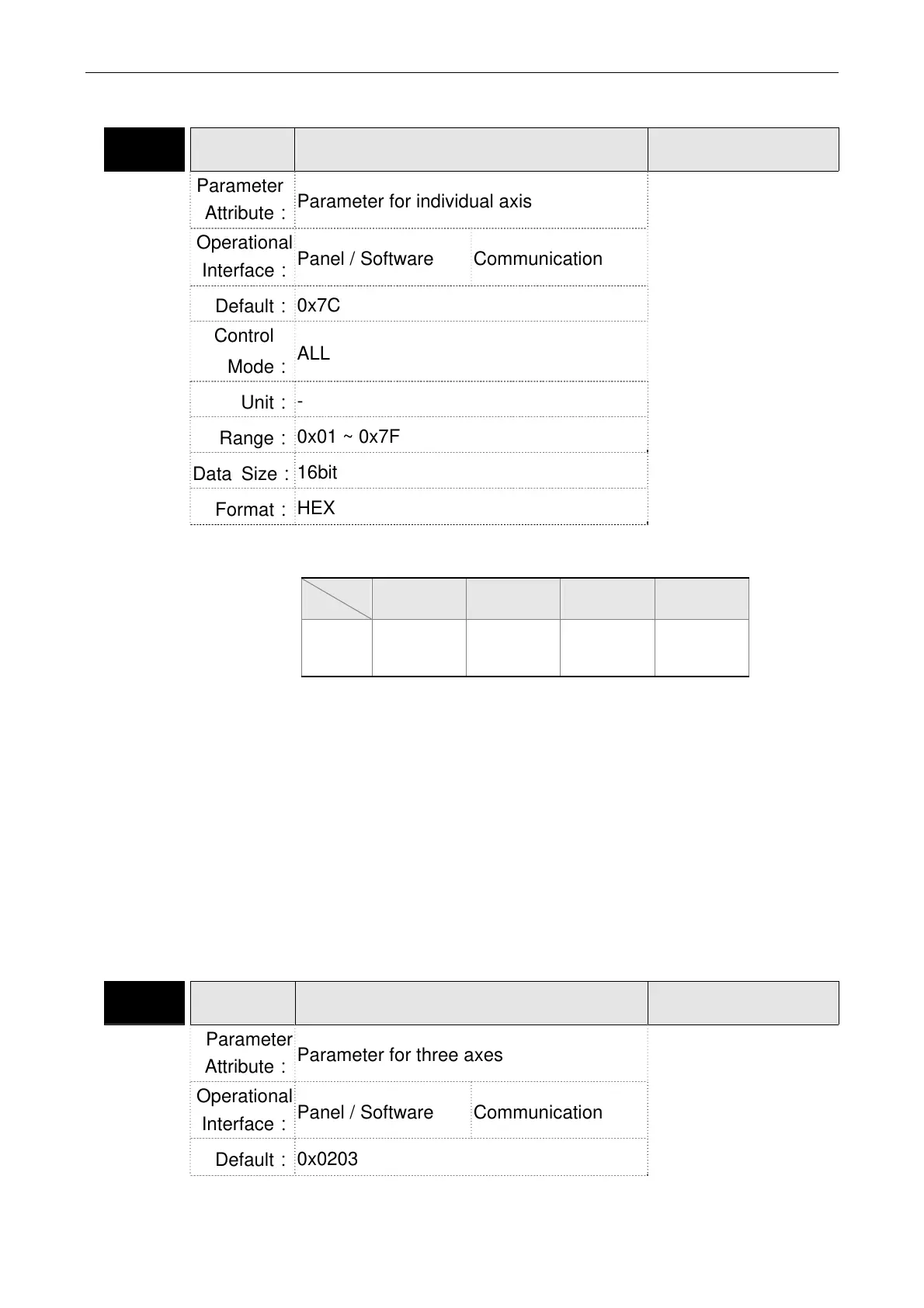

P3-xx Communication Parameters
P3-00●
ADR Address Setting
Address: 0300H
0301H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 9.2
Operational
Interface：
Panel / Software Communication
Default：
0x7C
Control
Mode：
ALL
Unit：
-
Range：
0x01 ~ 0x7F
Data Size：
16bit
Format：
HEX
Settings：
The communication address setting is divided into Y, X
(hexadecimal):
0 0 Y X
Range
－ －
0 ~ 7 0 ~ F
When using RS-232/RS-485 to communicate, one servo drive
can only set one address. The duplicate address setting will
cause abnormal communication.
In this servo drive, the 3-axis address setting should be unique.
The duplicate address will cause abnormal communication.
This address represents the absolute address of the servo drive
in communication network. It is also applicable to RS-232/485
and CAN bus.
When the communication address setting of MODBUS is set to
0xFF, the servo drive will automatically reply and receive data
regardless of the address. However, P3-00 cannot be set to 0xFF.
P3-01 BRT Transmission Speed
Address: 0302H
0303H
Parameter
Attribute：
Parameter for three axes
Related Section:
Section 9.2
Operational
Interface：
Panel / Software Communication
Default：
0x0203
