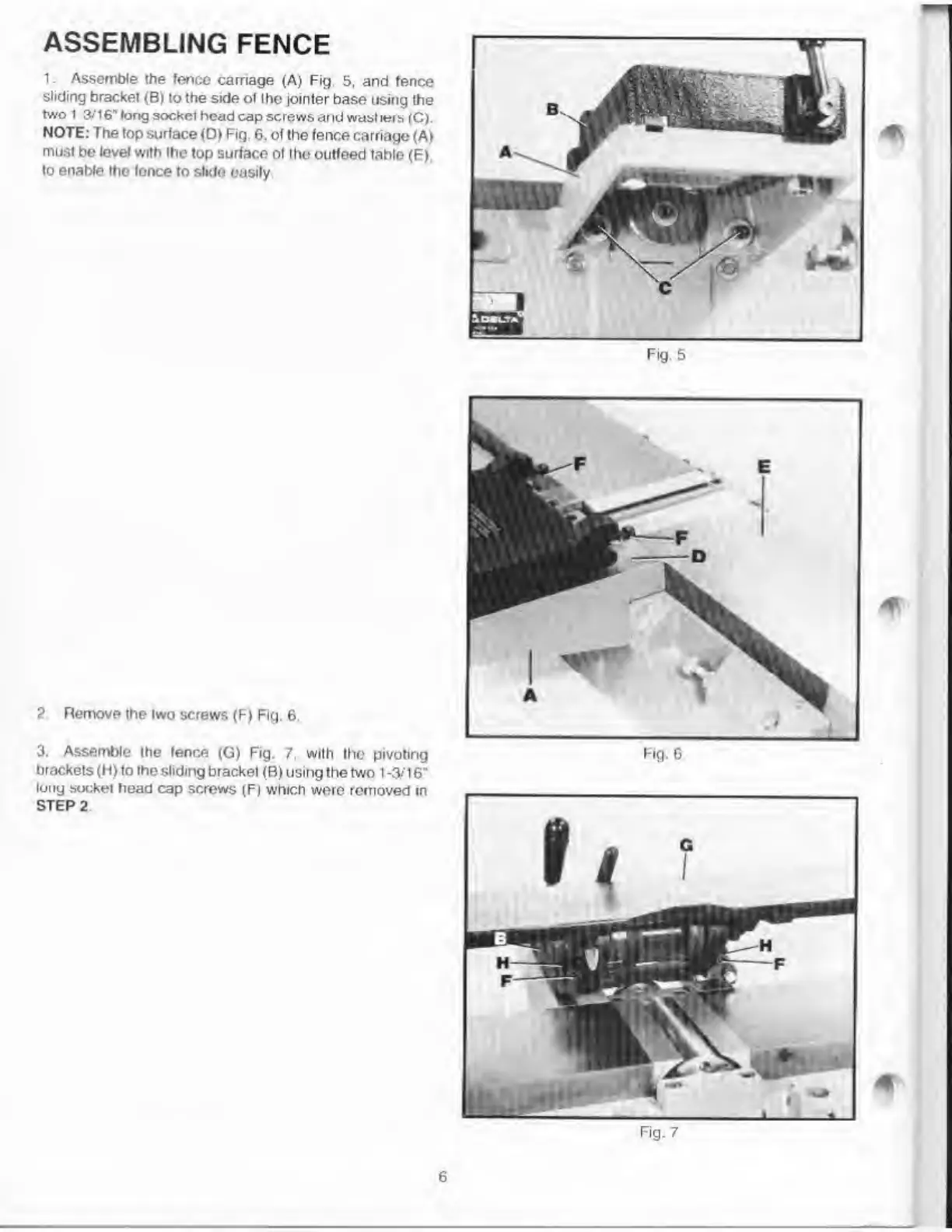

ASSEMBLING FENCE
1. A ssemble the fence carriage (A) Fig b, and fence
sliding bracket (B) to the side ol the jointer base using the
two 1 3/16" long socket head cap screws and washeis (C).
NOTE: The top surface (D) Fig 6. of the fence carriage (A)
must be level with the top surface of the outfeed table (F),
to enable Ihe fence to sltdc easily.
2. Remove the two screws (F) Fig. 6.
3. Assemble the fence (G) Fig. 7, with the pivoting
brackets (H) to the sliding bracket <B> using the two t -3- I6"
lung socket tiead cap screws |Fj which were removed in
STEP 2
