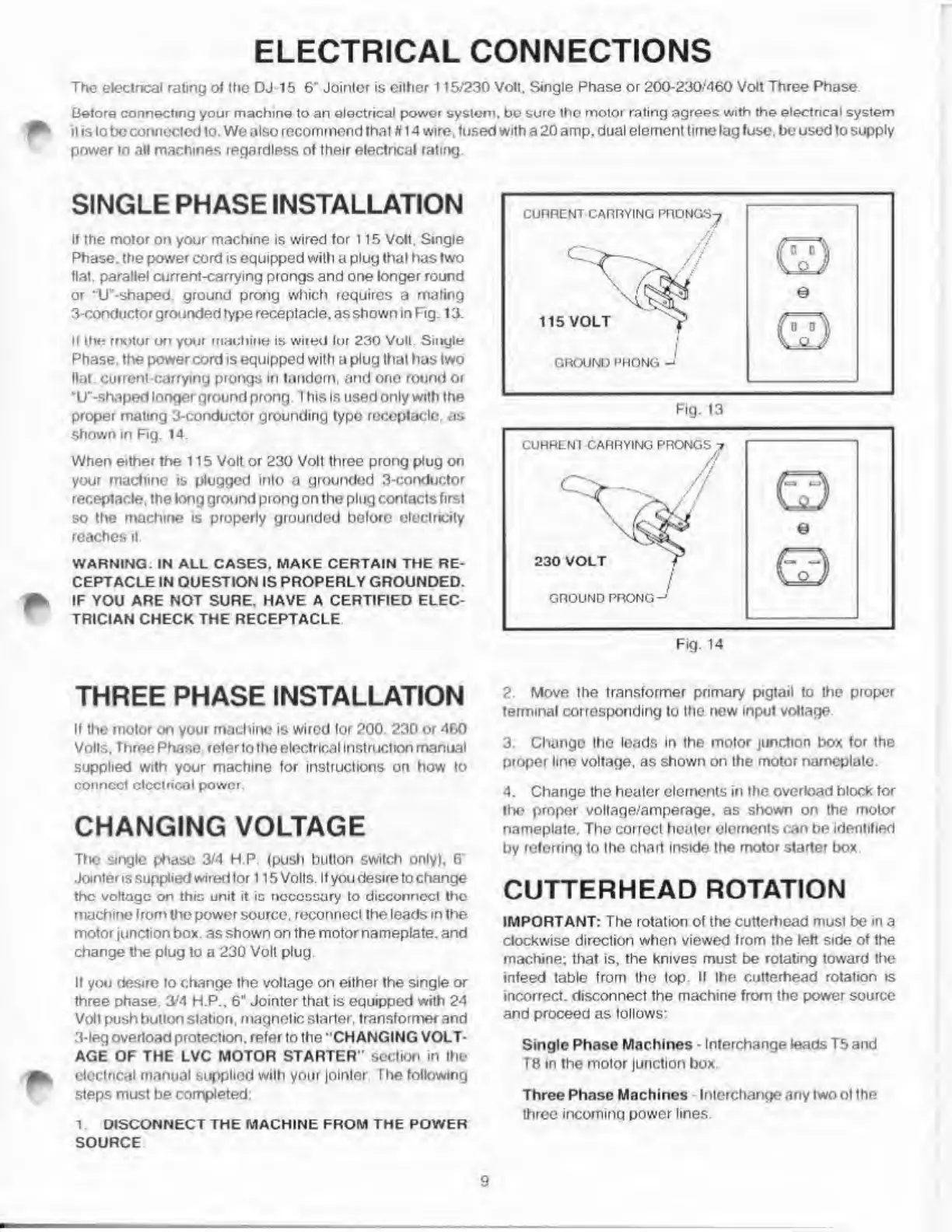

ELECTRICAL CONNECTIONS
The electrical rating of the DJ 15 6' Jointer is either 115/230 Volt, Single Phase or 200-230/460 Volt Three Phase
Before connecting your machine to an electrical power system, bo sure the motor rating agrees with the electncal system
it is to be connected to. We also recommend that tt 14 wire, fused with a 20 amp. dual element time lag fuse, be used to supply
power to all machines regardless of their electrical rating.
SINGLE PHASE INSTALLATION
If the motor on your machine is wired for 115 Volt, Single
Phase, the power cord is equipped with a plug that has two
Hat. parallel current-carrying prongs and one longer round
or ‘U -shaped, ground prong which requires a mating
3-conductor grounded type receptacle, as shown in Fig. 13.
II the motor on your machine is wired lor 230 Volt. Single
Phase, the power cord is equipped with a plug that has two
Hat. current-carrying prongs in tandem, and one round or
“U"-shaped longer ground prong. I his is used only with the
proper mating 3-conductor grounding type receptacle, as
shown in Fig. 14.
When either the 115 Volt or 230 Volt three prong plug on
your machine is plugged into a grounded 3-conductor
receptacle, the long ground prong on the plug contacts first
so the machine is properly grounded before electricity
reaches if.
WARNING. IN ALL CASES. MAKE CERTAIN THE RE¬
CEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE. HAVE A CERTIFIED ELEC¬
TRICIAN CHECK THE RECEPTACLE
THREE PHASE INSTALLATION
If the motor on your machine is wired lor 200. 230 or 460
Volls, Three Phase, reter to the electrical instruction manual
supplied with your machine for instructions on how to
connect electrical power.
CHANGING VOLTAGE
The single phase 3/4 H P (push butlon switch only). 6’
Jointer is supplied wired lor 115 Volls. It you desire to change
the voltage on this unit it ic nocoseary to disconnect the
machine from the power source, reconnect the leads in the
motor junction box. as shown on the motor nameplate, and
change the plug to a 230 Volt plug.
If you desire to change the voltage on either the single or
three phase, 3/4 H.P.. 6" Jointer that is equipped with 24
Volt push buttonstation, magnetic starter, transformer and
3-leg overload protection, refer to the “CHANGING VOLT¬
AGE OF THE LVC MOTOR STARTER" section in the
electrical manual supplied wilh your jointer I he following
steps must be completed:
2 Move the transformer primary pigtail to the proper
terminal corresponding to the new input voltage.
3. Change the loads in the motor junction box for the
proper line voltage, as shown on the motor nameplate.
4. Change the heater elements in the overload block tor
the proper voltage/amperage, as shown on the motor
nameplate. The correct heater elements can be identified
by referring to the chart inside the motor starter box
CUTTERHEAD ROTATION
IMPORTANT: The rotation of the cutterhead musl be in a
clockwise direction when viewed from the left side of the
machine; that is, the knives must be rotating toward the
infeed table from the lop. It the cutterhead rotation is
incorrect, disconnect the machine from the power source
and proceed as follows:
Single Phase Machines - Interchange leads T5 and
T8 in the motor junction box.
Three Phase Machines Interchange any two ol the
three incoming power lines.
1 DISCONNECT THE MACHINE FROM THE POWER
SOURCE
9
