5.5 Types of Sequences
Single Sequence: The basic type of sequence
The first step in a step ladder diagram is called initial step, ranged as S0 ~ S9. The steps following
the initial step are general steps numbered as S10 ~ S1023. When IST instruction is applied, S10 ~
S19 will become the steps for zero return operation.
1. Single Sequence without Divergence and Convergence
After a sequence is completed, the control power on the steps will be transferred to the initial
step.
M1002
ZRST S0 S127
SET S0
SET S20
Y0
SET S30
Y1
SET S40
Y4
S0
RET
END
X0
S0
S
S20
S
X1
S30
S
X2
S60
S
X5
Y2
SET S50
S40
S
X3
Y3
SET S60
S50
S
X4

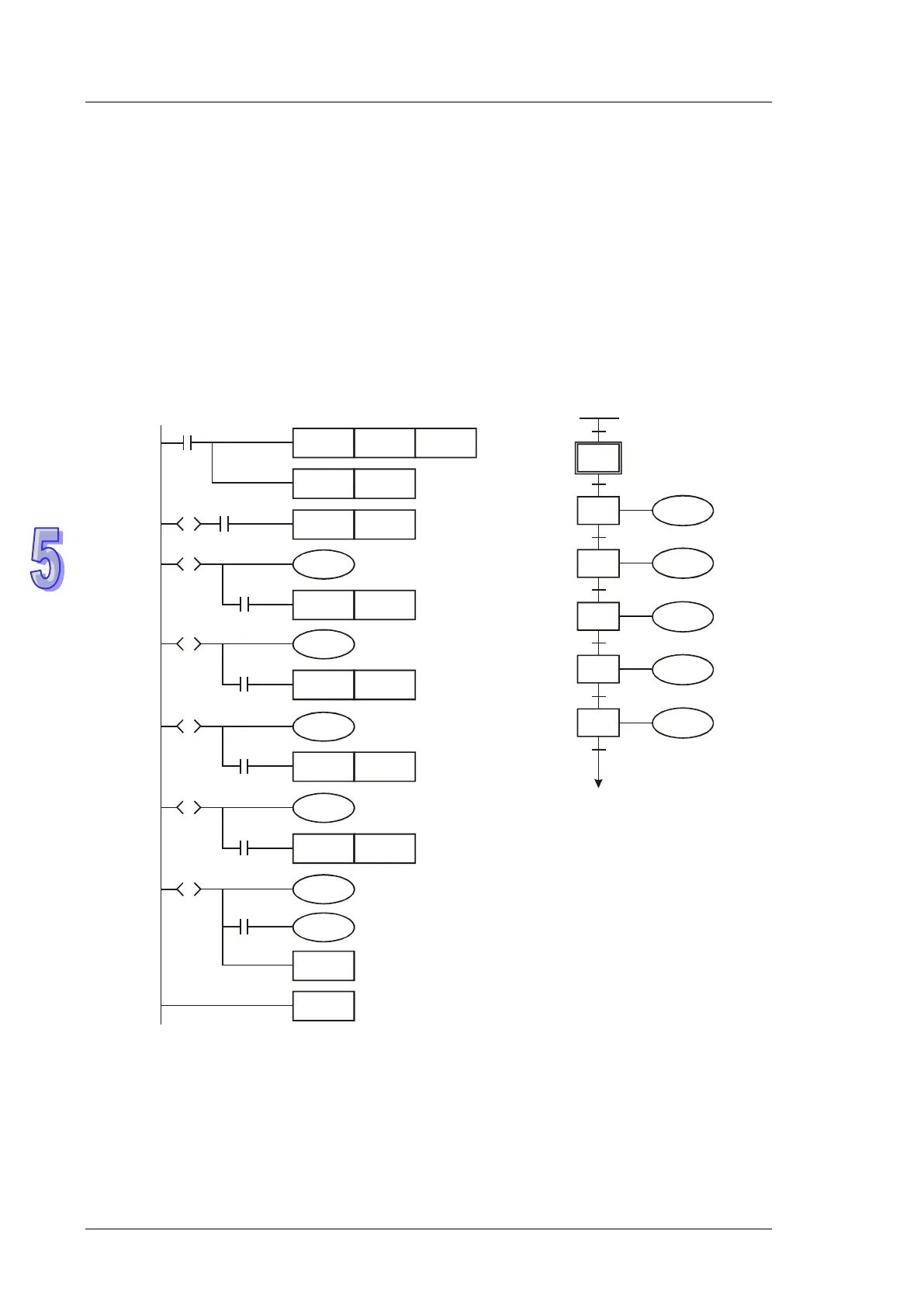

Step Ladder Diagram
S0
S20
S30
S4
0
S0
M1002
X0
X1
X2
X5
Y0
Y1
Y2
SFC diagram
S50
X3
Y3
S60
X4
Y4
