Appendix B
Digital Input
To implementation of power management, the digital input interface receives the specifications
of the network operator via a ripple control receiver.
• Germany : The active power limitation in the stages 0%, 30%, 60% and 100%
• Italy : Power output of Max 6KW for PV plant installation.
Remote shutdown
Narrow Frequency limits between 49.5 Hz to 50.5Hz.
• Australia and New Zealand:
The inverter support the demand response mode(DRMs).
DRM 0 - Operate the disconnection device.
DRM 5 - Do not generate power.
DRM 6 - Do not generate at more than 50% of rated power.
DRM 7 - Do not generate at more than 75% of rated power.
And sink reactive power.
DRM 8 - Increase power generation.
(subject to constraints from other active DRMs)
• Customer : User defined.

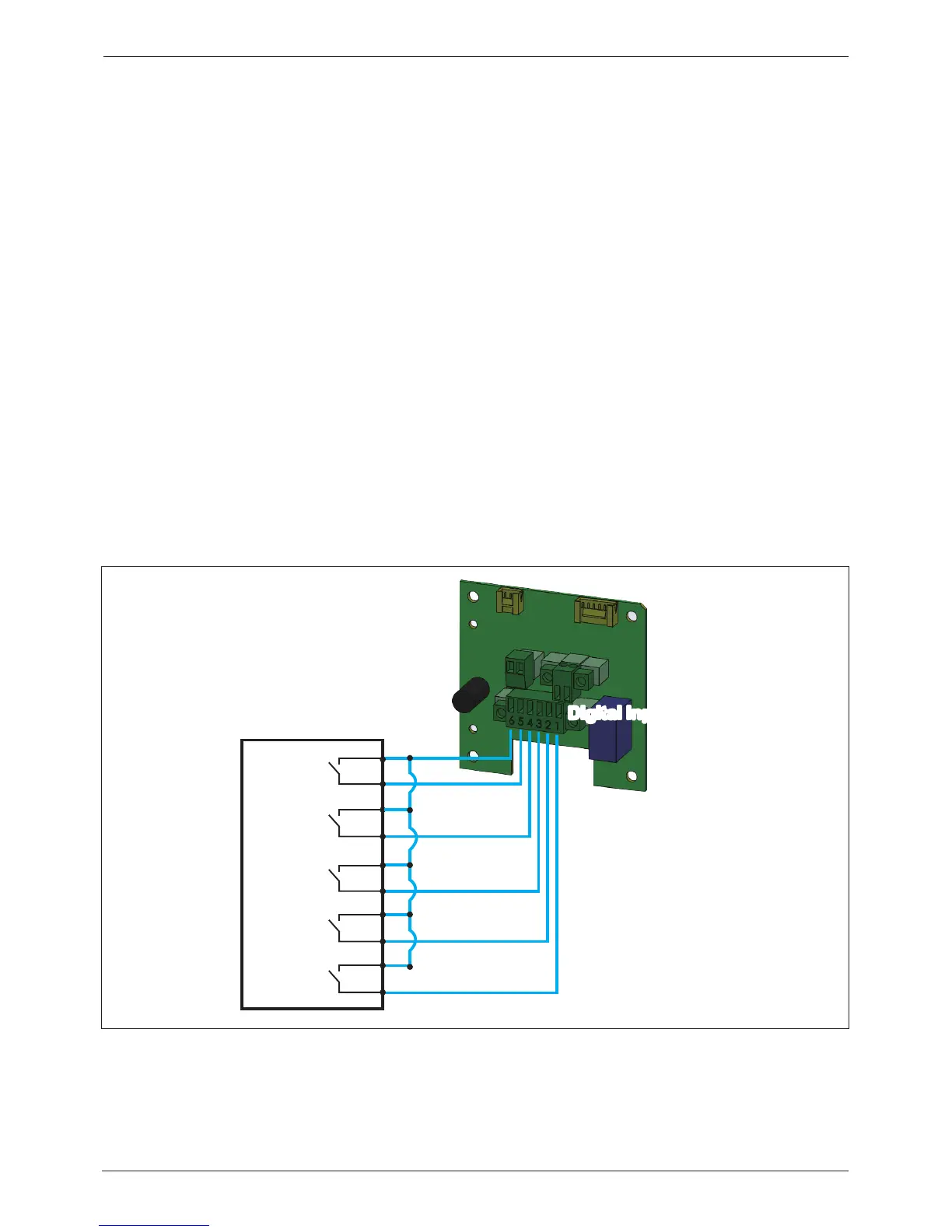

Figure B-1 : Pin assignment at ripple control receiver
The inverter gives a voltage to Pin 6, and measures Pin 1 to 5.
The inverter can detect the state of the relay of the ripple control receiver.
The information which relay shall be controlled parameter by the network operator.
Ripple control receiver
Digital inputDigital input
D5
D4
D3
D2
D1
58
Appendix B
