Delta VFD022EL43W User Manual

Chapter 4 Parameters  VFD-EL-W
4-55
Settings Function Description

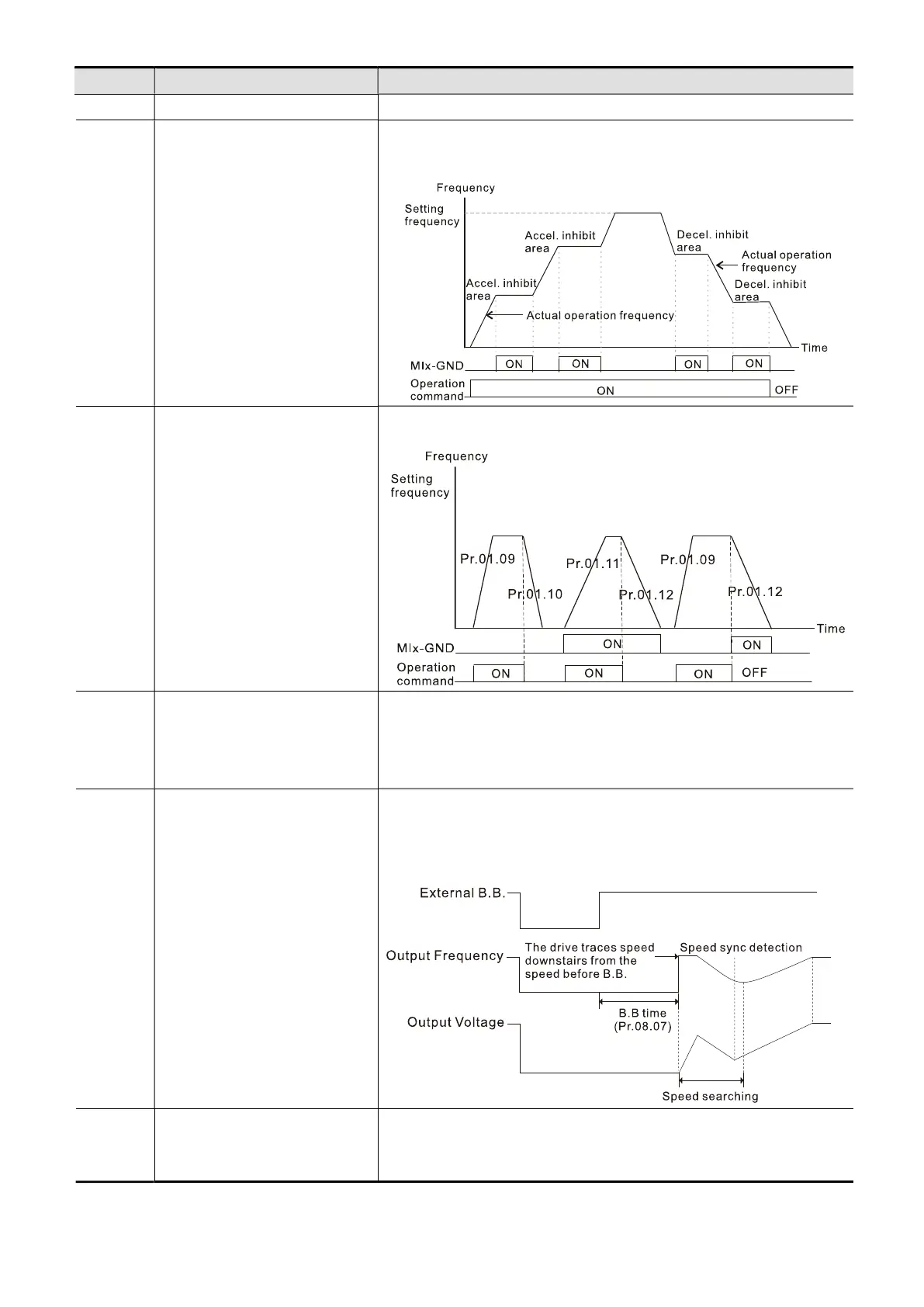

5 External Reset Use this terminal to reset the drive after drive faults are cleared.
6 Accel./ Decel. Inhibit
When you enable this function, the drive stops acceleration and
deceleration immediately. The AC motor drive resumes from the
inhibit point once this function is disabled.
7
The 1
st
, 2
nd
acceleration or
deceleration time selection
Selects the acceleration and deceleration time of the drive with this
terminal; there are two acceleration and deceleration selections.
8 JOG Operation Control
Executes the JOG operation only when the drive stops completely.
While running, you can still change the operation direction, and the
STOP key on the keypad is valid. Once the external terminal
receives the OFF command, the motor stops in the JOG
deceleration time. Refer to Pr.01.13–Pr.01.15 for details.
9
External Base Block
(Refer to Pr.08.06)
When the AC motor drive receives a Base Block signal, it blocks all
output and the motor coasts. When Base Block control is
deactivated, the AC drive starts its speed search function and
synchronizes with the motor speed. It then accelerates to the
Master Frequency. Refer to Pr.08.06–Pr.08.07 for details.
10
UP: Increase Master
Frequency
ON: the frequency of the drive increases or decreases by one unit.
If this function remains ON continuously, the frequency increases or
decreases according to Pr.02.07 / Pr.02.08 settings.
