Chapter 7 Optional AccessoriesC2000 Plus
7-92

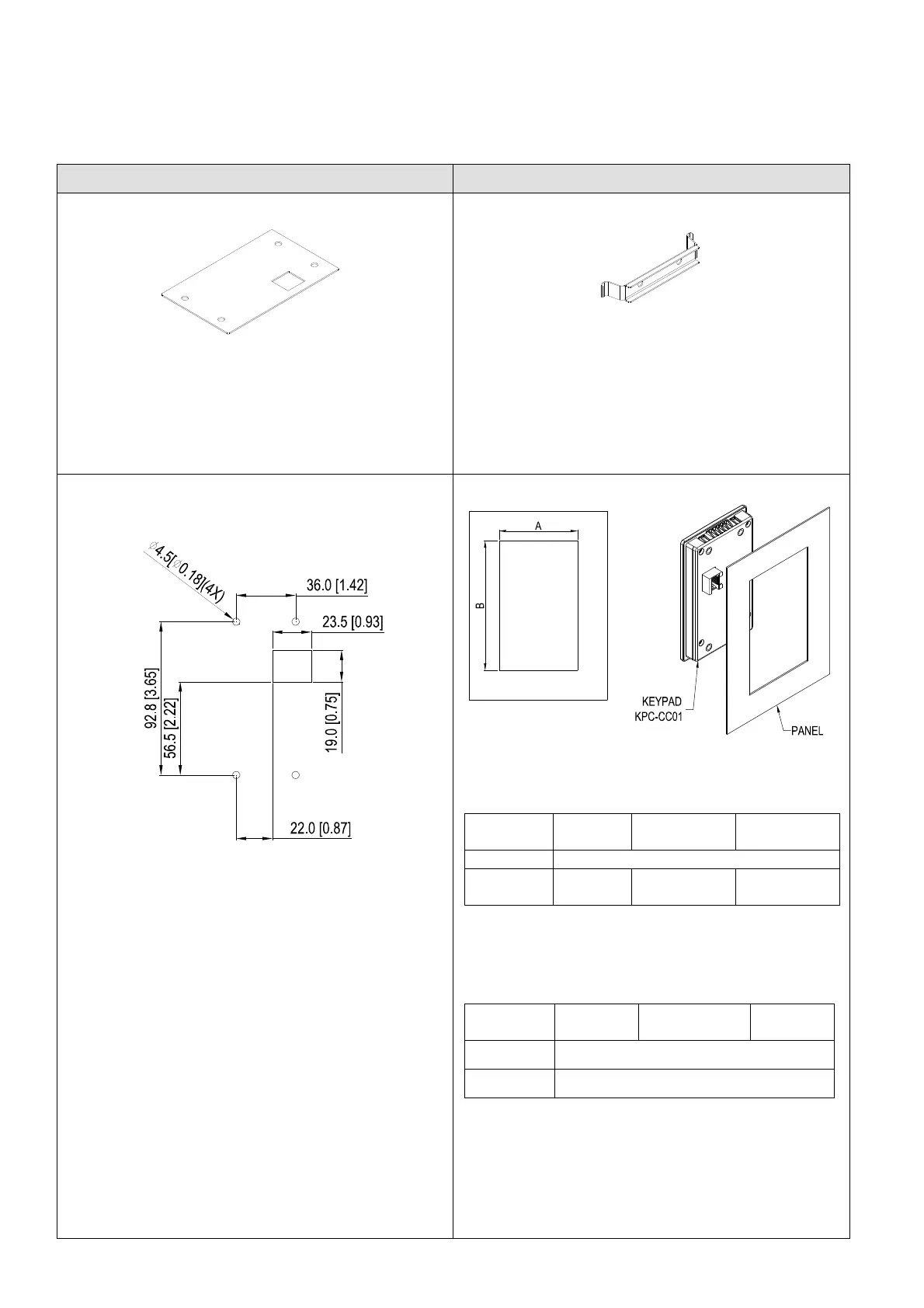

7-7 Panel Mounting (MKC-KPPK)
For MKC-KPPK model, user can choose wall mounting or embedded mounting, protection level is IP66.
Applicable to the digital keypads (KPC-CC01)
Wall Mounting Embedded Mounting
Accessories*1
Figure 7-80
Screw *4 –M4*p 0.7 *L8mm
Torque: 10–12 kg-cm / (8.7–10.4 lb-in.) /
(1.0–1.2 Nm)
Accessories*2
Figure 7-83
Screw *4 –M4*p 0.7 *L8mm
Torque: 10–12 kg-cm / (8.7–10.4 lb-in.) /
(1.0–1.2 Nm)
Panel cutout dimension
Unit: mm (inch)
Figure 7-81
Panel cutout dimension Unit: mm (inch)
Figure 7-84
Normal cutout dimension
Panel
thickness
1.2 mm 1.6 mm 2.0 mm
A 66.4 (2.614)
B
110.2
(4.339)
111.3
(4.382)
112.5
(4.429)
*Deviation: ±0.15mm /±0.0059inch
Cutout dimension (Waterproof level: IP66)
Panel
thickness
1.2 mm 1.6 mm 2.0 mm
A 66.4 (2.614)
B 110.8 (4.362)
*Deviation: ±0.15mm / ±0.0059inch Table 7-86
Table 7-85
