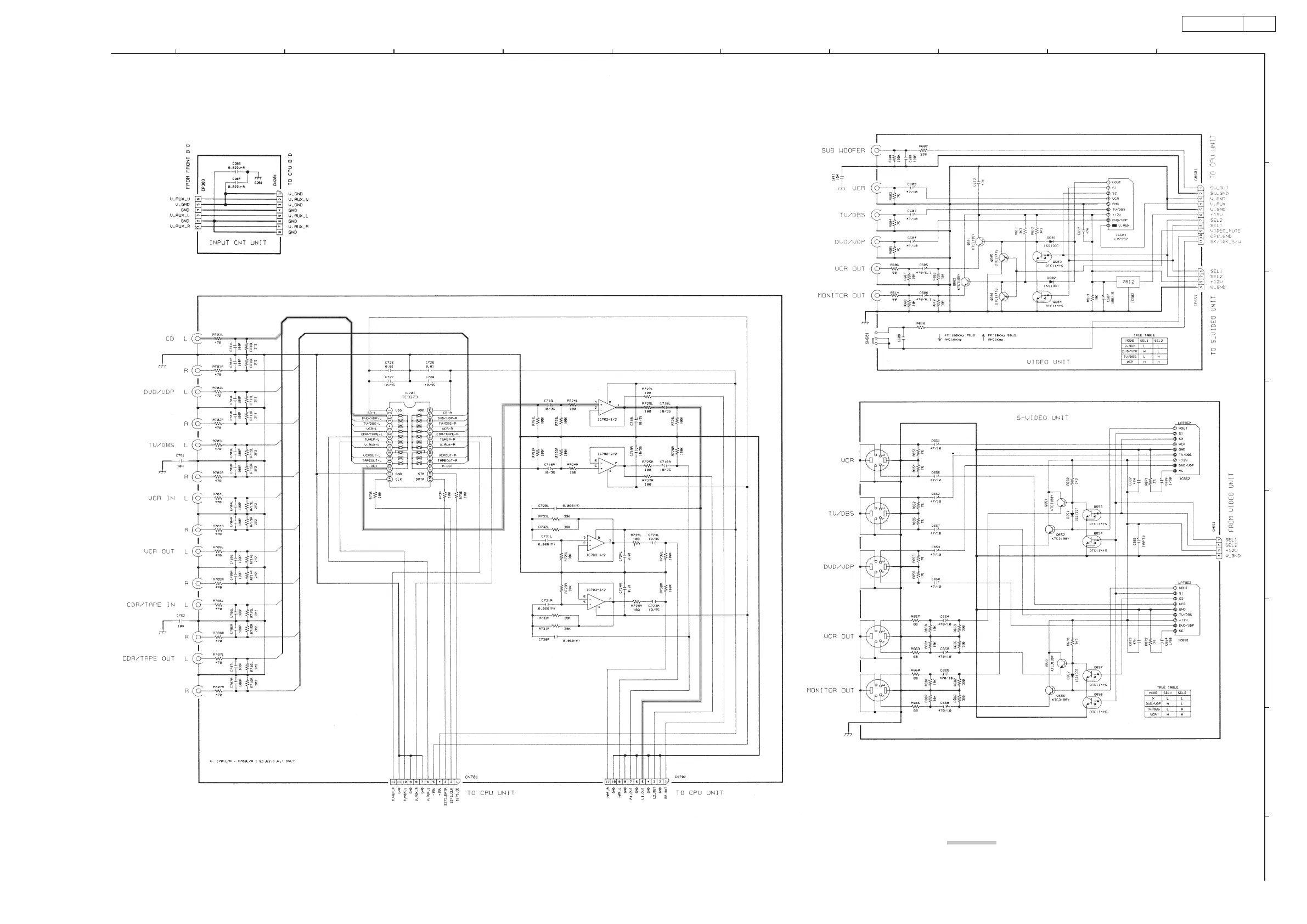

SCHEMATIC DIAGRAMS (1/7)
AVR-1404/484
53
53
SCHEMATIC DIAGRAMS (1/7)
INPUT UNIT
C-VIDEO UNIT
S-VIDEO UNIT
INPUT CNT UNIT
SIGNAL LINE
