Denon AVR-2105 Operating Instructions

6

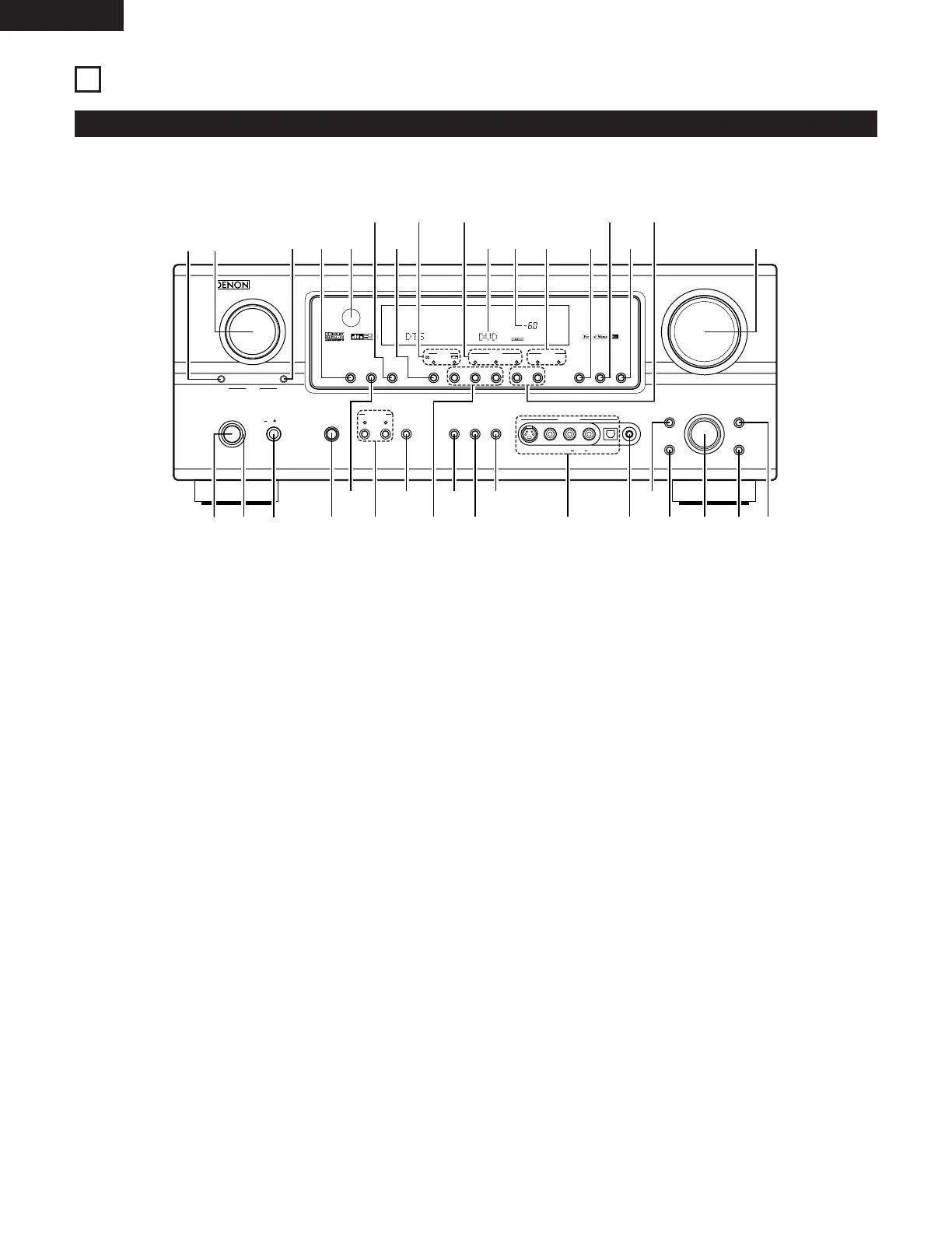

PART NAMES AND FUNCTIONS
Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
SELECT
AUTO
INPUT MODE EXT. IN BAND SHIFT ª•ªTUNINGPRESET • DIMMER STATUS
SURROUND
BACK
ZONE 2
PCM
DTS
SIGNAL
DIGITAL
INPUT
OUTPUT
ANALOG
VIDEO SELECT
S-VIDEO OPTICAL SETUP MICVIDEO
V.AUX INPUT
L
AUDIO
R
MAIN SOURCE ZONE 2 /
REC SELECT
AB
SPEAKER
STANDARD
5CH / 7CH
STEREO
DIRECT /
STEREO
SURROUND
BACK
SURROUND
PARAMETER
TONE
DEFEAT
SURROUND 
MODE
TONE 
CONTROL
ON / STANDBY
MASTER VOLUME
FUNCTION
AVR-2105
AV SURROUND RECEIVER
ON OFF
PHONES
SELECT
VOLUME LEVEL
#5 #4 #1#3 @9#2
#0
@8
@6 @5 @4 @1 !9@3
@2
@0@7
r y i !0 !2 !5!3 !6 !7 !8
q
w
t
e
u o !1 !4
q
Power ON/STANDBY switch .......................................(21, 39, 61)
w
Power indicator..................................................................(21, 39)
e
Power switch.....................................................................(21, 39)
r
Headphones jack (PHONES)....................................................(43)
t
ANALOG button.................................................................(40, 42)
y
SPEAKER A/B buttons .......................................................(39, 64)
u
SURROUND BACK button.......................................................(54)
i
Preset station select buttons...................................................(63)
o
STANDARD button.................................................(48, 50, 52, 54)
!0
5CH/7CH STEREO button........................................................(58)
!1
DIRECT/STEREO button...........................................................(42)
!2
V. AUX INPUT terminals.......................................................(5, 12)
!3
SETUP MIC jack.......................................................................(22)
!4
SURROUND MODE button......................................................(41)
!5
SURROUND PARAMETER button.....................................(50, 58)
!6
SELECT knob ...............................................................(41, 51, 59)
!7
TONE DEFEAT button..............................................................(43)
!8
TONE CONTROL button..........................................................(43)
!9
MASTER VOLUME control ......................................................(41)
@0
TUNING • (up) / ª (down) buttons..........................................(62)
@1
STATUS button.........................................................................(44)
@2
DIMMER button.......................................................................(44)
@3
VIDEO SELECT button.............................................................(43)
@4
OUTPUT indicator ..............................................................(47, 54)
@5
MASTER VOLUME indicator....................................................(41)
@6
Display
@7
INPUT mode indicator..............................................................(41)
@8
SIGNAL indicator......................................................................(41)
@9
BAND button............................................................................(62)
#0
EXT. IN button....................................................................(40, 42)
#1
Remote control sensor.............................................................(18)
#2
INPUT MODE button .........................................................(40, 42)
#3
ZONE2/REC SELECT button..............................................(44, 47)
#4
FUNCTION knob ..........................................................(40, 44, 47)
#5
MAIN button.............................................................................(40)
16
ENGLISH
