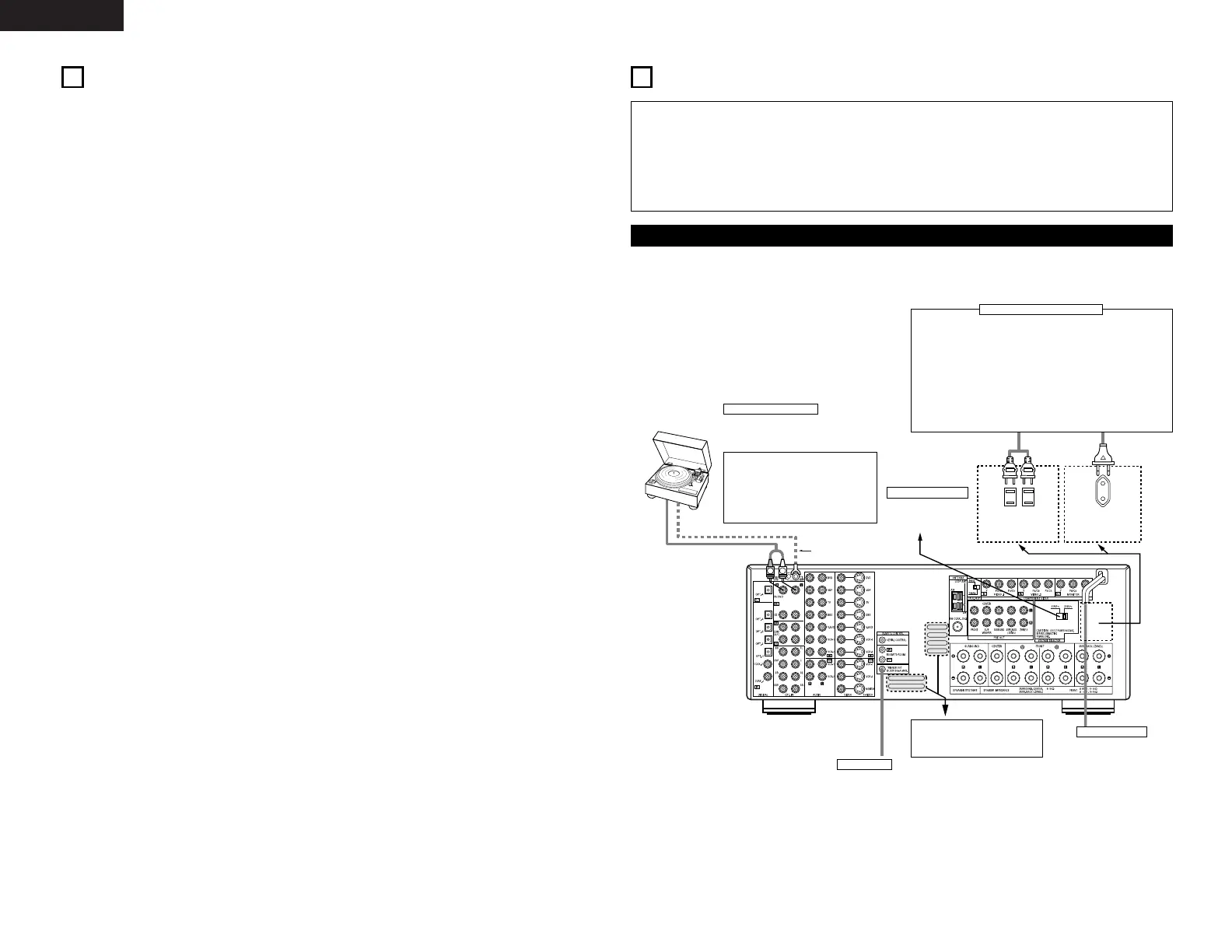

Connecting a Turntable
Connect the Turntable’s output cord to the
AVR-2803’s PHONO jacks, the L (left) plug to
the L jack, the R (right) plug to the right jack.
NOTES:
• This unit cannot be used with MC
cartridges directly. Use a separate head
amplifier or step-up transformer.
• If humming or other noise is generated
when the ground wire is connected,
disconnect the ground wire.
Turntable
(MM cartridge)
Ground wire
• When making connections, also refer to the operating instructions of the other components.
The power to these outlets is turned on and off when the power is switched between on and standby from
the remote control unit or power switch.
Power supply cord
AC 120 V, 60 Hz
(Taiwan R.O.C. model)
AC 115/230 V, 50/60 Hz
(Multiple voltage model)
TRIGGER OUT
Turn the DC 12V voltage on and off for the individual functions.
For details, see “Setting the Trigger Out Setup” on page 16.
Connecting the AC OUTLTETS
AC OUTLETS
• SWITCHED
(total capacity – 120 W – for Taiwan R.O.C. model)
(total capacity – 100 W – for Multiple voltage model)
The power to these outlets is turned on and off in conjunction with the
POWER operation switch on the main unit, and when the power is
switched between on and standby from the remote control unit.
No power is supplied from these outlets when this unit’s power is at
standby. Never connect equipment whose total capacity is above 120
W for Taiwan R.O.C. model (100 W for Multiple voltage model).
NOTE:
Only use the AC OUTLETS for audio equipment. Never use them for
hair driers, TVs or other electrical appliances.
Route the connection cords, etc., in
such a way that they do not
obstruct the ventilation holes.
VOLTAGE SELECTOR
For multiple voltage
model only
(Refer to page 3)
4
FEATURES
1. Digital Surround Sound Decoding
Featuring 32 bit high speed DSP, operating entirely
in digital domain, surround sound from digital
sources such as DVD, LD, DTV and satellite are
faithfully re-created.
2. DTS 96/24 compatibility
The AVR-2803 can be decoded with sources
recorded in DTS 96/24, a new multi-channel digital
signal format developed by Digital Theater
Systems Inc.
DTS 96/24 sources can be played in the multi-
channel mode on the AVR-2803 with high sound
quality of 96 kHz/24 bits or 88.2 kHz/24 bits.
3. DTS-ES Extended Surround and DTS Neo:6
The AVR-2803 is compatible with DTS-ES Extended
Surround, a new multi-channel format developed by
Digital Theater Systems Inc.
The AVR-2803 is also compatible with DTS Neo:6, a
surround mode allowing 6.1-channel playback of
regular stereo sources.
4. DTS (Digital Theater Systems)
DTS provides up to 5.1 channels of wide-range,
high fidelity surround sound, from sources such as
laser disc, DVD and specially-encoded music
discs.
5. Dolby Digital
Using advanced digital processing algorithms,
Dolby Digital provides up to 5.1 channels of wide-
range, high fidelity surround sound. Dolby Digital
is the default digital audio delivery system for DVD
and North American DTV.
6. Dolby Pro Logic II decoder
Dolby Pro Logic II is a new format for playing
multi-channel audio signals that offers
improvements over conventional Dolby Pro Logic.
It can be used to decode not only sources
recorded in Dolby Surround but also regular stereo
sources into five channels (front left/right, center
and surround left/right). In addition, various
parameters can be set according to the type of
source and the contents, so you can adjust the
sound field with greater precision.
7. Dolby Digital EX decoder system
Dolby Digital EX is a 6.1-channel surround format
proposed by Dolby Laboratories that allows users
to enjoy in their homes the “DOLBY DIGITAL
SURROUND EX” audio format jointly developed
by Dolby Laboratories and Lucas Films and first
used for the movie “Star Wars Episode 1 –
Phantom Menace”.
The 6.1 channels of sound, including surround
back channels, provide improved sound
positioning and expression of space.
8. Wide screen mode for a 7.1-channel sound
even with 5.1-channel sources
DENON has developed a wide screen mode with
a new design which recreates the effects of the
multi surround speakers in movie theaters. The
result is 7.1-channel sound taking full advantage of
surround back speakers, even with Dolby Pro
Logic or Dolby Digital/DTS 5.1-channel signals.
9. Multi Zone Music Entertainment System
Multi Source Function:
This unit’s Multi Source function lets you select
different audio sources for listening Different
sources can thus be enjoyed in the main room
(MAIN) and the subroom (ZONE 2)
simultaneously.
10. Component Video Switching
In addition to composite video and “S” video
switching, the AVR-2803 provides 2 sets of
component video (Y, P
B/CB
, PR/CR) inputs, and one
set of component video outputs to the television,
for superior picture quality.
11. Video Select Function
Allow you to watch one source (visual) while
listening to another source (audio).
12. Future Sound Format Upgrade Capability via
Eight Channel Inputs & Outputs
For future multi-channel audio format(s), the AVR-
2803 is provided with 7.1 channel (seven main
channels, plus one low frequency effects channel)
inputs, along with a full set of 7.1 channel pre-amp
outputs, controlled by the 8 channel master
volume control. This assures future upgrade
possibilities for any future multi-channel sound
format.
