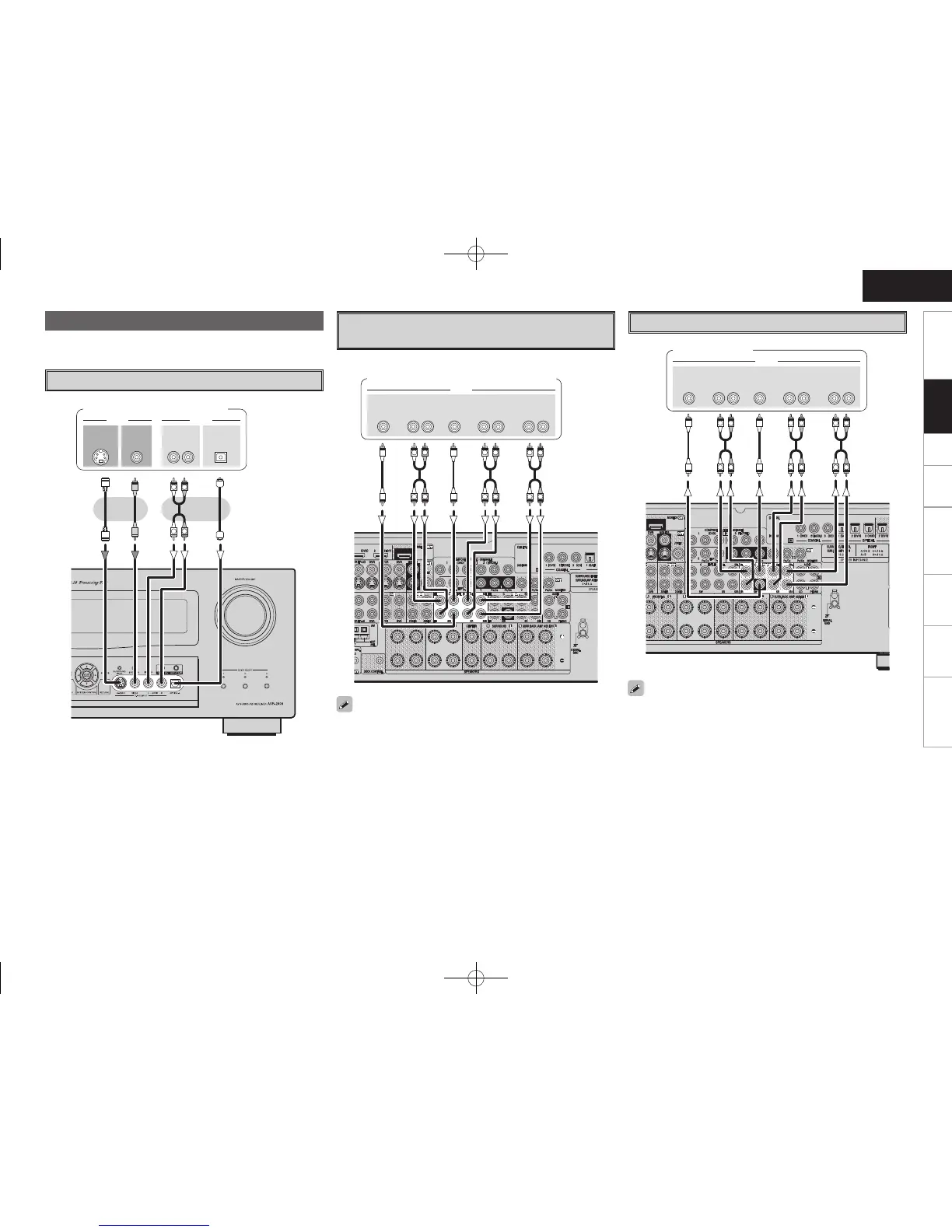

Video Camera / Game Console
Video camera / Game console
Component with Multi-channel Output
connectors
DVD player /
Super Audio CD player / External decoder
• To play the analog input signals input to the EXT. IN connectors, press
the INPUT MODE button on the main unit or INPUT button on the
main remote control unit and select “EXT. IN” or make the settings
at menu “Input Setup” – “Input Mode” – “Input Mode” – “EXT. IN”
(vpage 34).
• The video signal can be connected in the same way as a DVD player
(vpage 12).
• To play copyright-protected discs, connect the AVR-2808’s EXT.
IN connector with the DVD player’s analog multi-channel output
connector.
External Power Amplifier
When using just one surround back speaker, connect it to the left
channel (SBL).
Power amplifier
Carefully check the left (L) and right (R) channels and the inputs and
outputs, and be sure to interconnect correctly.
Connections to Other Devices
Connections
To Next Page
