Getting Started Settings Playback Remote ControlMulti-zone Information Troubleshooting Specifications
Connecting Devices
When connecting a 2nd device, connect to the TRIGGER OUT 2
terminal in the same way as the TRIGGER OUT 1 terminal.
TRIGGER OUT jacks
The TRIGGER OUT output terminal outputs a maximum 12
V/150 mA electrical signal. When a device with TRIGGER IN
terminal is connected via a monaural mini-plug, the connected
device’s power on/standby can be controlled through linked
operation to the AVR-3310CI.
n
Set to change the conditions for linked operation via the TRIGGER
OUT 1 or TRIGGER OUT 2 terminal.
“Trigger Out1” or “Trigger Out2” (vpage 43)
Set as Necessary
Extension jack for future use.
(Connect devices corresponding
with room to room function to
this jack.)
Infrared
retransmitter
Input Output
Infrared
sensor
REMOTE CONTROL jacksn

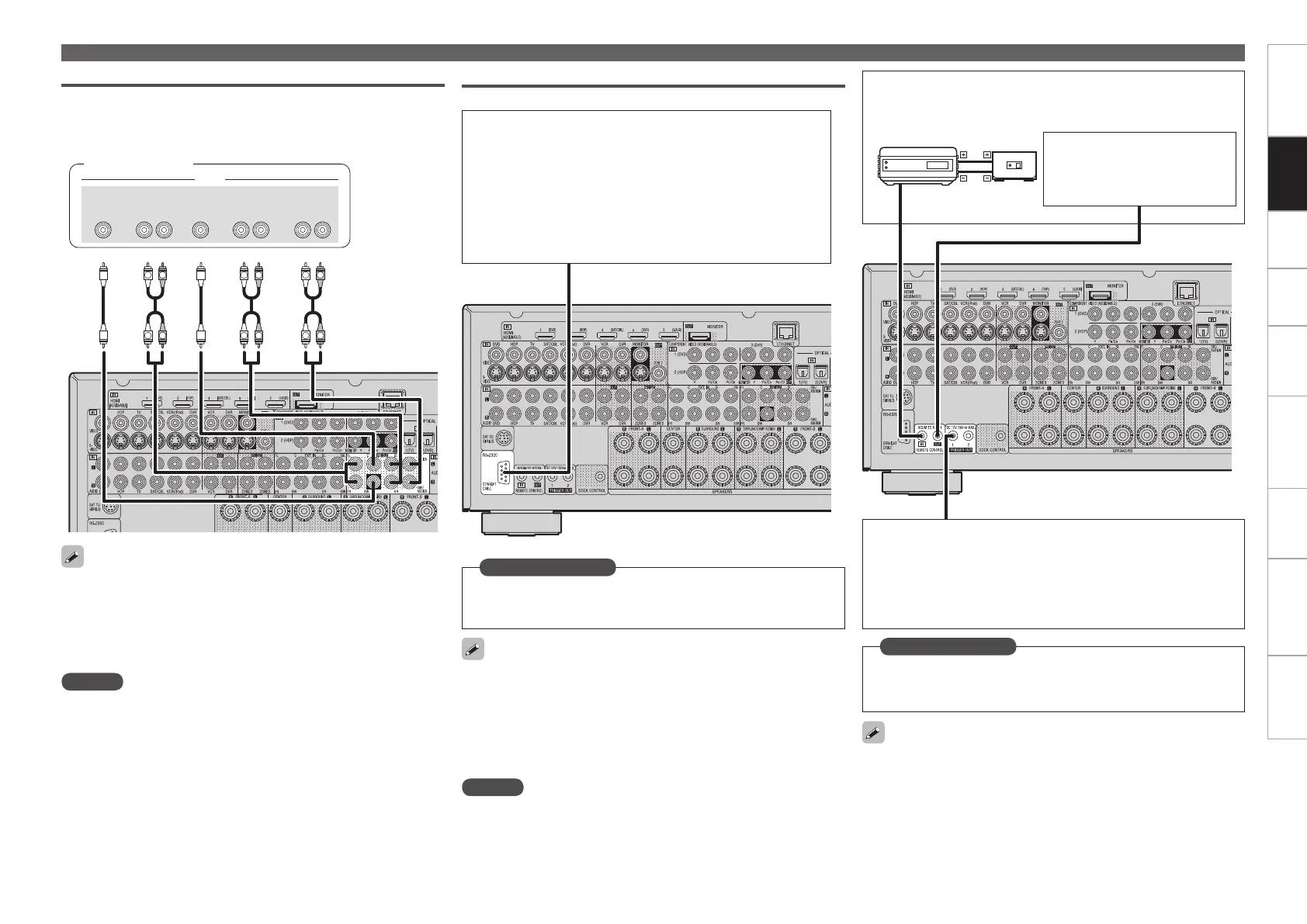

External Power Amplifier
Select the terminal to use and connect the device.
Connect when using an external power amp or an amp you already
have.
•
•
R
L
R
L
R
L
R
L
R
L
R
L
46#
800'&3
$&/5&3 463306/%
#"$,
3-
463306/%
3-
'30/5
3-
"6%*0
Power amplifier
When using just one surround back speaker, connect it to the left
channel (L).
Use the volume control on the subwoofer to control subwoofer
volume.
If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
•
•
•
NOTE
When speakers have been connected to PRE OUT terminals, do not
connect the speakers to the speaker terminals.
The channel output from the PRE OUT SBL and SBR terminals
changes depending on the “Amp Assign” setting (vpage 34).
•
•
External Controller
RS-232C connector
When you connect an external control device, you can control
the AVR-3310CI with the external control device. Perform
the operation below beforehand.
q Turn on the AVR-3310CI’s power.
w Turn off the AVR-3310CI’s power from the external
controller.
e Check that the AVR-3310CI is in the standby mode.
n
When using the AVR-3310CI in combination with the DENON
RF remote controller (RC-7000CI, sold separately) or RF remote
receiver (RC-7001RCI, sold separately), two-way communication is
enabled. The AVR-3310CI’s status information as well as iPod and
Internet audio music files can be browsed watching the RF Remote
Controller’s display. For details, refer to the operating instructions of
the respective devices.
Set this to use the RS-232C connector for the DENON RF remote
controller.
“232C Port” (vpage 43)
Set as Necessary
NOTE
On the GUI menu, when setting “232C Port” to “2Way Remote”, you
cannot use the RS-232C connector as an external controller (vpage
43).
Connections
To Next Page
