48
(3)

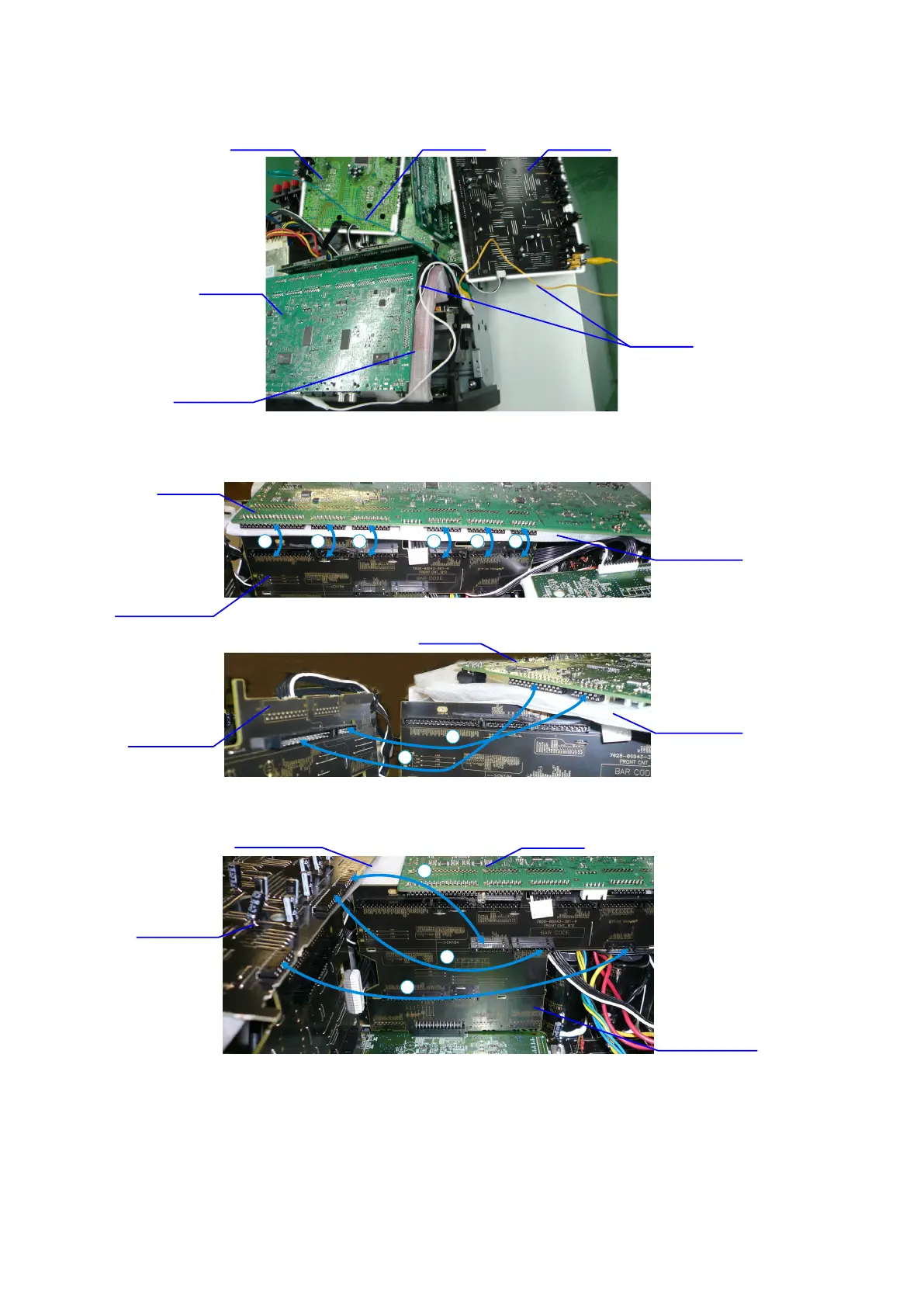

PCB HDMI is detached from the chassis, and it puts it into the state turned inside out.
Please pave an insulation sheet that is larger than PCB HDMI under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
(4)
Connect the four extension jig cables.
PCB HDMI
PCB INPUT
PCB VIDEO
Insulation sheet
Ground lead
Ground lead
3
4
5
6
7
8
PCB HDMI
Insulation sheet
Insulation sheet
PCB FRONT CNT
PCB HDMI
PCB SIDE CNT
1
2
9
1
1
10
PCB HDMI
PCB VIDEO
Insulation sheet
PCB FRONT CNT
47
49
Table of Contents
Safety Precautions
2
Leakage Current Check
2
Note for Schematic Diagram
3
Note for Parts List
3
Specifications
4
Audio Section
4
Video Section
4
Before the Digital P.W.B. Are Replaced
5
Initializing AV Surround Receiver
5
Service Jigs
5
Disassembly
6
About the Photos Used for Descriptions in the Disassembly Section
7
Front Panel Assy
8
Heat Sink Assy
9
PCB Reg CNT/PCB Reg
11
HDMI Unit Assy
12
Trans Main
14
Special Mode Setting Button
15
Μcom/Dsp Version Display Mode
16
Operation Specifications
16
Display Order
16
Error Display
18
Errors Checking Mode (Displaying the Protection History)
19
About the Display on the FL Display
19
Clearing the Protection History
20
Warning Indication by the Power LED
20
Diagnostic Mode
21
Video System Confirmation Items
21
Audio System Confirmation Items
23
Video Block Diagram
26
Audio Block Diagram
32
VCC Diagram
45
Jig for Servicing
47
Connection of PCB HDMI JIG
47
Connection Table of Board to Board
49
About Replace the Microprocessor with a New One
50
Version Upgrade Procedure of Firmware
50
Check for Update and Update
50
Cautions on Firmware Update
51
About the Error Code
51
Device Display When Firmware Updated
56
Surround Modes and Parameters
57
Audio Section Adjustments
61
Idling Current Adjustment
61
Power Troubles
62
Power Not Turn on
62
Fuse Is Blown
62
Trouble Shooting
62
Analog Video
63
I2C Communication Waveforms
67
HDMI/DVI Troubles
68
No Picture or Sound Is Output
68
HDMI Test Point and Waveforms
73
Check the Voltage (Red)
74
Check the Wave Form (Blue)
74
Ddc_Clk/Ddc_Data/Tmds
75
Inputde/Inputvsn/Inputhsn/Inputvclk
75
Voutde/Voutvs/Vouths/Voutclk0
76
Hrde/Hrvsync/Hrhsync/Hrpck
77
1Txde/1Txvsync/1Txhsync/1Txpck
78
Audio Troubles
79
Audio Check
79
Power AMP
80
Analog Audio
81
Network/Usb Troubles
82
Cannot Connect to Network
82
USB Device Is Not Recognized
83
Clock Flow and Wave Form in Digital Block
85
Level Diagram
86
Printed Wiring Boards
92
Schematic Diagrams
109
Wiring Diagram
146
Exploded View
147
Parts List of Exploded View
148
Packing View
151
Parts List of Packing and Accessories
152
Semiconductors
153
IC's
153
Terminal Functions
154
R5F3650Knfb (Hdmi: U5500)
157
R5F3650KNFB Terminal Functions
158
Adv3002Bstz (Hdmi: U1002)
160
Ad8195Acpz (Hdmi: U1)
161
Block Diagram
162
Adv7511Bstz (Hdmi: U1801)
163
Functional Block Diagram
163
Is42S32200E6Tl (Hdmi : U1602)
164
IS42S32200E6TL Block Diagram
164
IS42S32200E6TL Terminal Function
165
Lc89058W-E (Hdmi : U2805,U2806,U2807)
166
LC89058W-E Block Diagram
167
Adsp21367Kswz2A (Hdmi: U3200)
168
ADSP21367KSWZ2A Terminal Function
168
W9864G2IH-6 (HDMI: U3201) - Pin Configuration
169
W9864G2IH-6 Block Diagram
170
W9864G2IH-6 Pin Description
171
En29Lv160Bb (Hdmi: U3202,U5101)
172
EN29LV160BB Block Diagram
172
Ak4424Et (Hdmi: U3800,U3801)
173
AK4424ET Block Diagram
173
Ak5358Bet (Hdmi: U3802)
174
AK5358BET Pin Function
174
Ak4358Vq (Hdmi: U3803)
175
AK4358VQ Pin Function
175
Hy27Uf081G2A-Tpcb (Hdmi: 3901)
177
HY27UF081G2A-TPCB Pin Function
177
HY27UF081G2A-TPCB Block Diagram
178
W9825G6Eh-6J (Hdmi: U3902)
179
W9825G6EH-6J Block Diagram
179
W9825G6EH-6J Pin Description
180
Lan8700 (Hdmi: U4202)
181
LAN8700 Block Diagram
181
LAN8700 Pin Description
182
Sa7121 (Hdmi: U4203)
183
SA7121 Block Diagram
183
SA7121 Pin Description
184
R2A15220Fp (Audio: Ic3003)
185
R2A15220FP Pin Function
186
Njw1194A (Audio: Ic3007,Ic3011)
187
Fl Display
188
FLD (19-ST-03GINK) (Front: FL601)
188
Anode Connection
189
Parts List of PCB Units
190
PCB 7CH_AMP ASS'Y Parts List
190
PCB SPK ASS'Y D Parts List
194
PCB REG_CNT ASS'Y Parts List
197
PCB FRONT ASS'Y Parts List
199
PCB VIDEO ASS'Y Parts List
202
PCB AUDIO ASS'Y Parts List
204
PCB HDMI ASS'Y Parts List
208
