Denon AVR-3312 Getting Started

2
ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

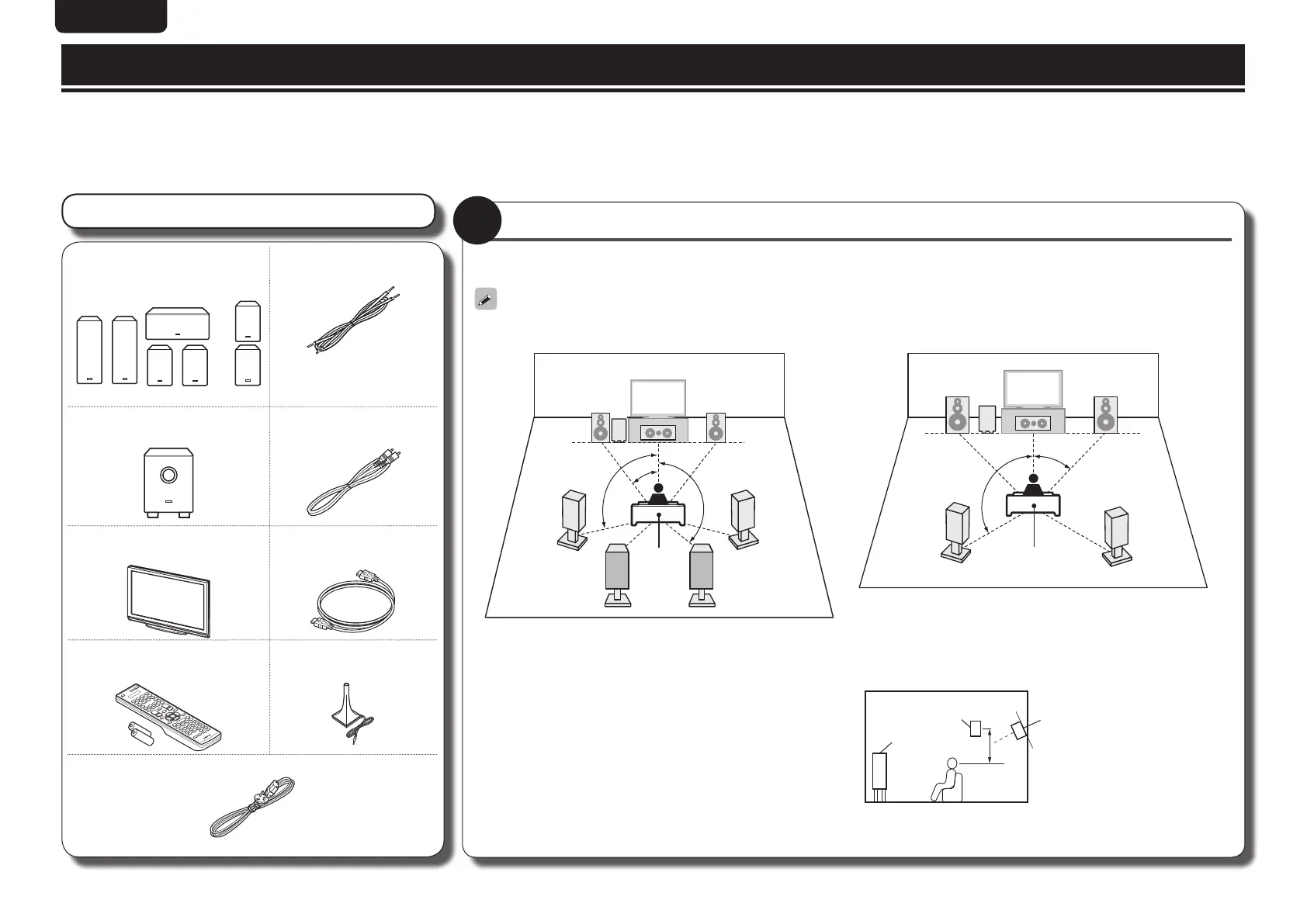

What you need for this step
Speaker
(sold separately)
Speaker cable
(sold separately)
FL FR
SL
SBL
SR
C
SBR
•Prepare enough for the
number of speakers you
will use.
Subwoofer (with built-in amplifier)
(sold separately)
Audio cable
(sold separately)
TV
(sold separately)
HDMI cable
(sold separately)
Remote control unit /
R6/AA batteries (supplied)
Setup microphone
(supplied)
Power cord (supplied)
Place and layout speakers
Before installing the speakers, connect the speaker cables to the speakers. For details on how to connect the speaker cables, see the
speaker instruction manual.
Connect the speaker cables to the main unit using the Setup Wizard.
n When 7.1-channel (Surround back speaker) installed
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
n When 5.1-channel installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
FL Front speaker (L) •Install the surround speakers in a position 60 to 90 cm higher than ear level.
Surround back speaker
(When 7.1-channel installed)
•Point slightly downwards
Front
speaker
Surround
speaker
60 – 90 cm
GViewed from the sideH
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
SBL Surround back speaker (L)
SBR Surround back speaker (R)
1
This section describes how to prepare the Setup Wizard before use.
nDo not plug the power plug of the main unit into the wall socket until these preparations are complete.
nSpeaker connections are performed using the Setup Wizard. Do not connect the speakers yet.
Preparing the Setup Wizard

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
