1
1

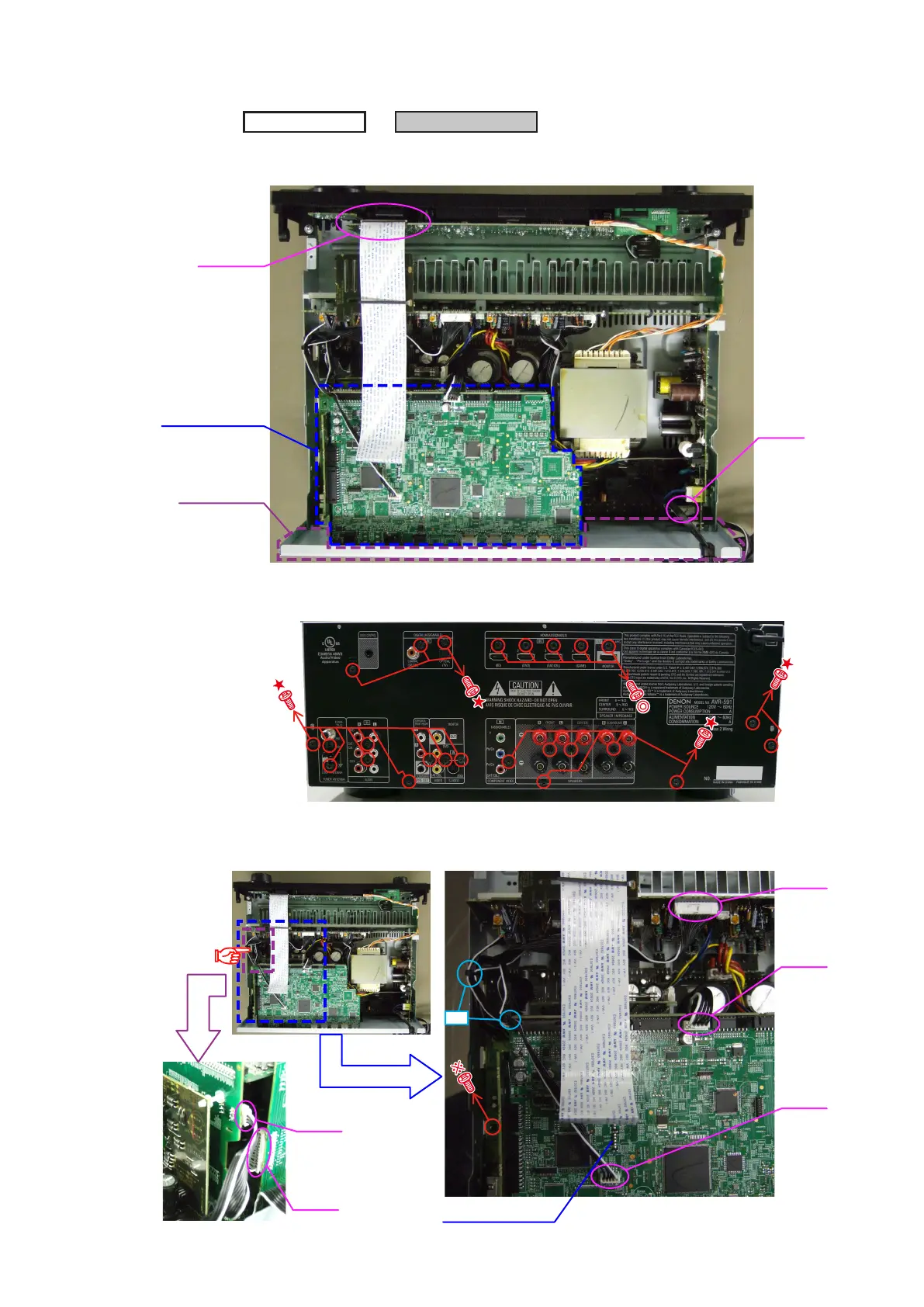

4.
HDMI UNIT ASSY
(1)
DisconnecttheconnectorwireandFFCcable.
(2)
Removethescrews,thenremovetheBACKP
ANEL.
(3)
Cutthewireclampband,thendisconnecttheandconnectorwires.Removethescrew
.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
BACK P
ANEL
HDMI UNIT
ASSY
CX100
FFC cable
Direction of photograph:
A
CP401
N2501
N2706
HDMI UNIT
ASSY
cut
CP13B
CP13A
10
12
Table of Contents
AVR-591
1
SAFETY
2
NOTE FOR SCHEMATIC DIAGRAM
3
NOTE FOR PARTS LIST
3
TECHNICAL SPECIFICATIONS
4
DIMENSION
4
CAUTION IN SERVICING
5
DISASSEMBLY
6
1. FRONT PANEL ASSY
7
2. RADIATOR ASSY
8
3. PCB REG CNT/PCB REG
10
4. HDMI UNIT ASSY
11
5. PCB SPK/PCB SMPS
13
6. TRANS MAIN
15
SPECIAL MODE
16
1. μcom/DSP Version display mode
17
2. Errors checking mode (Displaying the protection history)
18
JIG FOR SERVICING
20
ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE
22
VERSION UPGRADE PROCEDURE OF FIRMWARE
22
SURROUND MODES AND PARAMETERS
27
ADJUSTMENT
31
TROUBLE SHOOTING
32
1. POWER
32
2. Analog video
33
3. HDMI/DVI
37
4. AUDIO
43
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
47
BLOCK DIAGRAM
48
LAEVEL DIAGRAM
51
PRINTED WIRING BOARDS
57
SCHEMATIC DIAGRAMS
69
WIRING DIAGRAM
93
EXPLODED VIEW
94
PARTS LIST OF EXPLODED VIEW
95
PACKING VIEW
96
PARTS LIST OF PACKING & ACCESSORIES
96
SEMICONDUCTORS
97
1. IC's
97
2. FL DISPLAY
118
PARTS LIST OF P.C.B. UNIT
120
PCB 5CH_AMP ASS'Y
120
PCB SPK ASS'Y
124
PCB REG_CNT ASS'Y
127
PCB FRONT ASS'Y
129
PCB AUDIO_VIDEO ASS'Y
132
PCB HDMI ASS'Y
135
