69
ENGLISH
Basic version Advanced versionSimple version Information

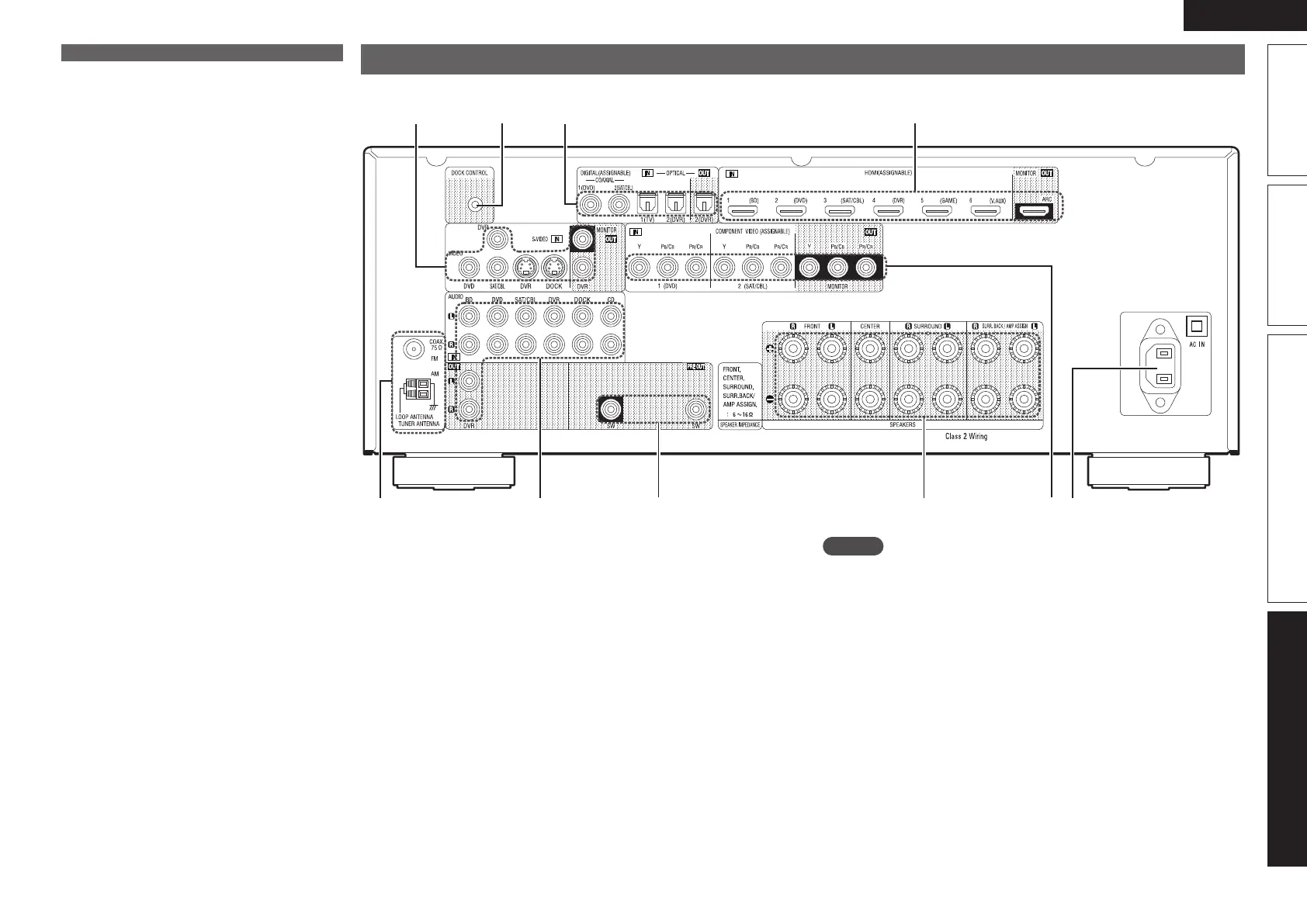

Rear panel
See the page indicated in parentheses ( ).
q w e tr
uio
Q0
y
q FM/AM antenna terminals ····················································· (19)
w Analog audio connectors ·················································(16 – 19)
e PRE OUT connector ······················································(5, 31 – 33)
r Speaker terminals ························································(5, 31 – 33)
t COMPONENT VIDEO connectors ····································· (15, 16)
y AC inlet (AC IN) ·········································································· (5)
u HDMI connectors ····································································· (14)
i Digital audio connectors ··················································(15 – 17)
o DOCK CONTROL jack ······························································ (18)
Q0 S-VIDEO/VIDEO connectors ············································(15 – 18)
NOTE
• Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
• Do not put your finger or foreign object in the fan opening. Doing so
could cause injury or unit failure.
Q6 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
STEREO : In the FM mode, this light when
receiving analog stereo broadcasts.
TUNED : Lights when the broadcast is properly
tuned in.
AUTO : This light when in the auto tuning mode.
Q7 Recording output source indicator
This lights when the REC OUT mode is selected.
Q8 Decoder indicators
These light when the respective decoders are
operating.
Display
