Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
q
w
e
r
t
y
u
i
o
Q0
Q1
Q2
Q3
Q4
Q5
W1
W3
W4
W0
W2
Q9
Q8
Q7
Q6
W7
W5
W6

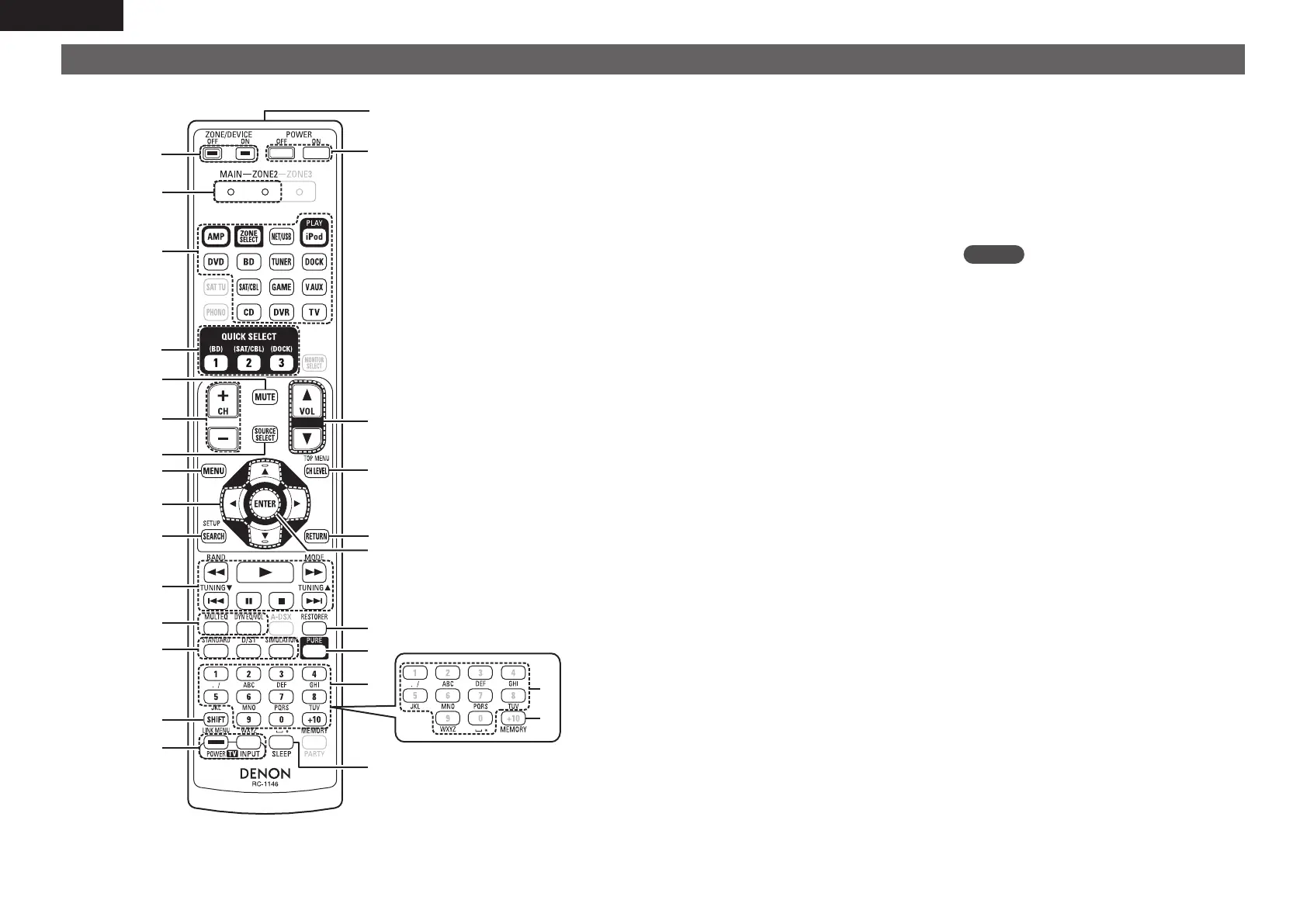

q ZONE/DEVICE power buttons ············ (40, 63)
w Zone mode indicators ·························· (40, 63)
e Input source select buttons ················· (20, 40)
r QUICK SELECT buttons ······················· (38, 40)
t Muting button (MUTE) ························ (20, 40)
y Channel buttons (CH) ··························· (24, 66)
u SOURCE SELECT button ····················· (20, 40)
i MENU button ·············································· (44)
o Cursor buttons (uio p) ·················· (42 – 44)
Q0 SEARCH button ···································· (21, 44)
Q1 System buttons ···························· (21 – 25, 66)
• Skip button (8, 9)
• Play button (1)
• Search button (6, 7)
• Pause button (3)
• Stop button (2)
Tuner system buttons ································ (24)
• FM/AM band switching button (BAND)
• Tuning mode button (MODE)
• Tuning down / Tuning up button (TUNING df)
Q2 Audyssey buttons ································ (52, 59)
• MULTEQ
®
button
• Dynamic EQ
®
/Dynamic Volume™ button
(DYN EQ/VOL)
Q3 Surround mode buttons ······················ (26, 28)
• STANDARD button
• Direct / Stereo button (D/ST)
• DSP simulation button (SIMULATION)
Q4 SHIFT button ········································· (24, 43)
Q5 TV operation buttons
(TV POWER / INPUT) ································· (66)
Q6 Remote control signal transmitter ··········· (71)
Q7 Power buttons (POWER ON / OFF) ······ (6, 11)
Q8 Master volume control buttons (VOL) ····· (20)
Q9 Channel level button (CH LEVEL) ············· (37)
W0 RETURN button ·········································· (44)
W1 ENTER button ····································· (42 – 44)
W2 RESTORER button ······································ (54)
W3 Pure direct button (PURE) ························· (28)
W4 Number buttons ····························· (24, 65, 66)
W5 Character buttons ······································ (43)
W6 MEMORY button ········································ (24)
W7 Sleep timer button (SLEEP) ······················· (37)
NOTE
• NET/USB switches to the source of an iPod or
USB memory device connected via the USB port
of this unit. For network connection of this unit,
connect a control dock for iPod ASD-3N/ASD-3W/
ASD-51N/ASD-51W (sold separately) to this unit
to use the network function of the control dock
for iPod.
• The SAT TU, PHONO, MONITOR SELECT, A-DSX
and PARTY buttons cannot be used.
