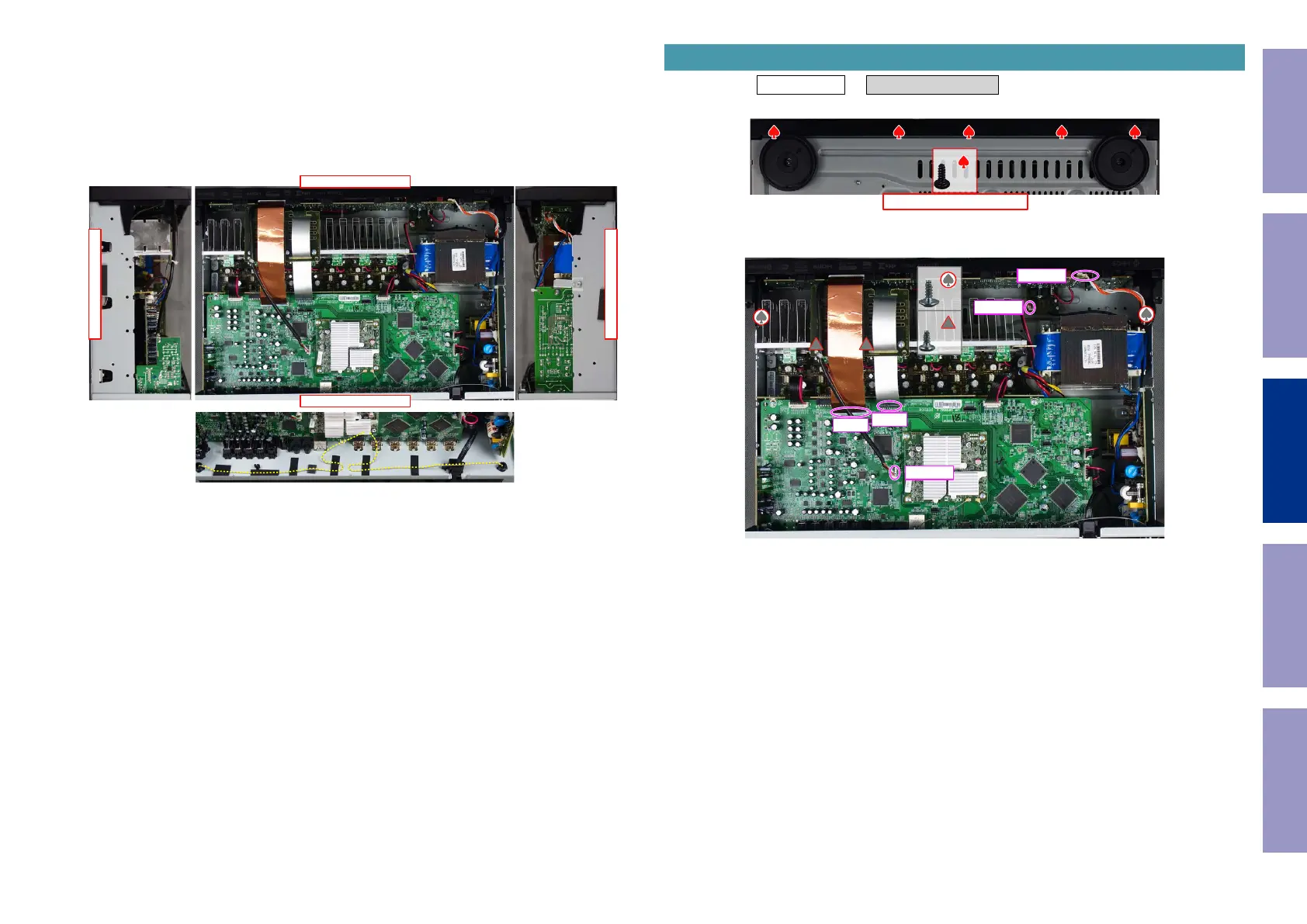

Explanatory Photos for DISASSEMBLY
• For the shooting direction of each photos used in this manual, see the photo below.
• A, B, C and D in the photo below indicate the shooting directions of photos.
• The photographs with no shooting direction indicated were taken from the top of the unit.
• Photos of AVR-S740H E3 are used in this manual.
The viewpoint of each photograph
(Shooting direction : X) [View from the top]
↓Shooting direction: C↓
↑Shooting direction: D↑
↑Shooting direction: A↑
↓Shooting direction: B↓
Proceeding : TOP COVER → FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the connector. Remove the FFC.
1. FRONT PANEL ASSY
View from the bottom
x5
x2
x2
CN102
CN104
FFC
FFC
CN813
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
66
To Next Page
