14

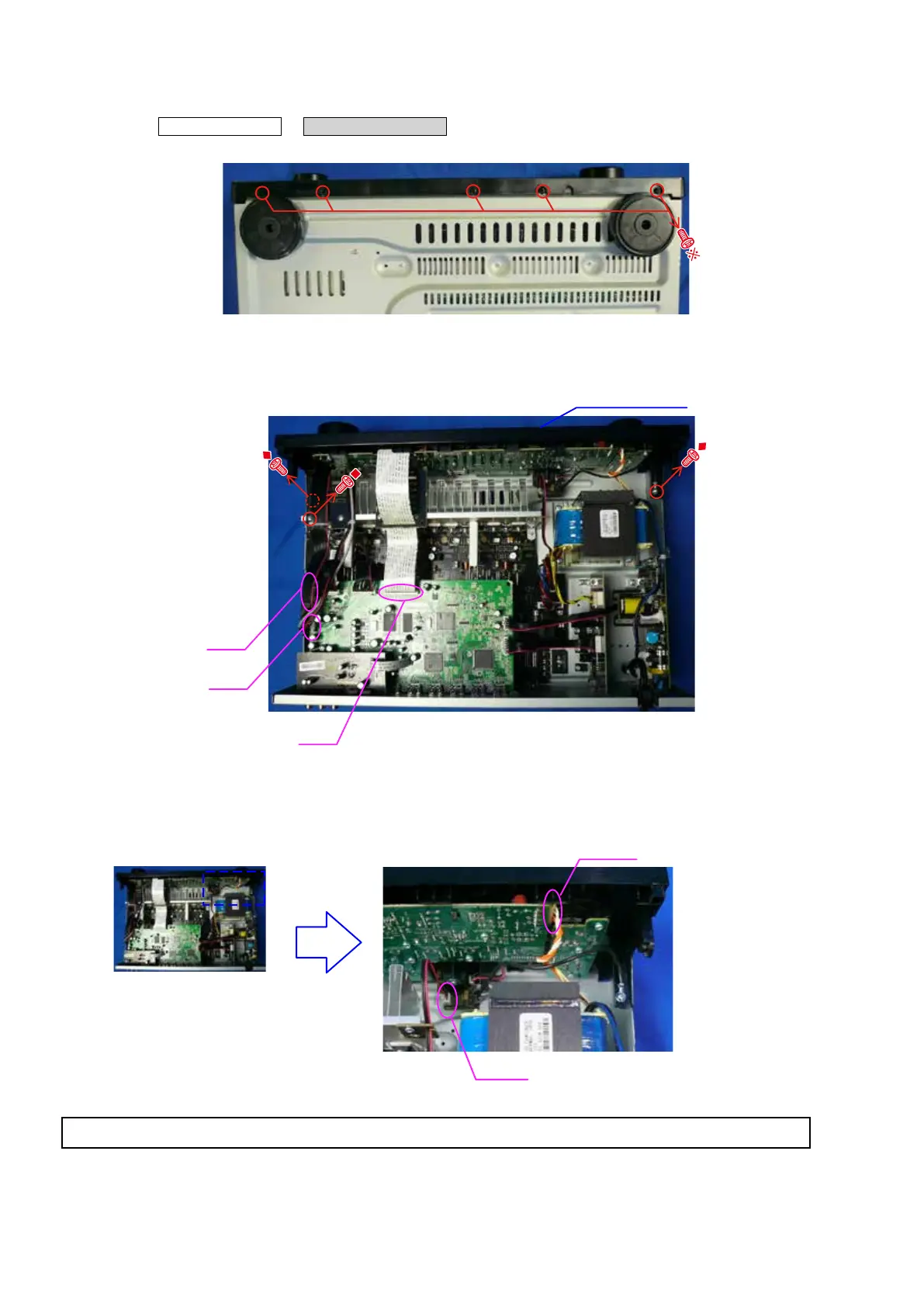

1.
FRONT
P
ANEL ASSY
Proceeding :
CABINET TOP
→
FRONT
P
ANEL ASSY
(1)
Remove the screws.
(2)
Remove the screws and disconnect the FFC.
(3)
Disconnect the connector wires.
View from the bottom
FFC
CN713
CN752
FRONT
P
ANEL ASSY
CN102
CN104
See "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT P
ANEL
ASSY
.
13
15
Table of Contents
Default Chapter
2
Table of Contents
2
About this Manual
3
What You Can Do with this Manual
3
Using Adobe Reader (Windows Version)
4
Safety Precautions
6
Note for Schematic Diagram
7
Note for Parts List
7
TECHNICAL SPECIFICATIONS for AVR-S500BT
9
Dimension
9
TECHNICAL SPECIFICATIONS for AVR-X510BT
10
Dimension
10
Precautions During Service
11
Initializing this Unit
11
Disassembly
12
Front Panel Assy
14
Digital Pcb
15
Radiator Assy
16
Smps Pcb
17
Regulator Pcb
17
Trans Power
17
Special Mode
18
Special Mode Setting Button
18
Initialization Mode
20
Version Display Mode
20
Change Video Format and Display Language Mode
21
Product Mode
22
Procedure after Replacing the Microprocessor, Etc
26
Firmware Update Procedure
26
Updating by USB
26
Adjustment
30
Trouble Shooting
33
Power
33
Analog Video
34
Hdmi/DVI
35
Audio
40
Bluetooth
42
Smps
43
Clock Flow & Wave Form in Digital Block
46
Analog Audio Block Diagram
47
Digital Audio/Hdmi Block Diagram
48
Video Block Diagram
49
Power Block Diagram
50
Level Diagram
51
Wiring Diagram
55
Printed Wiring Boards
56
Front
56
Digital
59
Front Cable Guide
61
Smps
61
Regulator
63
Tuner
64
Video
64
Phone Wire Guide
64
Standby
64
Phone
64
Usb & MIC
64
(A Side)
64
Schematic Diagrams (1/12)
65
Mcu
65
Hdmi Osd
66
Hdmi 4K
67
Dsp
68
Digital Power
69
Input Volume
70
Usb Bt
71
Video Optical
72
Main
73
Front
74
Regulator
75
Smps
76
Exploded View Avr-S500Bt
78
Exploded View Avr-X510Bt
79
Packing View Avr-S500Bt
80
Packing View Avr-X510Bt
81
Semiconductors
82
IC's
82
Fl Display
108
