3. RADIATOR ASSY
Proceeding : TOP COVER
→
DIGITAL PCB
→
RADIATOR ASSY

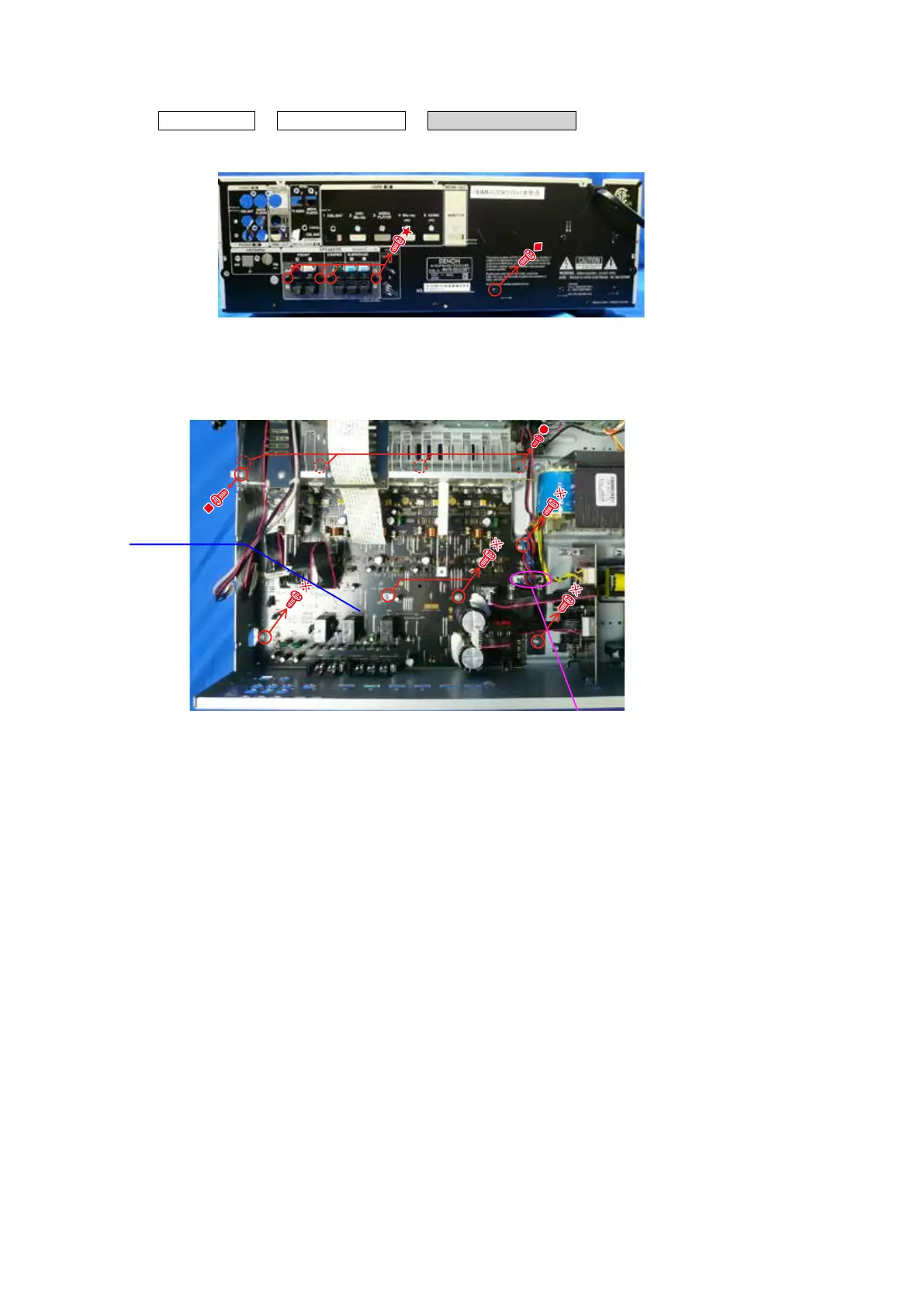

(1) Remove the screws.
(2) Remove the screws then disconnect the connector wire.
Remove the RADIATOR ASSY from the CHASSIS BOTTOM.
Shooting direction: A
CN503
MAIN PCB
